Axing TVS00801 Antenna splitter 2-way
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 23.99 / piece)
€ 23.99
incl. VAT
14-day return policy included
Highlights & Details

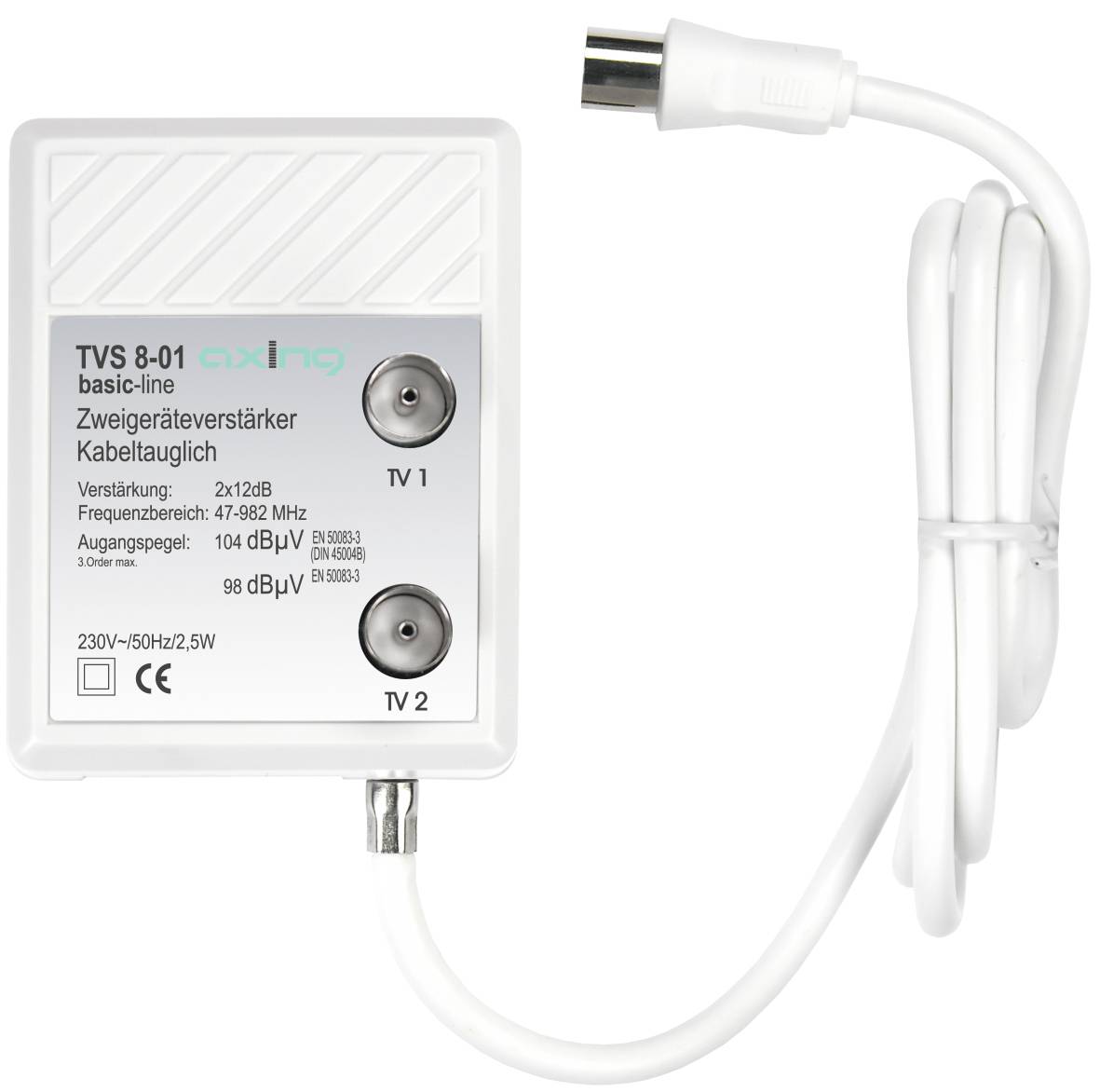

Axing TVS 8-01 silver

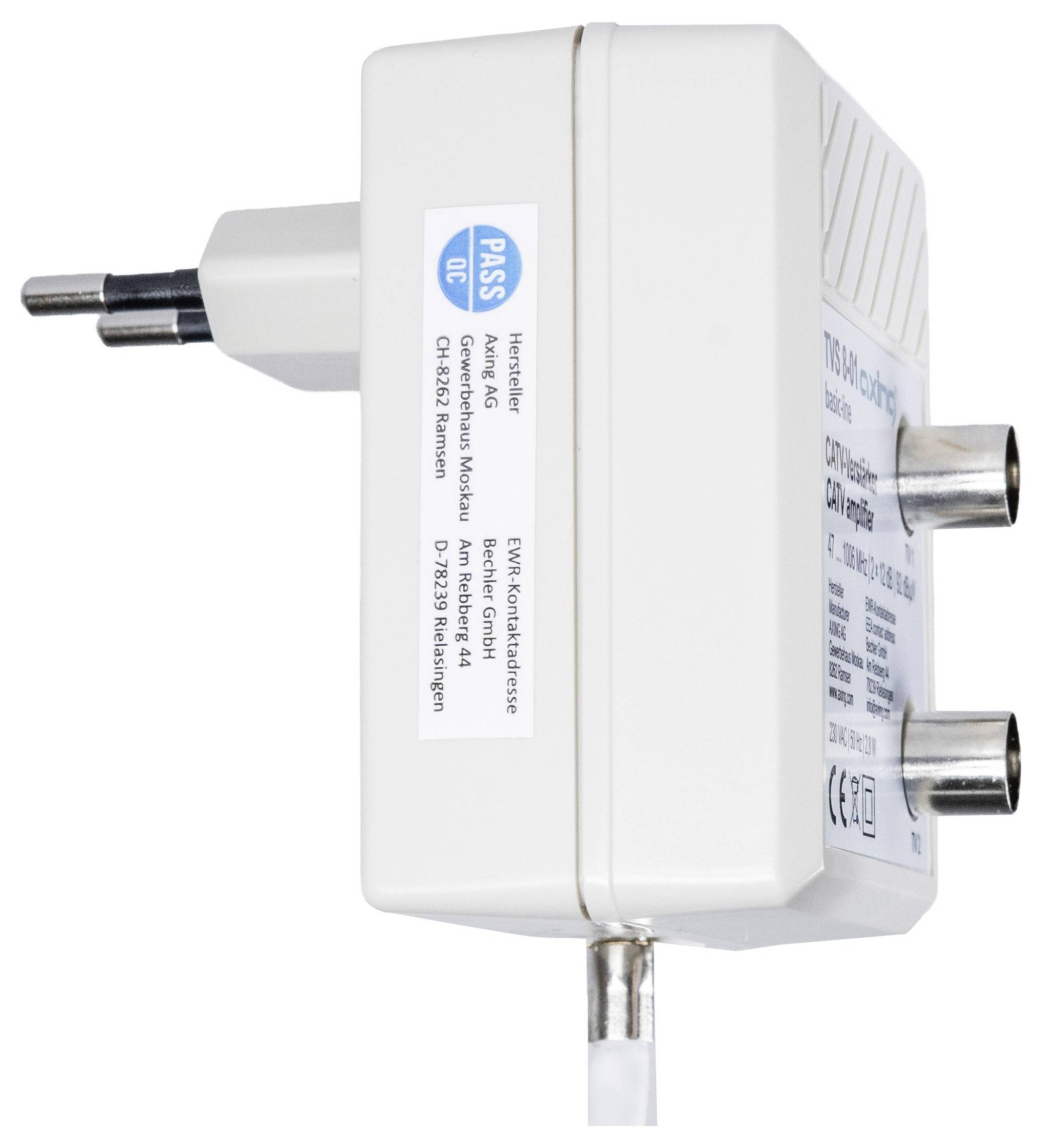

- The TVS 8-01 is placed directly on the power outlet and connects via the integrated coaxial cable (connection: Coaxial socket) with your antenna or multimedia plug socket.
- Amplification: With 2 x 12 dB amplification and a maximum output level of 92 dBµV the amplifier compensates the signal losses of up to 50 meters cable. 2 coaxial cables with coaxial sockets can be plugged onto the two connections (2 x coaxial plugs).
- Versatile use: Supports cable television (DVB-C), FM-radio, DAB+ digital radio and DVB-T / DVB-T2, including HDTV
- Compact design: With the compact dimensions of only 6 x 9 x 9 cm the amplifier fits in every environment without any problem. The splitter for 2 devices is already integrated.
Technical specifications
- 0,047 - 0,826 GHz
- Product type
Antenna splitter
- Participants
2
- No. of outputs
2 x
- Frequency range
47-862 MHz
- Dim
(L x W x H) 90 x 60 x 90 mm
- Weight
230 g
- No. of inputs
1 x
- Type
2-way
- Width
60 mm
- Height
90 mm
- Length
90 mm
- Factory colour
Silver
- Power consumption (ON)
2.5 W
- UKCA
yes
- Dimensions (WxDxH)
60 x 90 x 90 mm
Documents & Downloads
Datasheet
Datasheet 3779559 Axing TVS00801 Antenna splitter 2-way
User & Safety Instructions
User & Safety Instructions 3779559 Axing TVS00801 Antenna splitter 2-way
Description
- 2-way, 3-way distribution
For small BK and terrestrial networks
- TVS 21-00 for plugging in to antenna sockets of all types
This text is machine translated.
For small BK and terrestrial networks
- TVS 21-00 for plugging in to antenna sockets of all types
This text is machine translated.
Features
- Frequency range 47 - 862 MHz
- This cable TV amplifier is designed for continuous operation and does not need an on/off switch.
- The power consumption is 2.8 W.
