Name: Axing TZU 4 Attenuator
Brand: Axing
SKU: 280178
Availability: InStock

'Attenuator' by Axing, Model TZU 4-00, reduces signal strength by 20 dB. Frequency range: 0.1-1000 MHz. CE-certified.

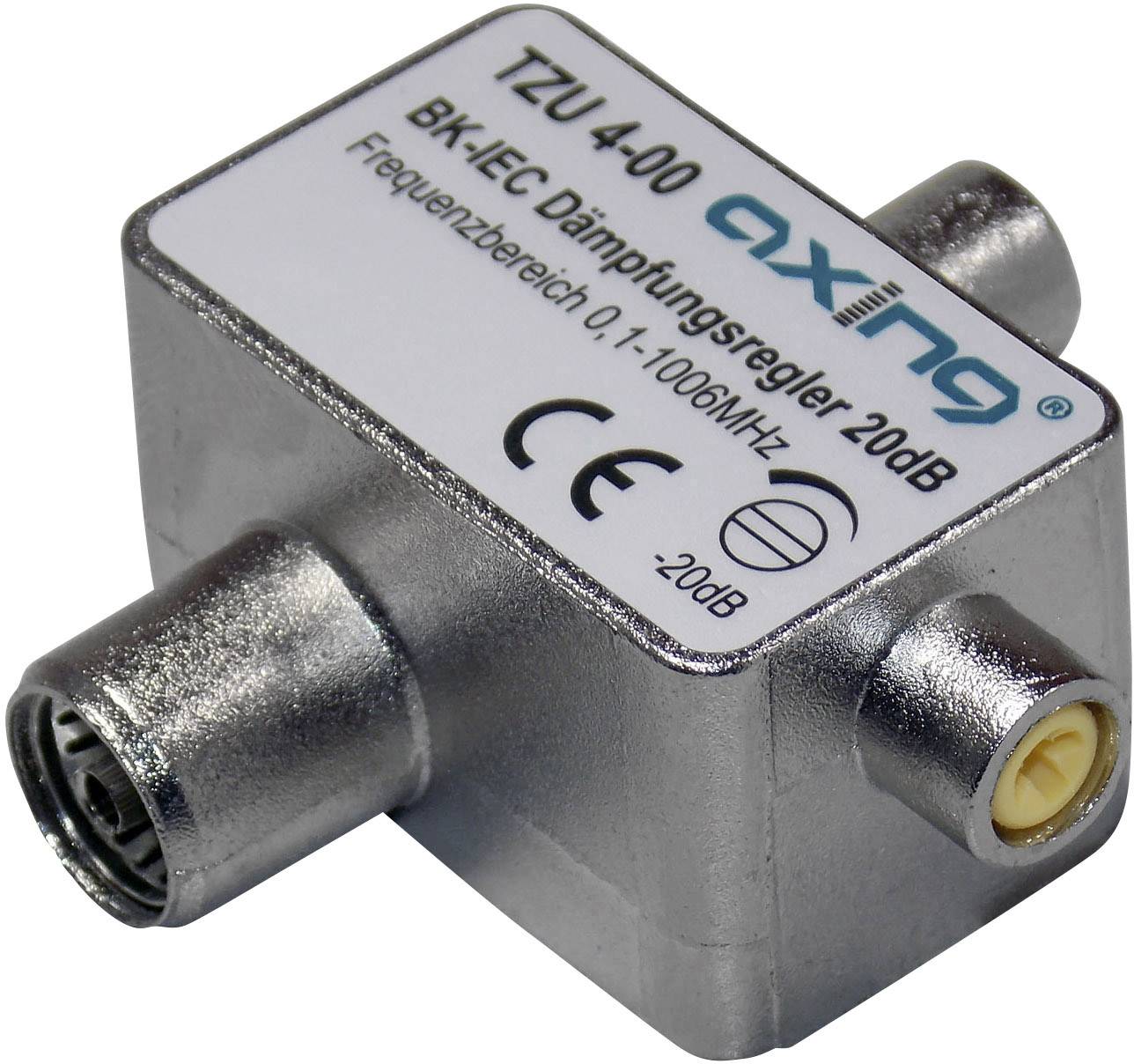

Attenuator 'Axing TZU 4-00', 20dB, for frequency range 0.1-1006MHz. Metal enclosure with connection sockets and CE marking.

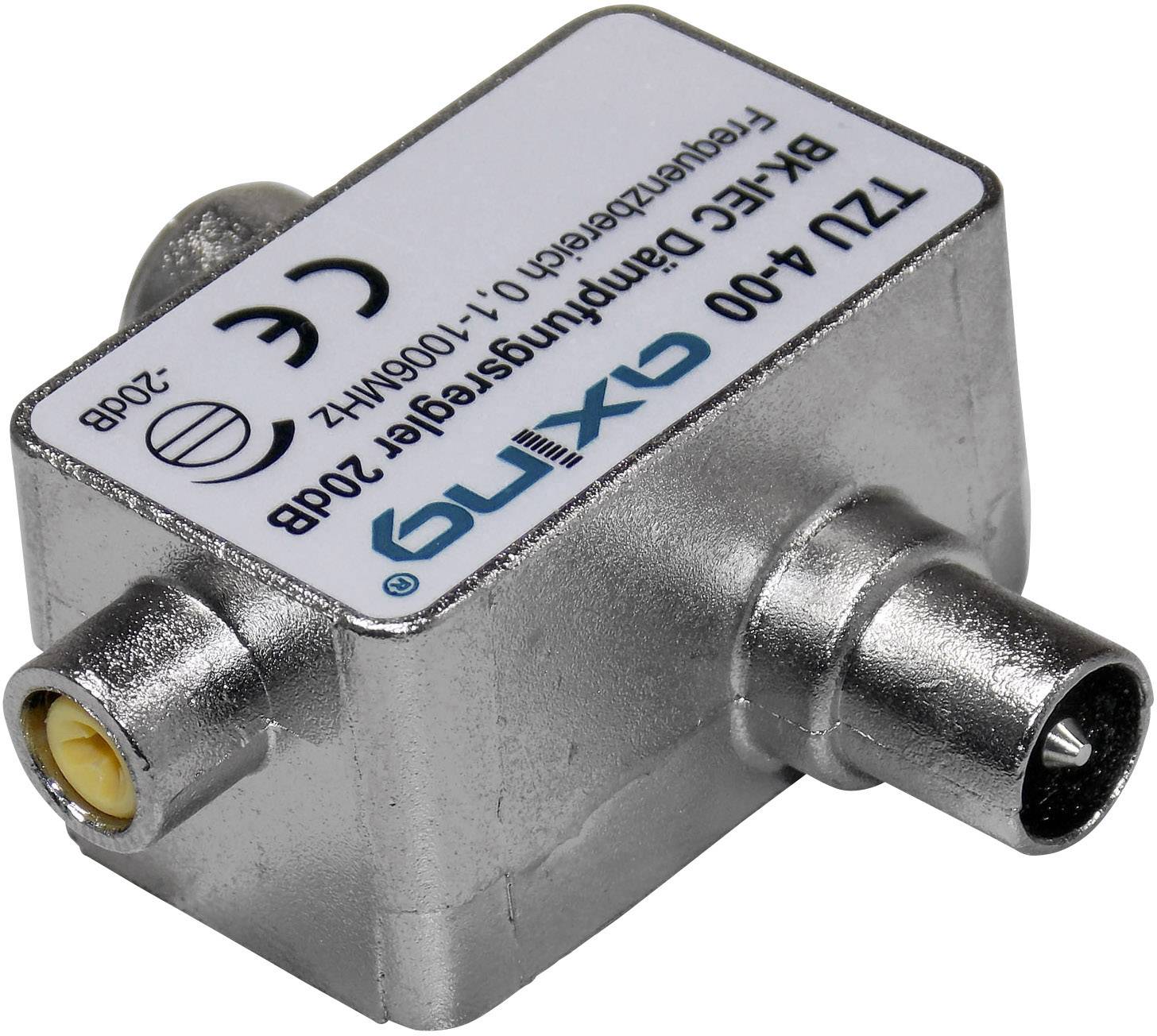

A silver Axing BK frequency compressor with two coaxial connections and a small switch on the side.

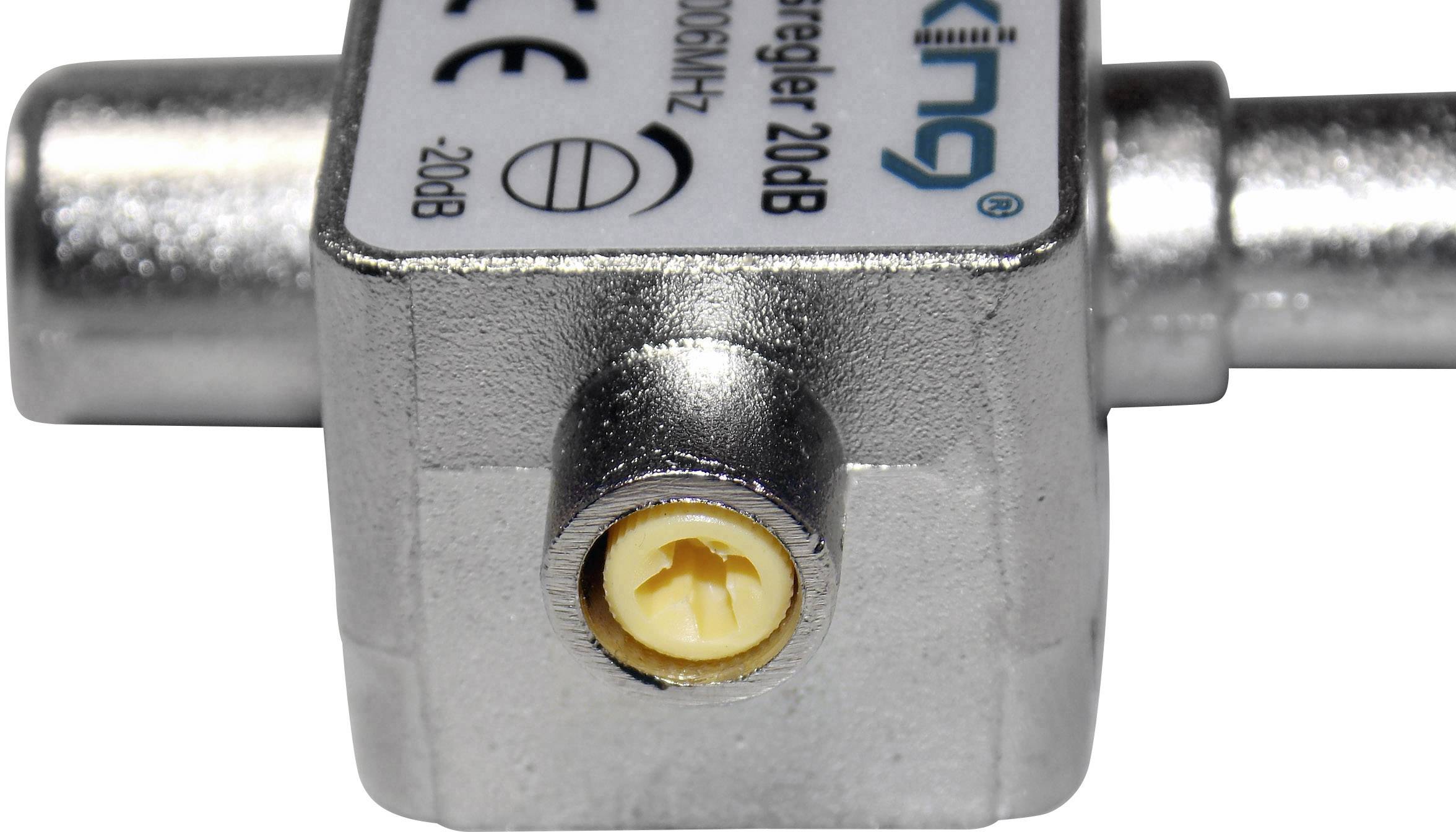

A silver, rectangular antenna amplifier with a yellow coaxial connector in the centre, marked with 'Regulator 20dB'.

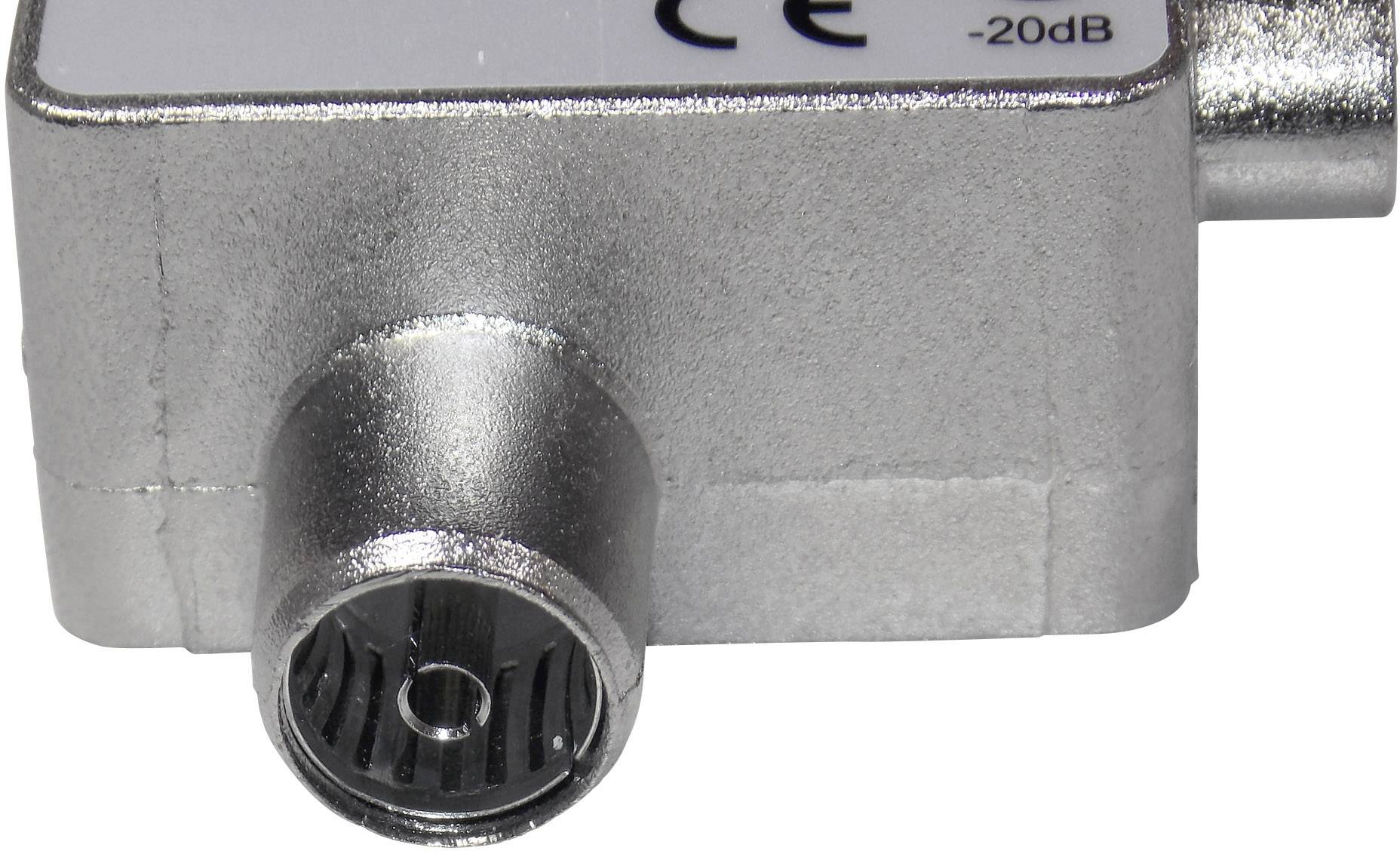

Small, silver electrical component with antenna connection and label '-20dB', used for signal amplification.

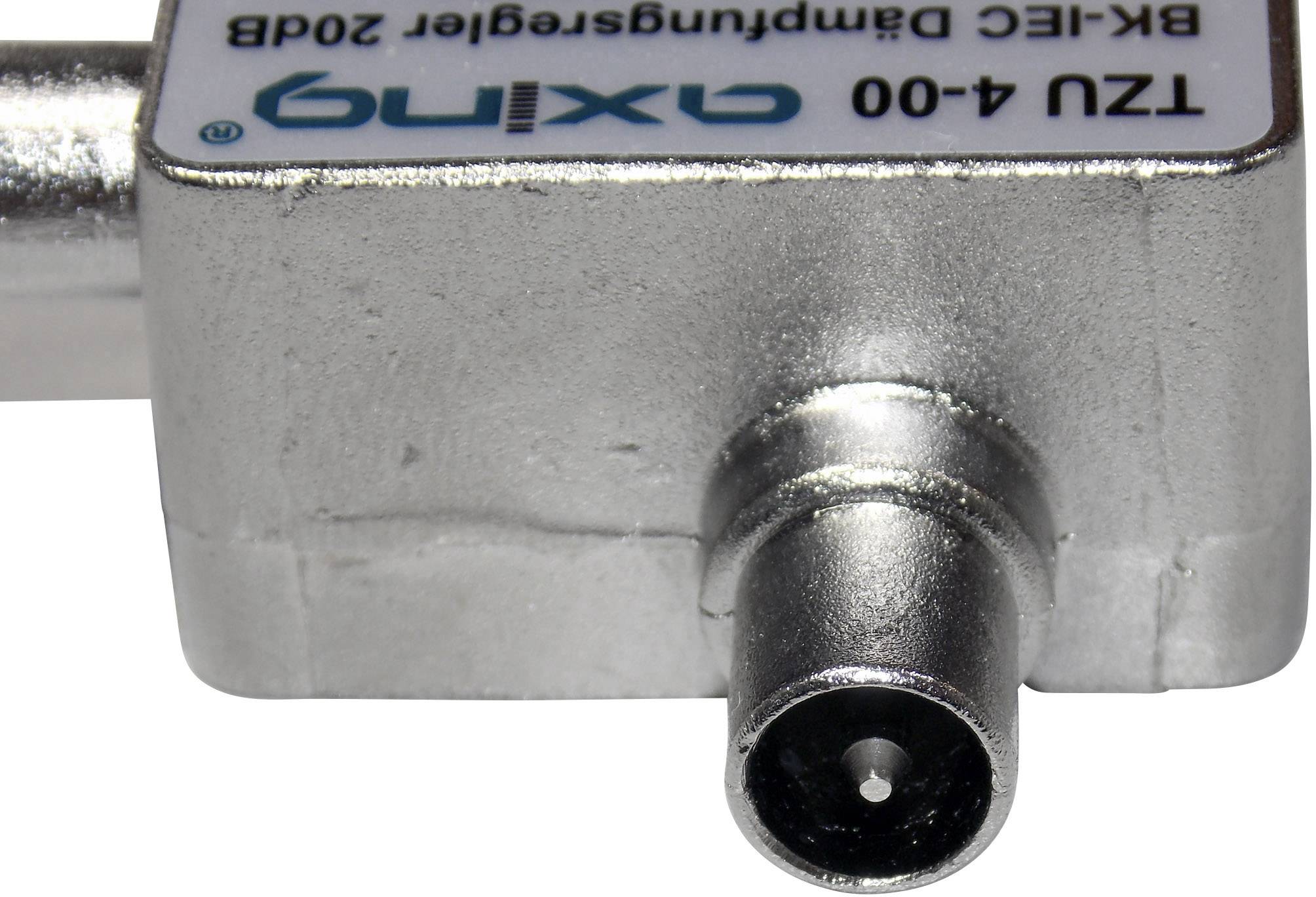

Close-up of a cylindrical plug on a silver device with the inscription 'BK-IEC Attenuator 20dB'.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

73 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Attenuation controller TZU 4

Frequency range 0.1 - 1000 MHz
Damping 0.5 - 20 dB
Fit for Class A

Technical specifications

Product type: Attenuator

Shielding rating: >75 dB

Attenuation: 5 Hz - 20 dB

Frequency range: 0.1 - 1000 MHz

Factory colour: Multicolour

Halogen-free: Yes

Connections: USB-C® plug

Connection type: Antenna

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 280178 Axing TZU 4 Attenuator

User & Safety Instructions

User & Safety Instructions 280178 Axing TZU 4 Attenuator

Description

The attenuation controller is used at the places, where a strong cable or SAT signal is present. Image distortions like still image, or strong pixellation despite very good signal are indications of a very high signal level for the receiving tuner. The attenuator is fitted with F connectors with nuts and can be installed before or after the amplifier/receiver, etc. without any adaptors.
