Buy B + B Thermo-Technik Heating element cable 0.22 mm² + 0.22 mm² Brown, White 0230 0283-21 Sold per metre | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

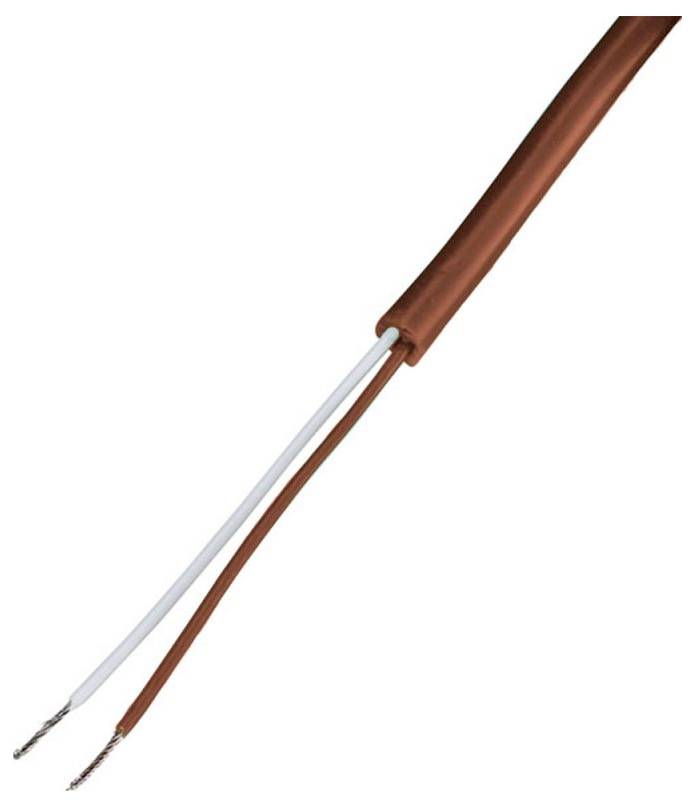

A brown speaker wire with exposed copper ends, consisting of two insulated strands, one brown and one white.

A brown speaker wire with exposed copper ends, consisting of two insulated strands, one brown and one white.

B + B Thermo-Technik

Product type

Heating element cable

Cross section (each core)

0.22 mm²

Outside Ø

3.8 mm

Content

Sold per metre

Cross section (each core) (part 2)

0.22 mm²

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

81 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (1 m = € 7.49)

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Compensation cable type T, 2 x 0.22 mm², FEP/Si

Our service for you

Technical specifications

Product type: Heating element cable

Content: Sold per metre

Cross section (each core): 0.22 mm²

Cross section (each core) (part 2): 0.22 mm²

Outside Ø: 3.8 mm

Packaged: No

Manufacturer part #: 0230 0283-21

Factory colour: Brown
White

Insulation material: FEP

Insulation: Silicone

Core layout: 7 x 0.20 mm

Max. length sold by the metre: 100 m

Sold per metre: Yes

Cross section: 0.22 mm² + 0.22 mm²

RoHS-compliant: Yes

Max. temperature range (flexible installation): +180 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (fixed installation): 180 °C

Min. temperature range (fixed installation): -40 °C

Type: Ausgleichsleitung Typ T

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3736854 B + B Thermo-Technik Heating element cable 0.22 mm² + 0.22 mm² Brown, White 0230 0283-21 Sold per metre

Description

Type T compensating cables are an important component when transmitting thermoelectrical voltage from the thermocouple to the reference junction. They are used as connecting cable between the type T-thermocouple and the reference junction. Our compensating cables are insulated with a wide range of materials and are therefore suitable for various applications. The high-quality workmanship of the materials results in reliable temperature measurements and a safe transmission of the thermoelectric voltage. The operating temperature of this compensating line is -40…+180°C.

This text is machine translated.

Description

Type T compensating cables are an important component when transmitting thermoelectrical voltage from the thermocouple to the reference junction. They are used as connecting cable between the type T-thermocouple and the reference junction. Our compensating cables are insulated with a wide range of materials and are therefore suitable for various applications. The high-quality workmanship of the materials results in reliable temperature measurements and a safe transmission of the thermoelectric voltage. The operating temperature of this compensating line is -40…+180°C.

This text is machine translated.
