Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Polyamide (PA)
- Halogen-free: Yes
- Protection class (IP) IP54
- With straight plug
- Connection technology: Screw terminal
- Suitable for earthing contact pin: Yes
- Colour, black
- RAL number: 9005
- Number of poles: 3
- Nominal voltage: 250 V
- Nominal current: 16 A
- For "difficult conditions" (according to VDE): Yes
- Product type
Safety mains socket
- Nominal voltage
250 V
- Factory colour
Black
IP54
- Type
EARTHING CONTACT
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
3
- Operating voltage
250 V
Documents & Downloads
Datasheet
Datasheet 3145150 Bals Elektrotechnik 748809 Safety mains socket 250 V Black IP54
User & Safety Instructions
User & Safety Instructions 3145150 Bals Elektrotechnik 748809 Safety mains socket 250 V Black IP54
Description

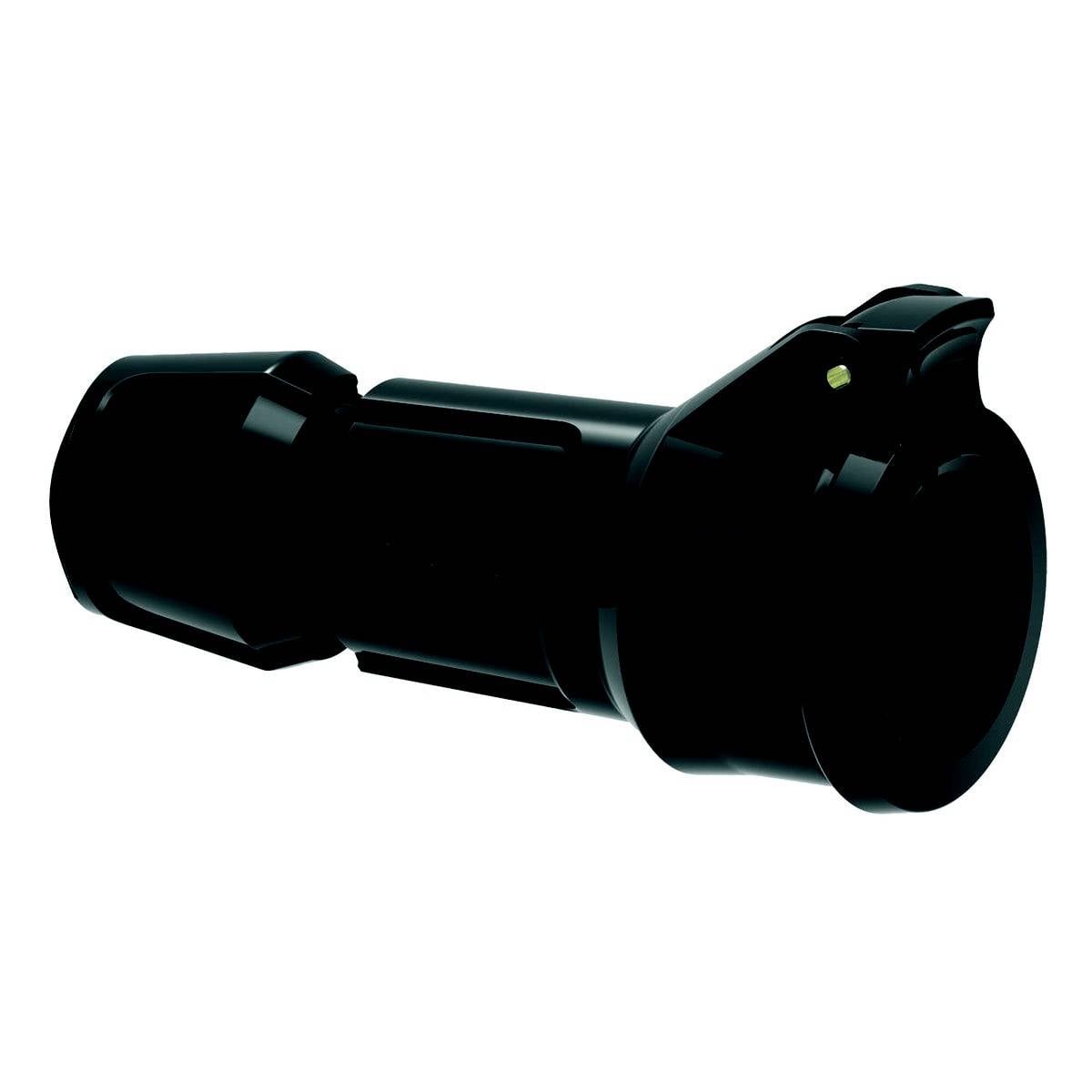

Earthing contact coupling
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
System: German System - Type F.
Colour: Collar black RAL 9005, hinged lid black RAL 9005, housing cover black RAL 9005

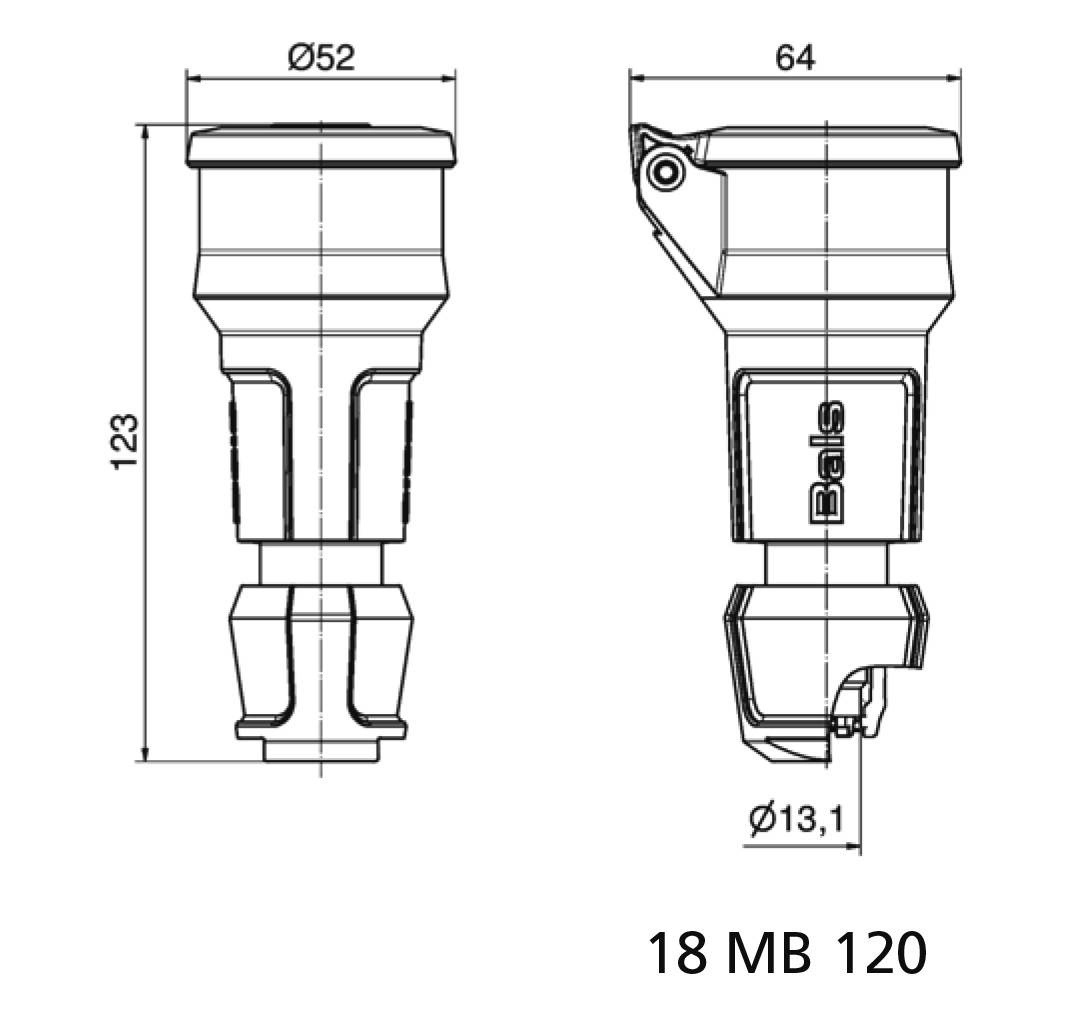

Device height: 123 mm, device width: 52 mm, device depth: 64 mm
Halogen-free: Yes
Other technical characteristics: With German system, with increased contact protection shutter, with MULTI-grip cable gland and integrated strain relief, the hinged lid is self-closing
This text is machine translated.
16A 3P (2P+PE) 250V (250V~) IP54
Frequency AC
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Cap screw terminal
Cable entry: With cable gland
System: German System - Type F.
Colour: Collar black RAL 9005, hinged lid black RAL 9005, housing cover black RAL 9005
Device height: 123 mm, device width: 52 mm, device depth: 64 mm
Halogen-free: Yes
Other technical characteristics: With German system, with increased contact protection shutter, with MULTI-grip cable gland and integrated strain relief, the hinged lid is self-closing
This text is machine translated.
