Name: Barthelme CHROMOFLEX T 3 X 2,5 A LED dimmer 97 mm 51 mm 35 mm
Brand: Barthelme
SKU: 181155
Availability: InStock

A black RGB controller with ventilation slots and green connection terminals. Label: 'CHROMOFLEX-T i350'.

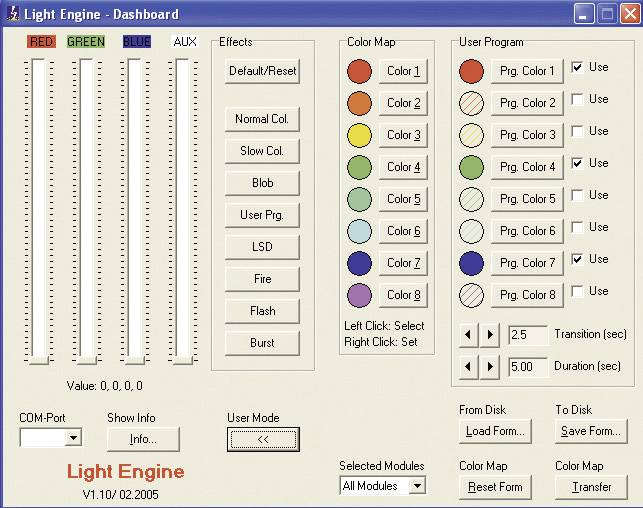

'Light Engine - Dashboard': Software interface for light control with colour settings, effects, user programmes, and module options.

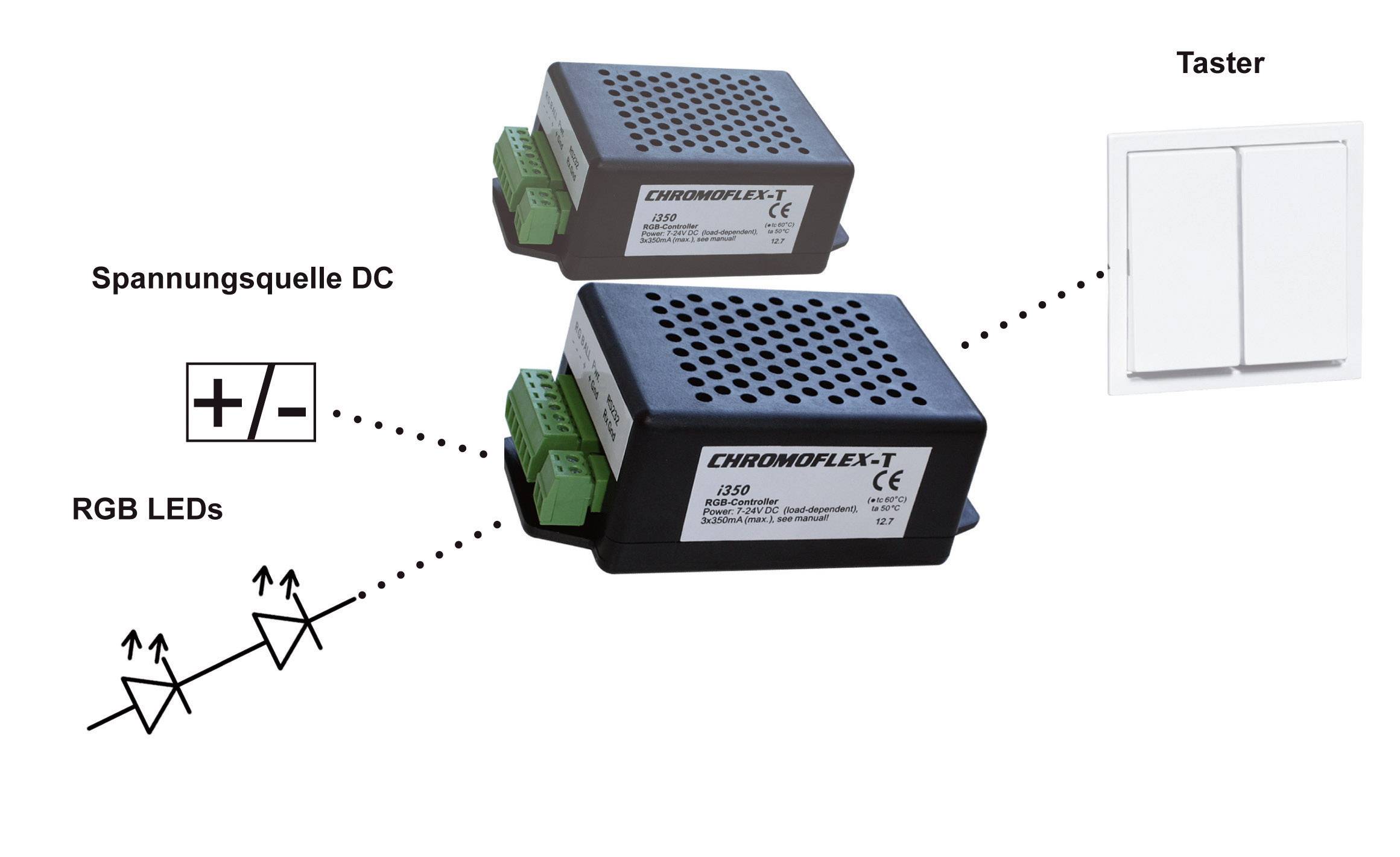

'Circuit diagram for CHROMOFLEX-T control unit: Above, control unit with DC power supply. Below, connection diagram for RGB LEDs and button.'

1/3

Image similar

Product type

LED dimmer

Min. operating voltage

7 V

Max. operating voltage

24 V

Use

RGB

Switch

Type

CHROMOFLEX T 3 X 2,5 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

28 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Barthelme CHROMOFLEX T 3 X 2,5 A LED dimmer 97 mm 51 mm 35 mm

Technical specifications

Type: CHROMOFLEX T 3 X 2,5 A

Product type: LED dimmer

Output current (typ.): 7.5 A

Min. operating voltage: 7 V

Max. operating voltage: 24 V

Channels: 3

Output signal: Voltage

Use: RGB
Switch

FM band (min.): 120 Hz

FM band (max.): 240 Hz

Factory colour: Black

Dim: (L x W x H) 97 x 51 x 35 mm

Width: 51 mm

Height: 35 mm

Length: 97 mm

RoHS-compliant: Yes

: n.rel.

Type: 66000073

Operating voltage: 7 - 24 V DC

Documents & Downloads

Datasheet

Datasheet 181155 Barthelme CHROMOFLEX T 3 X 2,5 A LED dimmer 97 mm 51 mm 35 mm

User & Safety Instructions

User & Safety Instructions 181155 Barthelme CHROMOFLEX T 3 X 2,5 A LED dimmer 97 mm 51 mm 35 mm

Download

Download 181155 Barthelme CHROMOFLEX T 3 X 2,5 A LED dimmer 97 mm 51 mm 35 mm

Description

Almost unlimited possibilities for controlling RGB LEDs on flexible and rigid boards. The 8 pre-programmed sequences as well as 20 fixed colours As whites, colour changing, flashing, burning fire, etc.) can be easily and comfortably than 2 standard buttons! Specially programmed colour program, colours or effects can be easily created via the ChromoFlex editor. An IR receiver (connected via a plug) and remote control are available as optional extras. Up to 30 control units can be networked/synchronised via your own BUS. Connection is by means of plug terminals that are included with the control unit.
