Buy Basetech LD-12-6 LED transformer Constant voltage 6 W 0.5 A Approved for use on furniture, Overvoltage, Suitable for fla

A LED driver labelled 'BASETech LED Power Supply'. Model number LD-12-6. Outputs: 12 VDC 0.5 A 6 W max. Protection type IP20.

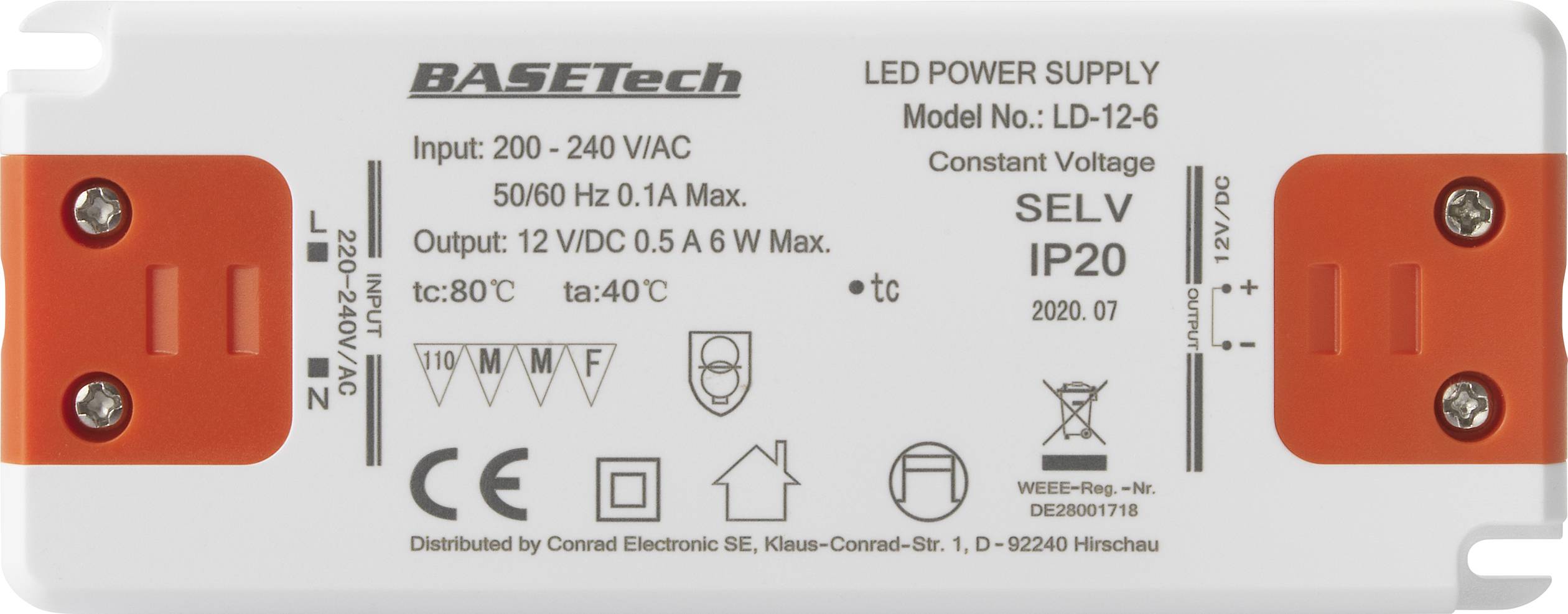

'BASETch LED Power Supply Model LD-12-6', Input: 200-240 V, Output: 12 V, Protection Class: SELV IP20, produced by 'LED Manufacturer'.

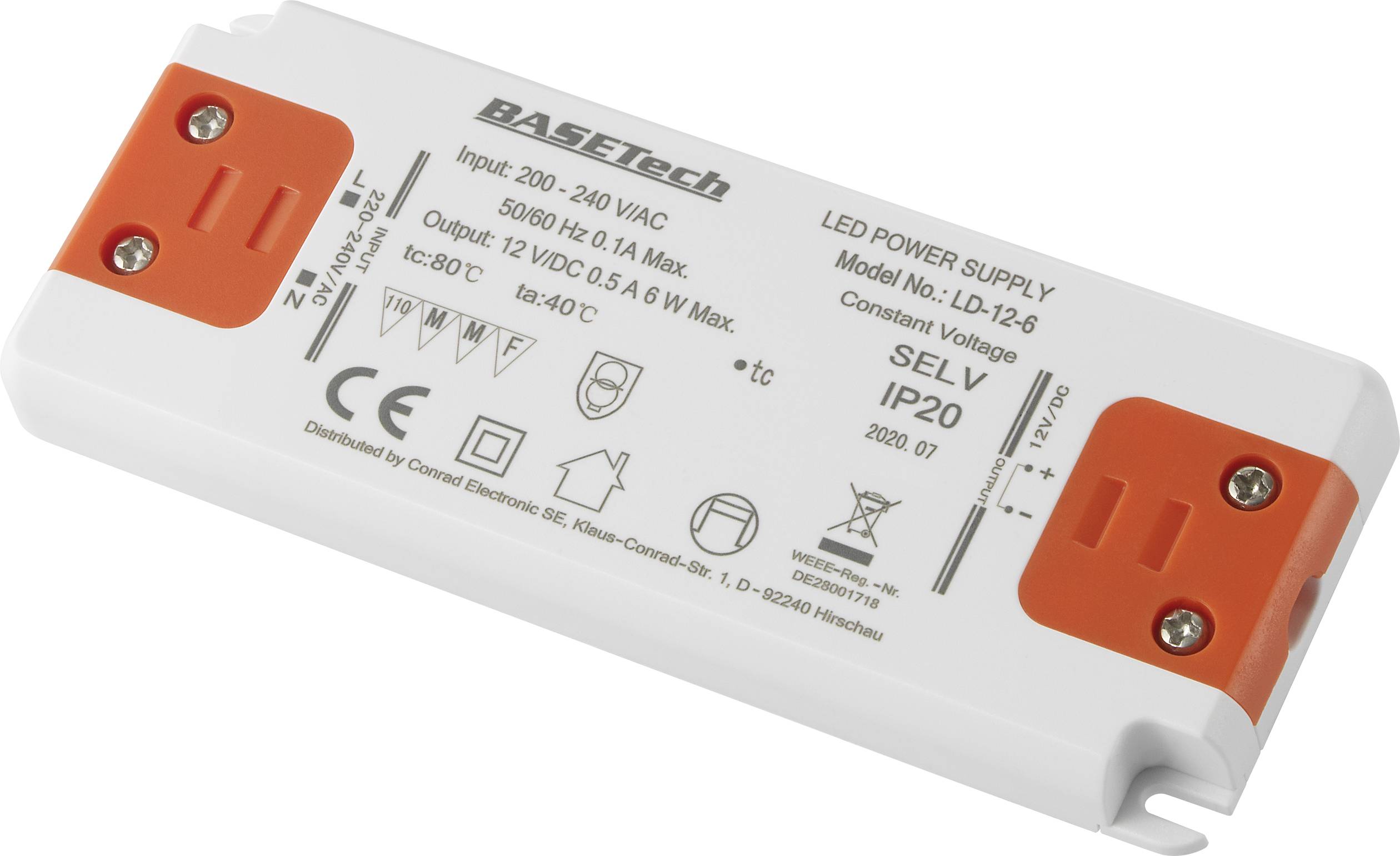

LED Power Supply, Model Number LD-12-6 by BASETech, Input 200-240 V AC, Output 12 V DC, 0.5 A, IP20, constant.

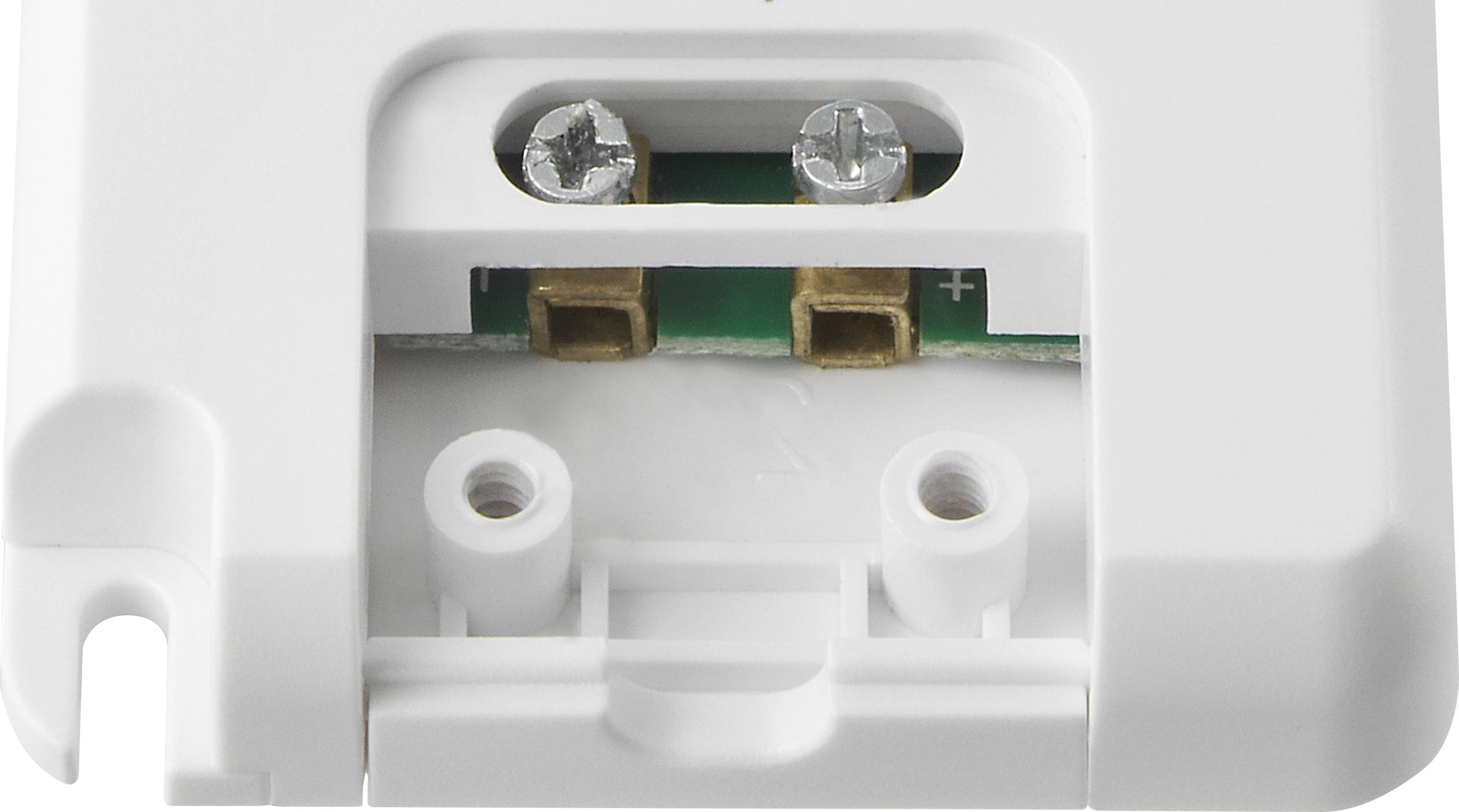

Close-up of a white electrical junction box with two screws and visible positive and negative terminals.

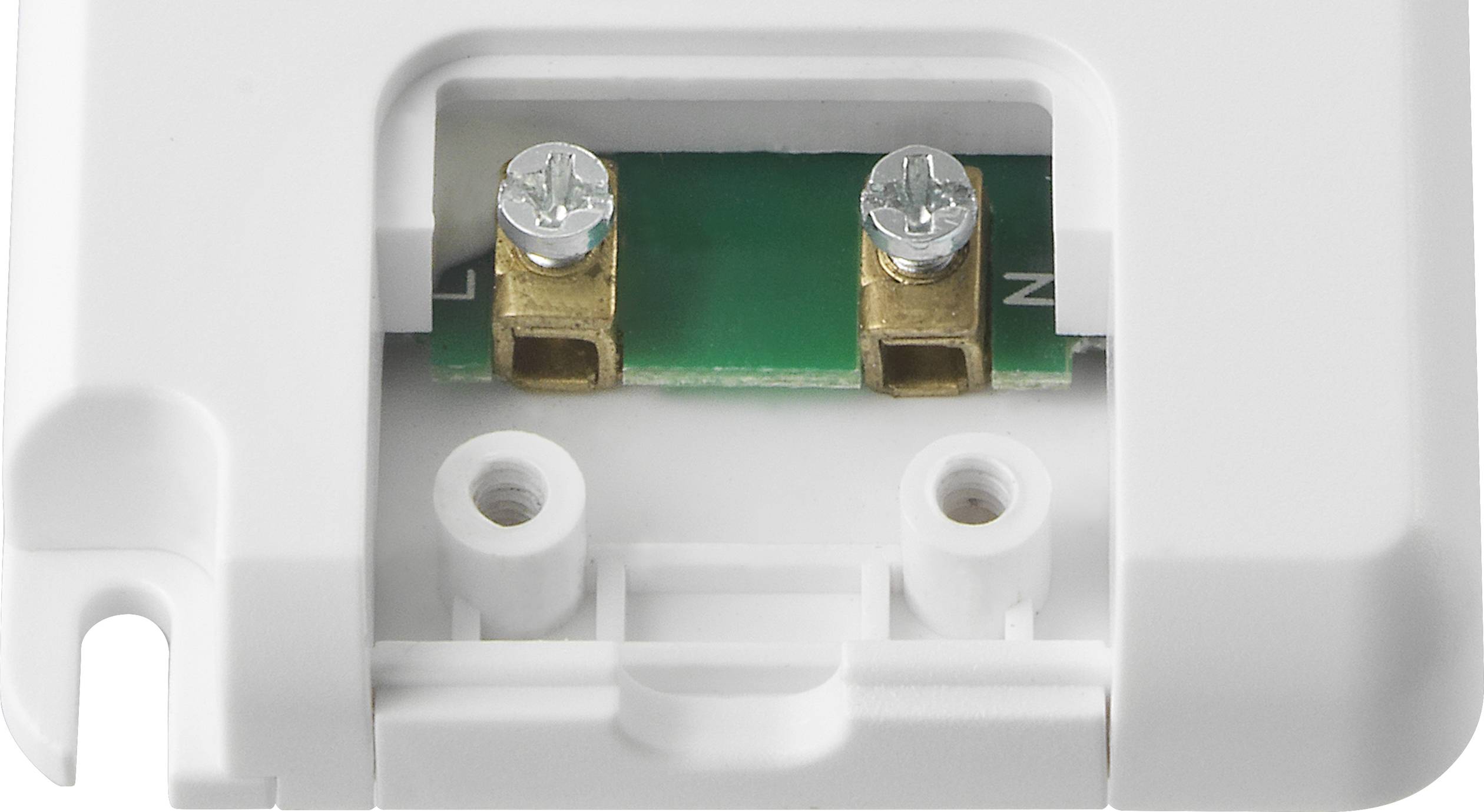

Close-up of an electrical terminal block with two screws on a green circuit board. Plastic guides are located on the left and right sides.

A modern bedroom with wooden flooring. A large bed is positioned on the left, and the window overlooks a garden. A decorative flower bouquet sits on a chest of drawers.

Modern kitchen with a grey wall, two sinks, black tap, and induction hob. Two potted plants on the worktop.

1/7

Our service for you

198 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 13.44 / piece)

€

Report legal concerns

Highlights & Details

Basetech LD-12-6 LED Transformer 6 W 12 V/DC 0.5 A

Output 12 V/DC / 0.5 A
6 Watt power
SELV Class II (Safety Extra Low Voltage)
Suitable for flammable surfaces
Approved for use on furniture

Technical specifications

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 127 x 50 x 12 mm

Test mark: SELV class II

Max. output current: 0.5 A

Output current (max.) - rounded: 500 mA

Operating voltage: 12 V DC

Protection class: II
EMC · F · MM
IP20

LED driver features: Approved for use on furniture
Overvoltage
Suitable for flammable surfaces

Connection: Screw terminal

Max. power: 6 W

Input voltage (max.): 240 V AC

Min. input voltage: 220 V AC

Power range: 6 W (max)

Width: 50 mm

Height: 12 mm

Length: 127 mm

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266202 Basetech LD-12-6 LED transformer Constant voltage 6 W 0.5 A Approved for use on furniture, Overvoltage, Suitable for fla

Conformity certificate

Conformity certificate 2266202 Basetech LD-12-6 LED transformer Constant voltage 6 W 0.5 A Approved for use on furniture, Overvoltage, Suitable for fla

Description

The LED transformer supplied a constant output voltage of 12V.

This text is machine translated.

Features

Over temperature protection
Overload, Over-voltage, and short-circuit protection

Scope of delivery

Power supply
User manual

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
