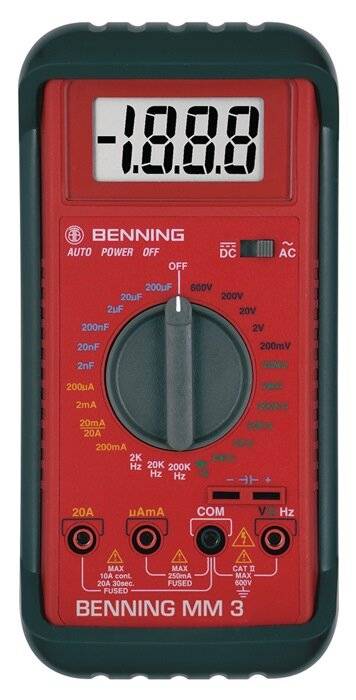

Benning MM 3 Handheld multimeter Digital CAT II 600 V, CAT III 300 V Display (counts): 2000
EAN:
Part number:
Item no:
Total (€ 169.99 / piece)
€ 200.00
-15 %
€ 169.99
incl. VAT
14-day return policy included
Highlights & Details
Benning MM 3 Handheld multimeter Digital CAT II 600 V, CAT III 300 V Display (counts): 2000
- CAT II 600 V, CAT III 300 V
Technical specifications
- Continuity test:< 50 Ω
- Diode test: max. 3.2 V
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
20 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
20 A
- Reading range - resistance
0.1 Ω – 20 MΩ
- Reading range - capacity
0.001 nF - 200 µF
- Frequency reading range
0.02 kHz / 200 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 500 Hz Hz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
192 mm
- Width
95 mm
- Weight
550 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
MM 3
- Display
Digital
- Display (counts)
2000
- Dim
(W x H) 95 mm x 192 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 127908 Benning MM 3 Handheld multimeter Digital CAT II 600 V, CAT III 300 V Display (counts): 2000
Information
Information 127908 Benning MM 3 Handheld multimeter Digital CAT II 600 V, CAT III 300 V Display (counts): 2000
Description
Features
- LCD
- Manual range switching
- Auto switch-off
- Battery status indicator
- Tested and approved according to IEC / EN 61010-1.
Scope of delivery
- Protective rubber surround
- Bag
- Battery
- Test Leads
- User manual.
