Name: Berger & Schröter 12511 Rope clip 3 mm Steel zinc plated, burnished 1 pc(s)
Brand: Berger & Schröter
SKU: 3442317
Availability: InStock

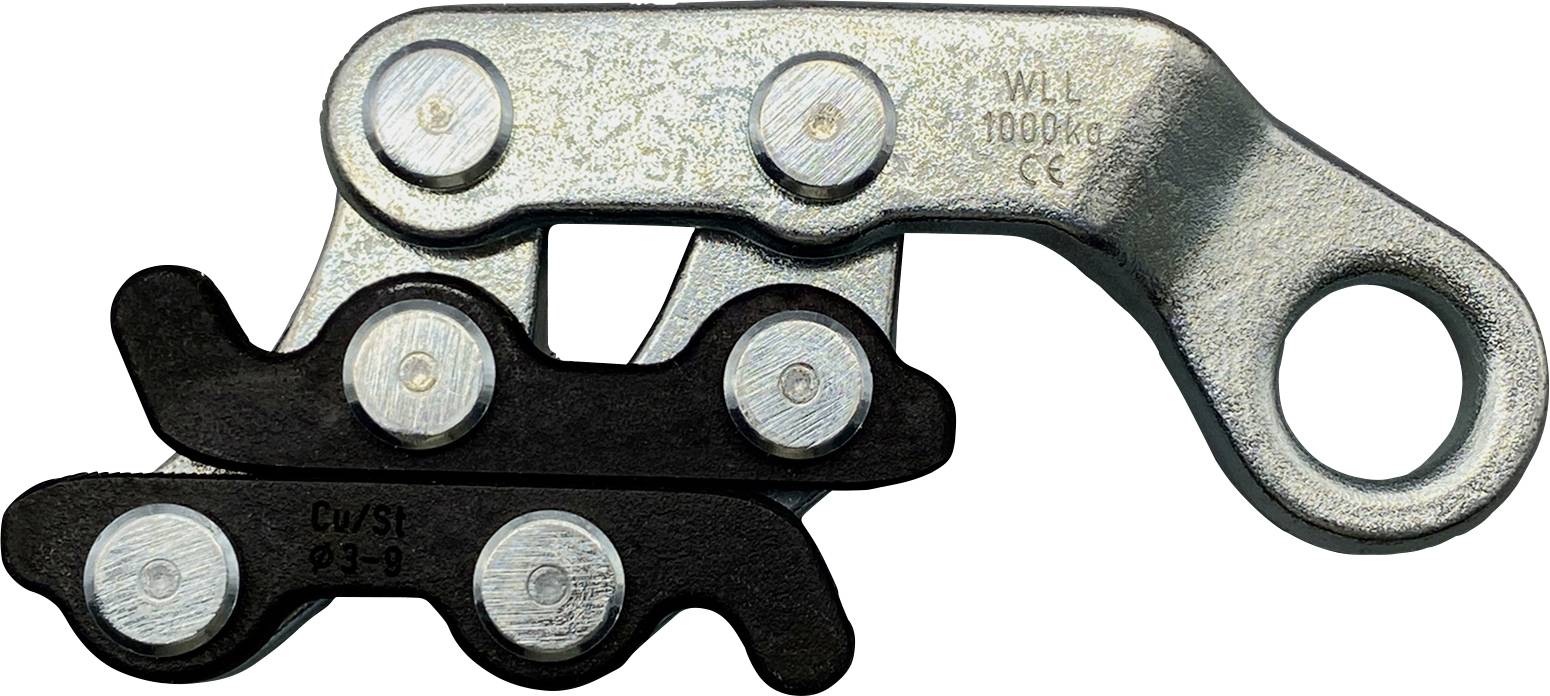

A metal clamp tool with an eyehole, labeled 'WLL 1000 kg CE', used for gripping wires or cables.

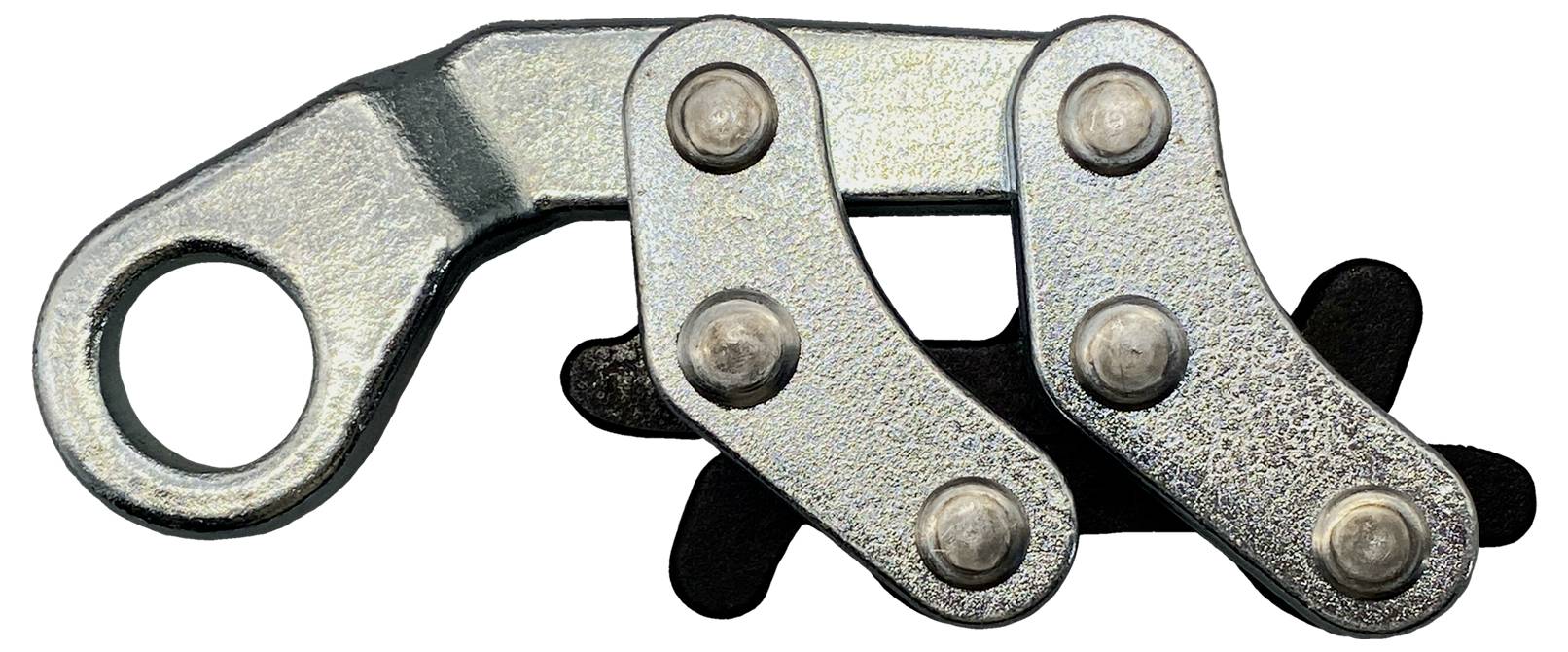

A silver metal mechanical bracket with multiple pivoting arms and a circular loop on one end, used for securing or connecting parts.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Rope clamping terminal 1000kg, 3-9 mm

Universal application: Long, parallel clamping jaws made of hardened, burnished and high quality steel
Corrosion-protected: Galvanised individual parts and browned clamping jaws
Easy to use: Good ergonomics
Self-acting holding: Spring effect on the rope to be clamped
Does not slip hold on the cable even with maximum tensile force
For wire 3-9 mm
Eye size 22 mm round
1000 kg load capacity
Breaking load 2500 kg
Weight 0.85 kg.
Remote trigger hole 5mm

Technical specifications

For wire 3-9 mm
Eye size 22 mm round
1000 kg load capacity
Breaking load 2500 kg
Weight 0.85 kg.
Remote trigger hole 5mm

Product type: Rope clip

Material: Steel

Content: 1 pc(s)

Material properties: zinc plated
burnished

Rope diameter: 3 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3442317 Berger & Schröter 12511 Rope clip 3 mm Steel zinc plated, burnished 1 pc(s)

Description

Our cable clips are the ideal tool for securely clamping copper and steel cables. They are widely used in industry, agriculture and bridge construction. The profile of the jaws is specially adapted to copper and steel ropes so that the tensioned material is not damaged.

This text is machine translated.
