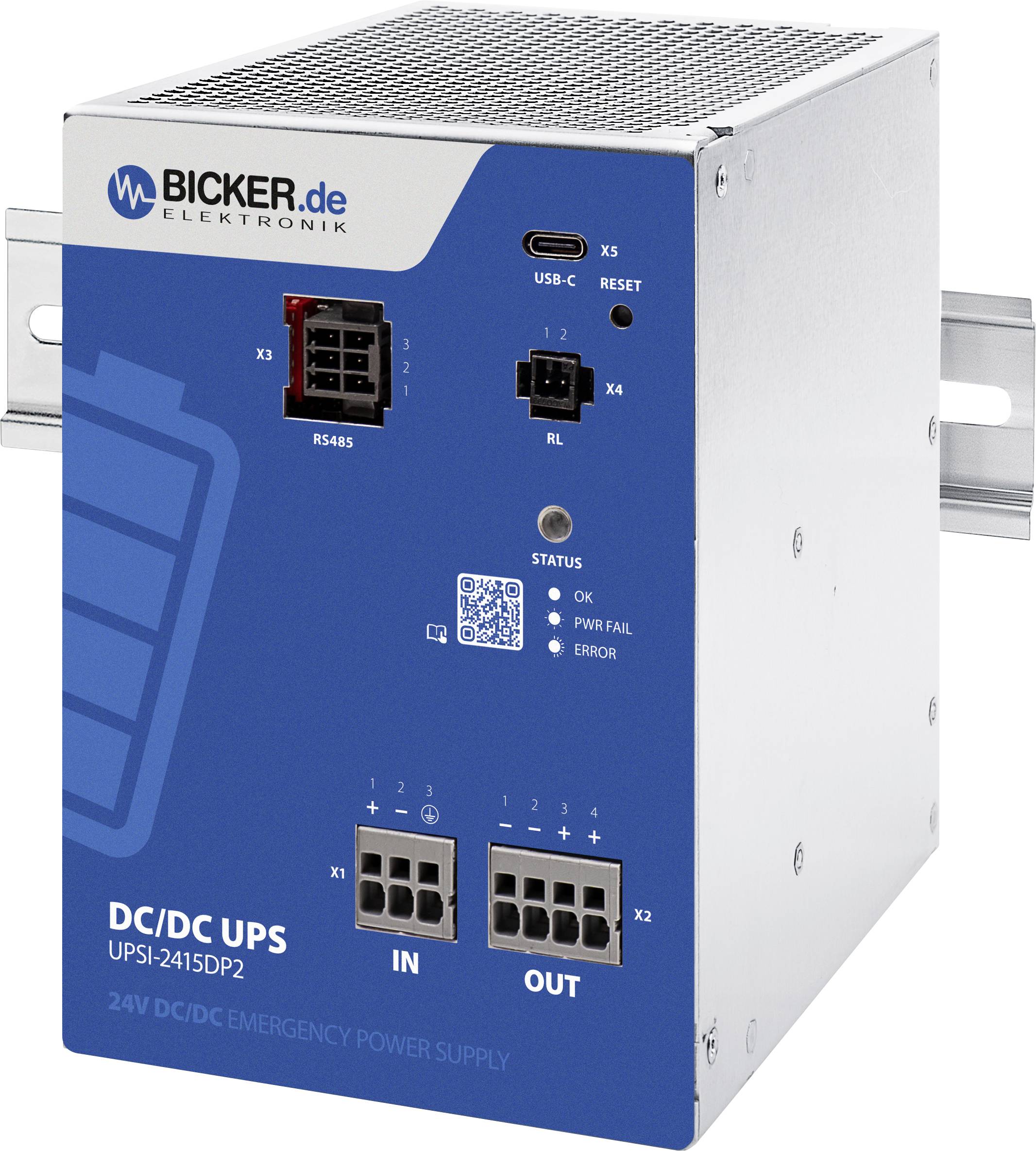

Bicker Elektronik UPSI-2415DP2 Rail-mount UPS (DIN)
EAN:
Part number:
Item no:
Number
Total (€ 558.82 / piece)
€ 558.82
plus VAT.
Only 2 Piece(s) available
Highlights & Details
UPSI-2415D2DC UPS / DIN rail / USB / Modbus / 360W / 24VDC 15A / Supercaps
- Up to 500 000 cycles
- Intelligent input current detection
- USB-C & Modbus interface
- Regulated output voltage in backup mode
- Minimum load detection
- Power-fail timer function
- Relay contact for Power-fail
- Reboot function
- Charging status indicator
- Shutdown by external signal
- Optimised charging procedure for much shorter charging times for energy storage
- Improved robustness of the electronics and intrinsically safe redundancy in the event of a fault
- Low-emission, efficient design – fulfills the interference emission in accordance with EN-61000-6-3
Technical specifications
- Integrated ultra-cap energy storage (extremely long-life, maintenance-free)
- Intelligent Power sharing (dynamic load and load distribution)
- Regulated backup voltage
- Power-fail timer & shutdown function
- Reboot function
- Wide range temperature range (-20 °C to +70 °C)
- Compatible with software UPScom / UPSGen2
- Input voltage
22.5 - 30 V DC
- Product type
Rail-mount UPS (DIN)
- Nominal power
360 W
- No. of outputs
1 x
- Input voltage (max.)
30 V DC
- Min. input voltage
22.5 V DC
- Output voltage (max.)
24.5 V DC
- Output voltage (min.)
23.5 V DC
- Dim
(W x H x D) 120 x 135 x 120 mm
- Rechargeable battery capacity (details)
13.5 kJ
- Connections
Screw terminals for input (+/-/GND), output (+/-) and signal relay
USB-C socket
RJ45-plug connector for communication interfaces (RS485 / Modbus)
- of which battery-buffered
1
- with surge protection
1
- Output current (details)
15 A continuous current (convection cooling)
- Input current
16 A
- Weight
1.71 kg
- Width
120 mm
- Height
135 mm
- Depth
120 mm
- Interfaces
USB-C
RS485
- Type
UPSI-2415DP2
- Features
USB port
- Bridging time, max load
25 s
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818329 Bicker Elektronik UPSI-2415DP2 Rail-mount UPS (DIN)
Description
The UPSI-2415DP2 is the latest generation of intelligent DC-UPS systems for DIN rail mounting – designed for maximum operational safety and optimum data communication. It provides reliable protection for control and automation applications in the event of power failures, voltage drops or flicker.
Instead of conventional batteries, the compact 24 VDC emergency power supply uses high-performance double-layer capacitors (EDLC), so-called supercaps, which enable up to 500,000 charge and discharge cycles and thus can be operated completely maintenance-free. Thanks to the extended operating temperature range of -20…+65°C, the UPSI-2415DP2 is particularly suitable for demanding industrial applications.
By means of the USB-C and RS485-Modbus-interfaces integrated on the front side the DC-UPS can be integrated without any problem in the existing control systems and monitored comfortably via the accompanying UPScom management software. Extended protection mechanisms provide additional operational safety and enhanced noise immunity in Surge & Burst.
The compact DC-UPS UPSI-2415DP2 in a robust DIN-rail casing is suitable for Ideal for many years of use in switchboard applications as well as in decentralized power supply solutions. It ensures the security of embedded IPCs, controllers, motor drives, sensors as well as measurement, control and safety systems.
This text is machine translated.
Instead of conventional batteries, the compact 24 VDC emergency power supply uses high-performance double-layer capacitors (EDLC), so-called supercaps, which enable up to 500,000 charge and discharge cycles and thus can be operated completely maintenance-free. Thanks to the extended operating temperature range of -20…+65°C, the UPSI-2415DP2 is particularly suitable for demanding industrial applications.
By means of the USB-C and RS485-Modbus-interfaces integrated on the front side the DC-UPS can be integrated without any problem in the existing control systems and monitored comfortably via the accompanying UPScom management software. Extended protection mechanisms provide additional operational safety and enhanced noise immunity in Surge & Burst.
The compact DC-UPS UPSI-2415DP2 in a robust DIN-rail casing is suitable for Ideal for many years of use in switchboard applications as well as in decentralized power supply solutions. It ensures the security of embedded IPCs, controllers, motor drives, sensors as well as measurement, control and safety systems.
This text is machine translated.
Features
- Maintenance-free
- Reboot function
- STANDARDS IEC 61010-1 (SELV), IEC61010-2-201, ETL, UL61010-1
Scope of delivery
- UPSI-2415DP2 DC UPS Module (Integrated Supercaps)
- Connector set (screw terminals)
- Quick guide
- Incl. software
