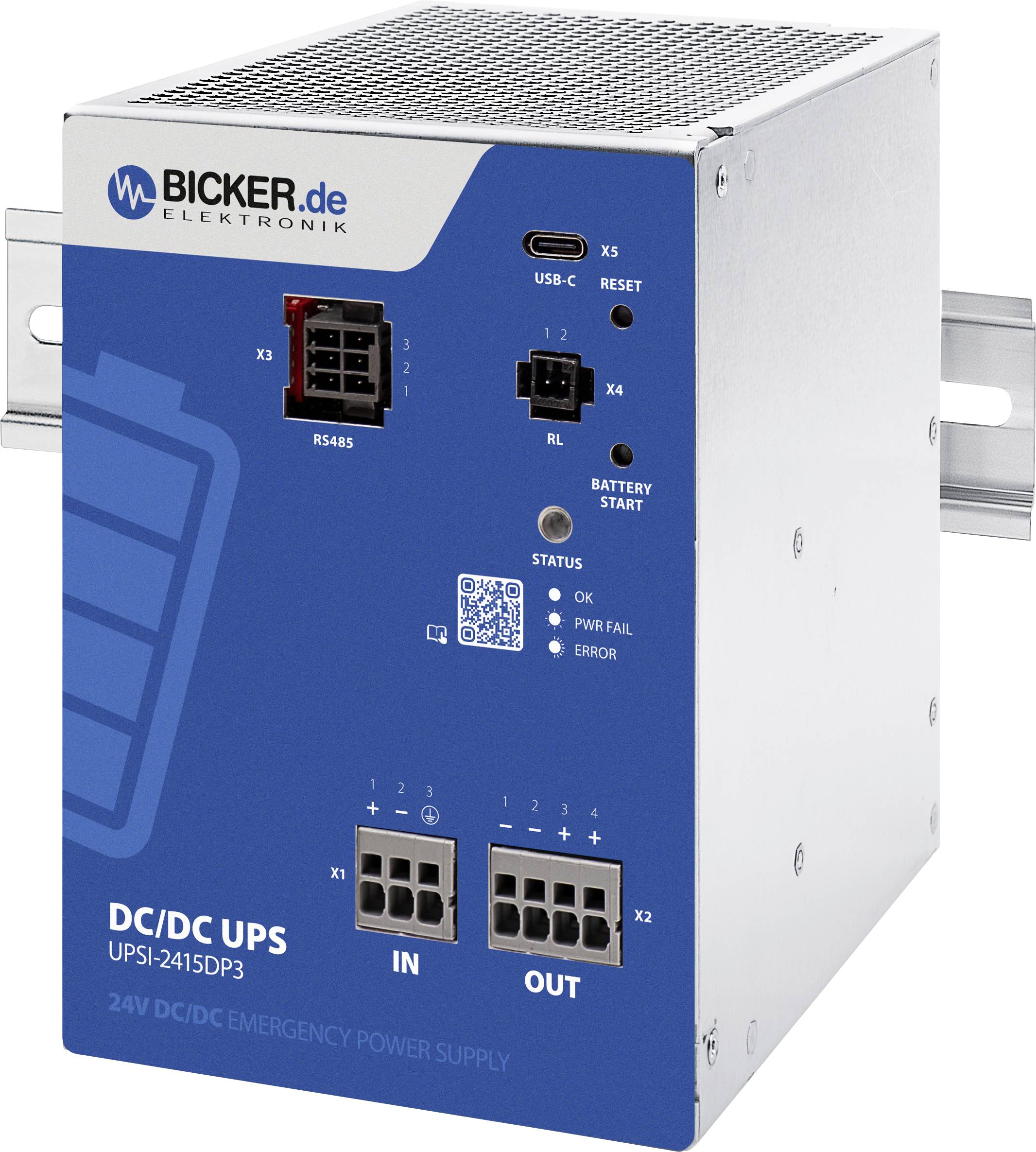

Bicker Elektronik UPSI-2415DP3 Rail-mount UPS (DIN)
EAN:
Part number:
Item no:
Number
Total (€ 696.64 / piece)
€ 696.64
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Uninterrupted power supply (DC-UPS) with integrated LiFePO4 battery
- Up to 6000 cycles
- Intelligent input current detection
- USB-C & Modbus interface
- Regulated output voltage in backup mode
- Minimum load detection
- Power-fail timer function
- Relay contact for Power-fail
- Reboot function
- Charging status indicator
- Shutdown by external signal
- Battery start function
- Optimised charging procedure for much shorter charging times for energy storage
- Improved robustness of the electronics and intrinsically safe redundancy in the event of a fault
- Low-emission, efficient design – fulfills the interference emission in accordance with EN-61000-6-3
- Intrinsically safe, high-performance battery pack with IEC-62133 safety certification
Technical specifications
- Integrated, intrinsically safe LiFePO4 high-performance battery pack
- Additional battery start function (cold start from the battery without input voltage)
- Regulated output voltage (24.5 VDC) in backup mode
- Dynamic Power sharing / intelligent input current detection
- Optimised charging procedure (CC/CV/CP) for short charging time
- Minimum load detection, Power-fail timer and shutdown function, reboot function
- Configurable relay contact
- Input voltage
23-30 V DC
- Product type
Rail-mount UPS (DIN)
- Nominal power
360 W
- No. of outputs
1 x
- Input voltage (max.)
30 V DC
- Min. input voltage
23 V DC
- Output voltage (max.)
30 V DC
- Output voltage (min.)
22.3 V DC
- Dim
(W x H x D) 111 x 157 x 150 mm
- Rechargeable battery capacity (details)
2,5 Ah
- Connections
Spring terminals (WAGO) input
Output: Spring terminals (WAGO)
Relay (RL): Lockable connector (WAGO)
USB: USB type C socket
RS-485: Lockable plug connector (WAGO 713)
- of which battery-buffered
1
- with surge protection
1
- Output current (details)
15 A
- Input current
17.5 A
- Weight
1.43 kg
- Width
111 mm
- Height
157 mm
- Depth
150 mm
- Interfaces
USB
RS485
- Type
UPSI-2415DP3
- Features
USB port
- Bridging time, max load
8 min
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818330 Bicker Elektronik UPSI-2415DP3 Rail-mount UPS (DIN)
Description
The UPSI-2415DP3 is the latest generation of intelligent DC-UPS systems for rail mounting – designed for maximum operating safety and optimum data communication. It provides reliable protection for control and automation applications in the event of power failures, voltage drops or flicker.
Thanks to robust LiFePO4 battery technology, extended temperature range of -20…+50 °C and up to 6,000 charging cycles, the high-performance 24 V DC emergency power supply with 15A impresses with its exceptionally long life and stability in industrial continuous operation.
By means of the USB-C and RS485-Modbus-interfaces integrated on the front side the DC-UPS can be integrated without any problem in the existing control systems and monitored comfortably via the accompanying UPScom management software. Extended protection mechanisms provide additional operational safety and enhanced noise immunity in Surge & Burst.
The compact DC-UPS UPSI-2415DP3 in a robust DIN-rail casing is suitable Ideal for the long-term use in switchboard applications as well as in decentralized power supply solutions. It ensures the security of embedded IPCs, controllers, motor drives, sensors as well as measurement, control and safety systems.
This text is machine translated.
Thanks to robust LiFePO4 battery technology, extended temperature range of -20…+50 °C and up to 6,000 charging cycles, the high-performance 24 V DC emergency power supply with 15A impresses with its exceptionally long life and stability in industrial continuous operation.
By means of the USB-C and RS485-Modbus-interfaces integrated on the front side the DC-UPS can be integrated without any problem in the existing control systems and monitored comfortably via the accompanying UPScom management software. Extended protection mechanisms provide additional operational safety and enhanced noise immunity in Surge & Burst.
The compact DC-UPS UPSI-2415DP3 in a robust DIN-rail casing is suitable Ideal for the long-term use in switchboard applications as well as in decentralized power supply solutions. It ensures the security of embedded IPCs, controllers, motor drives, sensors as well as measurement, control and safety systems.
This text is machine translated.
Scope of delivery
- 1x DC-UPS device UPSI-2415DP3
- 1x RS-485 mating plug (Modbus)
- 1x relay-mating plug
- Incl. software
