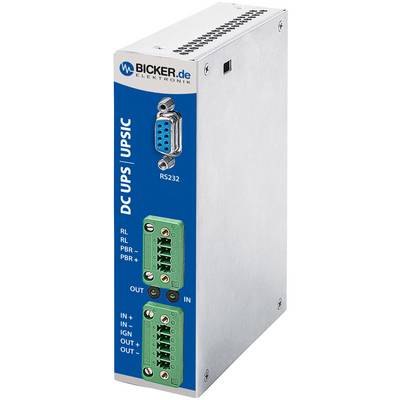

DC-UPS device from Bicker.de with RS232 port, green input and output terminals for RL, PBR, IN+, IGN and OUT+ connections.

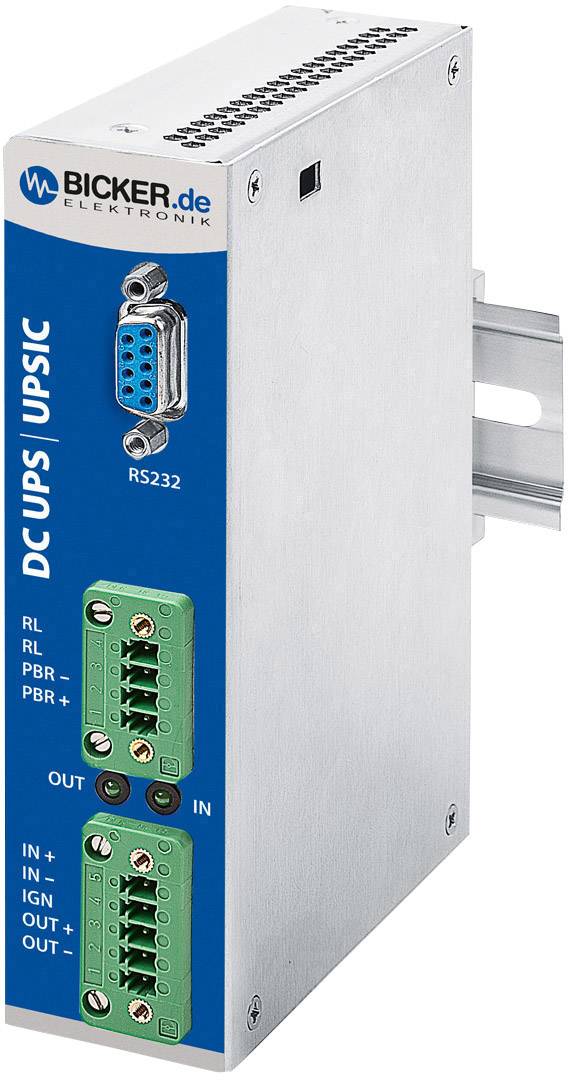

'DC USV UPSIC' device by Bicker Elektronik with RS232 connection and multiple green connection terminals for inputs and outputs.

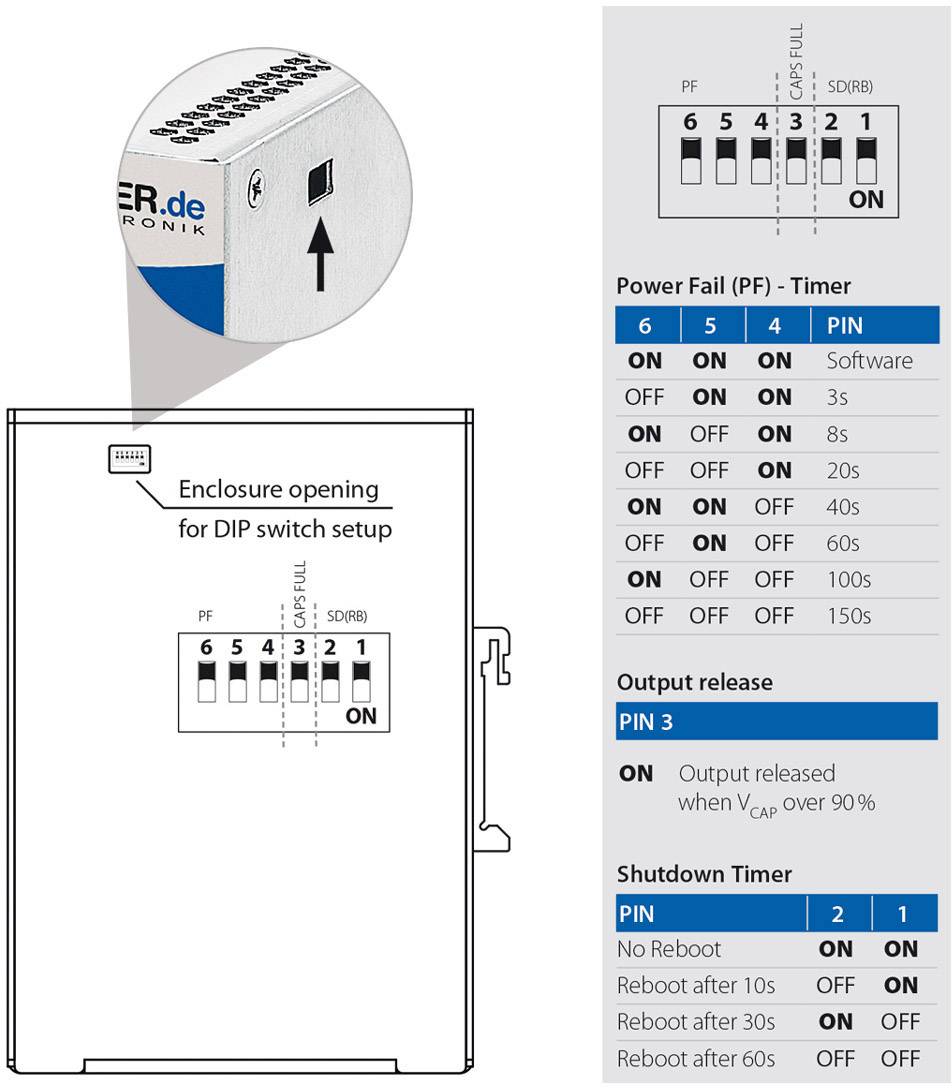

'A slim, silver electronic switch focusing on DIP switch configuration. Table shows settings: Power Fail, Output Release, Shutdown Timer. Instructions embedded in the image.'

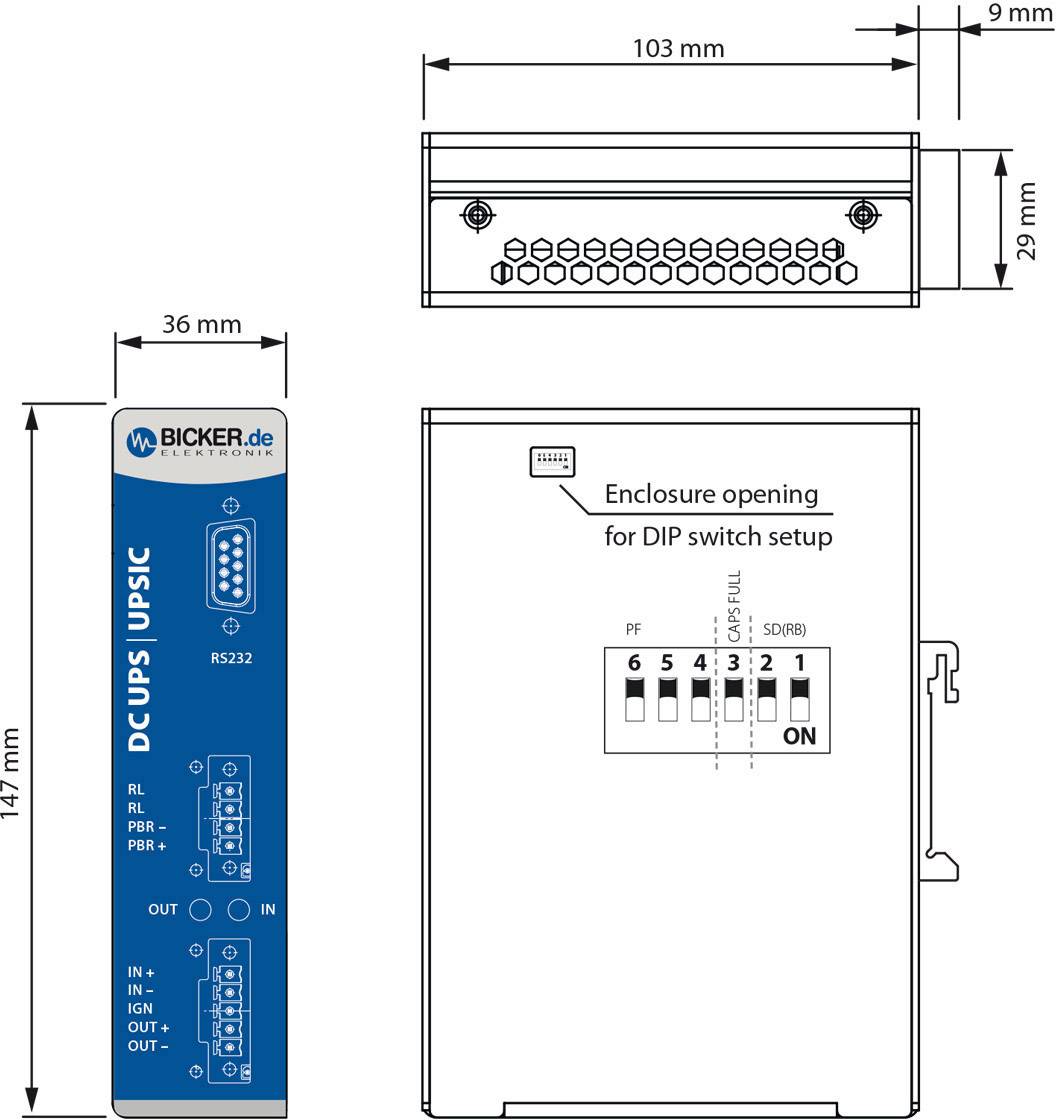

Front view and dimensions of a DC UPS module showing interfaces, connections, and DIP switches for configuration.

1/4

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 264.71 / piece)

€ 327.73

-19 %

€ 264.71

plus VAT.

Report legal concerns

DC-UPS with maintenance-free SuperCaps (DIN-Rail)

Highlights & Details

Compact DIN rail housing
Restart function
Operation of the UPS on the host is possible without software

Technical specifications

Power output 60 W
Output voltage Battery operation 12 VDC ±2 % controlled
Output voltage normal operation Vin- 0.3 V at 100% load
Output ripple ≤30 mV
Backup Efficiency 97% (VSupercaps 9.5 V, Iout 2.5 A)
Charging current up to 6.2A CC (VSupercap), Depending on the load
Charging procedure CC/CV
Bearing type Supercaps 4x 100 F.
Charging time< 60 sec at maximum charging current @ 4x 100 F.
Protection over-current protection - Not LATCH
Active reverse polarity protection
Security / EMC CE
Operating temperature: -20...+70 °C / Storage: -20...+70 °C.
Operating humidity: 10...85 % RH, non-condensing / Storage: 10...90 % RH, non-condensing.

Product type: Rail-mount UPS (DIN)

Input voltage (max.): 16

Min. input voltage: 11.6

Dim: (W x H x D) 36 x 147 x 103 mm

Output current (details): 5 A

Input current: 5.8 A nom.

Weight: 367

Width: 36 mm

Height: 147 mm

Depth: 103 mm

Type: UPSIC-1205D

Documents & Downloads

Datasheet

Datasheet 1986075 Bicker Elektronik UPSIC-1205D UPSIC-1205D Rail-mount UPS (DIN)

User & Safety Instructions

User & Safety Instructions 1986075 Bicker Elektronik UPSIC-1205D UPSIC-1205D Rail-mount UPS (DIN)

Description

The UPSIC-1205D in a compact DIN rail housing protects connected consumers against fluctuations and interruptions in the supply voltage. Maintenance-free supercaps provide for an extremely high cycle stability and short charging time. Intelligent power sharing does not require the source to be overdimensioned to load the supercaps. In addition, the UPSIC-1205D offers an active reverse polarity protection, a power fail signal via a relay contact and a free software with timer function. The built-in reboot function allows the system to restart if the input voltage returns during shutdown or at any other time. The BIOS can be used to enable the boot function when the input voltage is present. In addition, it can be set via a dip switch that the output of the UPS is only enabled when the capacitors have reached over 90% of their charge. Operation of the UPS on the host is also possible without software.
