binder 09-0174-00-08 Micro Circular Connector Series Nominal current (details): 5 A

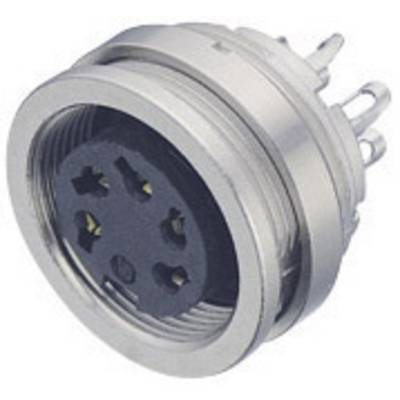

A round, multi-pin metal plug with multiple terminals and insulated, circularly arranged poles.

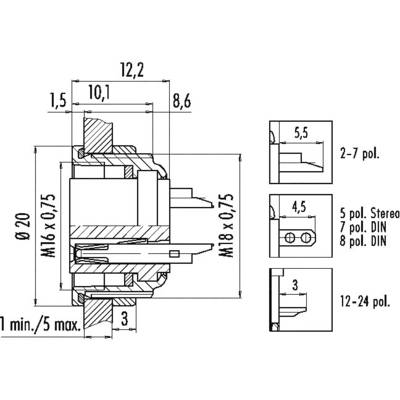

Technical drawing of a connector with dimensions in millimetres. Shows top view and cross-section with thread and drilling details.
1/2
Image similar
Product type
Bullet connector
Connector type
Sleeve socket
Total no. of pins
8
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
18 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

binder 09-0174-00-08 Micro Circular Connector Series Nominal current (details): 5 A

  • IP67

Technical specifications

Type

09-0174-00-08

Product type

Bullet connector

Connector type

Sleeve socket

Total no. of pins

8

Connection

Soldering

Content

1 pc(s)

Max. temperature

+125 °C

Nominal current

5 A

Min. temperature

-55 °C

Nominal current - rounded value

5 A

Seal

Screw cap

Nominal voltage

60 V

Contact material

Ag (Silver)

Cable Ø (max.)

6 mm

Cable Ø up to

4 mm

20

Connection angle

180°

Mounting hole diameter

M18 x 0.75

Manufacturer part #

09-0174-00-08

Cable Ø range

4 - 6 mm

Number of pins

8

max. cross section

0.75 mm²

Cross-section range

0.75 mm² (max)

IP67

Series

723

Type

Flange receptacle

Nominal voltage (details)

60 V

Nominal current (details)

5 A

Contamination level

1

Cross section

0.75 mm²

Connection

Soldering

Temperature range

-30 - +95 °C

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 738795 binder 09-0174-00-08 Micro Circular Connector Series Nominal current (details): 5 A

User & Safety Instructions

User & Safety Instructions 738795 binder 09-0174-00-08 Micro Circular Connector Series Nominal current (details): 5 A

Information

Information 738795 binder 09-0174-00-08 Micro Circular Connector Series Nominal current (details): 5 A

Description

Standard: inserted from the front and bolts from the rear.
