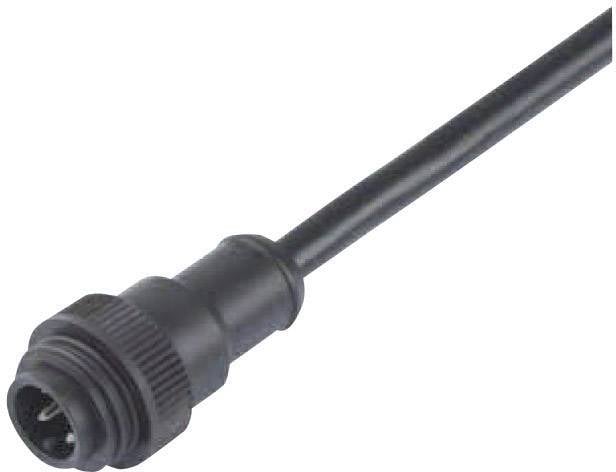

binder 79-0231-20-04 Standard Circular Connector Series 692 Nominal current (details): 16 A Pins: 3 + PE
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
3 + PE
Connection
Crimp
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 29.40
-14 %
€ 25.20
plus VAT.
Highlights & Details
binder 79-0231-20-04 Standard Circular Connector Series 692 Nominal current (details): 16 A Pins: 3 + PE
- IP67
- With 2 m connecting cable
Technical specifications
- Type
79-0231-20-04
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
3 + PE
- Connection
Crimp
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Seal
Screws
- Leading contact (PE)
Yes
- Nominal voltage
400 V
- Contact material
Ag (Silver)
- Cable Ø (max.)
8.6 mm
- Cable Ø up to
8.6 mm
16
- Connection angle
180°
- Manufacturer part #
79-0231-20-04
- Cable Ø range
8.6 - 8.6 mm
- Number of pins
3
- Length
2 m
- max. cross section
1.5 mm²
- Cross-section range
1.5 mm² (max)
IP67
- Series
692
- Type
Cable connector with cable
- Nominal voltage (details)
6000 V
- Nominal current (details)
16 A
- Contamination level
3
- Cross section
1.5 mm²
- Pins
3 + PE
- Connection
Crimp
- Cable diameter
4 x 1.5 mm²
- Temperature range
-25 - +85 °C
- Reading category
III
- Size
PG9
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 733897 binder 79-0231-20-04 Standard Circular Connector Series 692 Nominal current (details): 16 A Pins: 3 + PE
Information
Information 733897 binder 79-0231-20-04 Standard Circular Connector Series 692 Nominal current (details): 16 A Pins: 3 + PE
Description
· Connector with screw lock
· Protection class IP67
· With screw and solder connection available
· With connection cable, 2m, connection: crimps · Outer Ø 8.6 mm · Strand construction 28 x 0.25 mm · Material: PVC sheath and conductor insulation · Connection Ø 4 x 1.5 mm².
· Protection class IP67
· With screw and solder connection available
· With connection cable, 2m, connection: crimps · Outer Ø 8.6 mm · Strand construction 28 x 0.25 mm · Material: PVC sheath and conductor insulation · Connection Ø 4 x 1.5 mm².
