A connector with multiple round sockets and gold-coloured metal pins, surrounded by a green sealing element.

A connector with multiple round sockets and gold-coloured metal pins, surrounded by a green sealing element.

Technical drawing of a cylindrical component with dimensions. Diameter 16 mm, length 21 mm. M12x1 thread marked.

1/2

Image similar

Product type

Bullet connector

Connector type

Sleeve socket

Total no. of pins

5

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

binder

Fast track dispatch on Tue 13 Oct

62 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

IP67

Technical specifications

Type: 99-9116-00-05

Product type: Bullet connector

Connector type: Sleeve socket

Total no. of pins: 5

Connection: Soldering

Content: 1 pc(s)

Max. temperature: +125 °C

Nominal current: 5 A

Min. temperature: -55 °C

Nominal current - rounded value: 5 A

Seal: Snap-In

Nominal voltage: 125 V

Contact material: Au (gold)

: 20

Connection angle: 180°

Mounting hole diameter: M12 x 1

Manufacturer part #: 99-9116-00-05

Number of pins: 5

max. cross section: 0.75 mm²

Cross-section range: 0.75 mm² (max)

: IP67

Series: 720

Type: Flange dose

Nominal voltage (details): 125 V

Nominal current (details): 5 A

Contamination level: 2

Cross section: 0.75 mm²

Connection: Soldering

Temperature range: -40 - +85 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 738839 binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

User & Safety Instructions

User & Safety Instructions 738839 binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

Information

Information 738839 binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

Description

· Recessed mounting with available Adapters
· Adapter as a Front mount - Version (Particularly suitable for pre-assembled Cable harnesses, which are screwed together after the brazing)

Hints

For the Front panel assembly, the Adapter needed is 720-08-2433-000-001 or 720-08-2434-000-001.

Description

· Recessed mounting with available Adapters
· Adapter as a Front mount - Version (Particularly suitable for pre-assembled Cable harnesses, which are screwed together after the brazing)

Hints

For the Front panel assembly, the Adapter needed is 720-08-2433-000-001 or 720-08-2434-000-001.

Frequently Bought Together

(^*All information is plus legal VAT)

This article

binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

Conrad Electronic

€ 13.99^*

binder 99-9113-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

binder 99-9113-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

Conrad Electronic

€ 13.99^*

Total price:

€ 27.98^*

Frequently Bought Together

(^*All information is plus legal VAT)

This article

binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

binder 99-9116-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

Conrad Electronic

€ 13.99^*

binder 99-9113-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

binder 99-9113-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A

Conrad Electronic

€ 13.99^*

Total price:

€ 27.98^*

What kind of Keyed Connectors are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

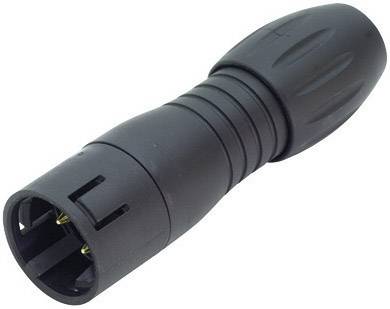

binder 99-9113-00-05 Series 720 Miniature Circular Connector Nominal current (details): 5 A
