binder 99-9207-00-03 Bullet connector Sleeve plug Series (round connectors): 620 Total number of pins: 3 1 pc(s)

EAN:
Part number:
Item no:

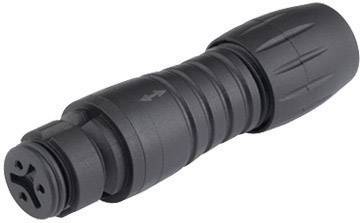

Black plastic cylinder with metal pins at one end, likely an electrical component or connector.
A grey cable with a stripped end revealing different coloured wires: brown, blue, and yellow-green.
Technical drawing of a connector with dimensions: Length 17 mm, Width 6.3 mm, Thread M8x0.75, Minimum length 1 mm.
1/3
Product type
Bullet connector
Connector type
Sleeve plug
Total no. of pins
3
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Dispatches on Thu 29 Oct
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.99 / piece)
€ 8.99
-22 %
€ 6.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Subminiature circular connectors series 620

  • IP67

Our service for you

Technical specifications

Type

99-9207-00-03

Product type

Bullet connector

Connector type

Sleeve plug

Total no. of pins

3

Connection

Soldering

Content

1 pc(s)

Max. temperature

+125 °C

Nominal current

3 A

Min. temperature

-55 °C

Nominal current - rounded value

3 A

Seal

Snap in

Nominal voltage

125 V

Contact material

Au (gold)

Cable Ø (max.)

5 mm

Cable Ø up to

3 mm

24

Connection angle

180°

Mounting hole diameter

M8 x 0.75

Manufacturer part #

99-9207-00-03

Cable Ø range

3 - 5 mm

Number of pins

3

max. cross section

0.25 mm²

Cross-section range

0.25 mm² (max)

RoHS-compliant

Yes

IP67

Series

620

Type

Flange plug

Nominal voltage (details)

125 V

Nominal current (details)

3 A

Contamination level

2

Cross section

0.25 mm²

Connection

Soldering

Temperature range

-40 - +85 °C

Documents & Downloads

Datasheet

Datasheet 738770 binder 99-9207-00-03 Bullet connector Sleeve plug Series (round connectors): 620 Total number of pins: 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 738770 binder 99-9207-00-03 Bullet connector Sleeve plug Series (round connectors): 620 Total number of pins: 3 1 pc(s)

Information

Information 738770 binder 99-9207-00-03 Bullet connector Sleeve plug Series (round connectors): 620 Total number of pins: 3 1 pc(s)

Description

· Sunk installation with adapter is possible· Adapter as front assembly execution (particularly suitable for prefabricated cable harnesses which are bolted after soldering).

Hints

For the front panel mounting, the adapter 620-08-26236-000-01 or 620-08-2629-000-001 is needed.
