BKL Electronic 2800049 Extension 6 mm² Cable length 1 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 7 Set(s) available
Technical specifications
- Plug / socket
- Connections: PV4 plug on PV4 socket
- Plug connection: Ø 4mm
- Contact material: Tin-plated copper
- Design of the contact: Pin plug / pin socket, single contact
- Contact manufacturing process: Rotated
- Mounting type: Crimped
- NEC locking type
- Insulation material PPO
- Locking system snap-in
- Overvoltage category CAT II
- Pollution level: 2
- Protection class: 2
- Protection type (plug-in): IP68, 1 m / 1 h
- Flame class UL94 V-0
- Rated voltage 1500 V DC
- Testing voltage 6 kV (50 Hz, 1 min.)
- Contact resistance = 0.25 mOhm
- Rated current (IEC 62852 at 85°C): 6.0mm² (10AWG) 40 A.
- Dimensioning surge voltage: 16 kV
- Ambient temperature: -40 °C to +90 °C
- Product type
Extension
- Cable length
1 m
- Cross section per core
6 mm²
- Factory colour
Red
Black
- Cross section
6 mm²
Documents & Downloads
Datasheet
Datasheet 3208516 BKL Electronic 2800049 Extension 6 mm² Cable length 1 m
User & Safety Instructions
User & Safety Instructions 3208516 BKL Electronic 2800049 Extension 6 mm² Cable length 1 m
Description

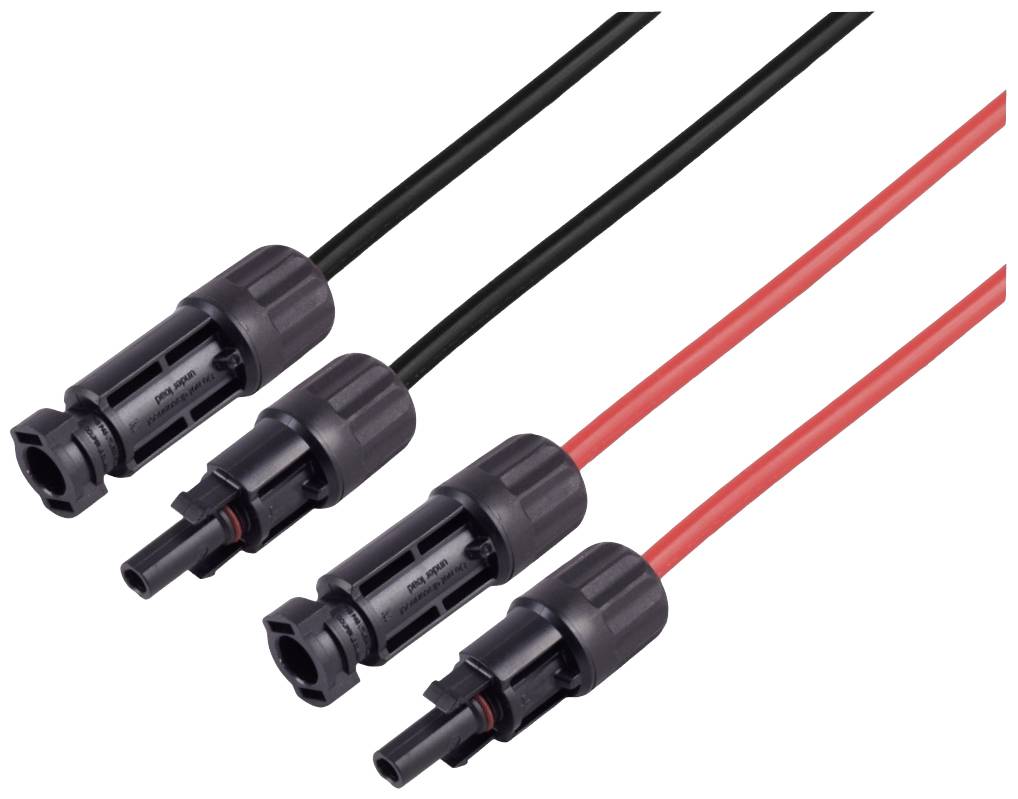

Solar extension cable set for serial as well as parallel wirings of photovoltaic systems.
A set consists of two cables; both cables are each assembled with a plug to a socket.
This text is machine translated.
A set consists of two cables; both cables are each assembled with a plug to a socket.
This text is machine translated.
Scope of delivery
- 1x PV4 extension cable, red
- 1x PV4 extension cable, black
