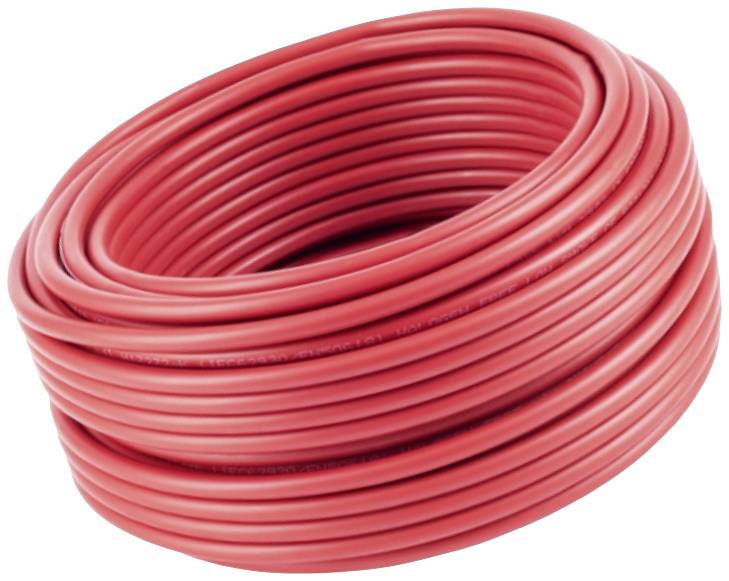

BKL Electronic H1Z2Z2-K 2802005 PV cable 1 x 6 mm² Red 100 m
EAN:
Part number:
Item no:
Product type
PV cable
Cable type
H1Z2Z2-K
No. of leads
1 x
Cross section (each core)
6 mm²
Content
100 m
Datasheet (PDF)
Number
Total (1 m = € 3.61)
€ 360.50
plus VAT.
Highlights & Details
Solar cable 6mm², H1N1 Z2Z2-K, bulk, red, 100m
- 1 ring
Our service for you
Technical specifications
- Product type
PV cable
- Cable type
H1Z2Z2-K
- No. of leads
1 x
- Cross section (each core)
6 mm²
- Cross section
1 x 6 mm²
- Outside Ø
6 mm
- Factory colour
Red
- Content
100 m
- Nominal voltage U0
1000 V
- Test voltage
6500 V
- Bend radius (no. of ODs for fixed installation)
4
- Bend radius (no. of ODs for flexible installation)
5
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
2802005
- Core layout
Tin-plated copper
- RoHS-compliant
Yes
- Type
2802005
- Max. length sold by the metre
100 m
Documents & Downloads
Datasheet
Datasheet 3208538 BKL Electronic H1Z2Z2-K 2802005 PV cable 1 x 6 mm² Red 100 m
User & Safety Instructions
User & Safety Instructions 3208538 BKL Electronic H1Z2Z2-K 2802005 PV cable 1 x 6 mm² Red 100 m
Description
Solar cable for a fixed installation in photovoltaic systems or for the
Assembly with appropriate PV plug contacts.
This text is machine translated.
Assembly with appropriate PV plug contacts.
This text is machine translated.
Features
- Thanks to the H1N1 Z2Z2-K certification you do not need to worry about
- Safety or quality.
Hints
These solar cables are classified according to EU 305/2011 EU Construction Products Directive.
They have been successfully tested in accordance with Euro Class B2ca-S1A,d0,a1.
Cables with Euro class (fire class) B2ca are used where there are very high fire protection requirements.
