Name: Bourns 6639S-1-103 6,35mm 1W 1-Drehung linear ±15% 10kΩ Plastic film pot 1 W 10 kΩ 1 pc(s)
Brand: Bourns
SKU: 2996378
Availability: InStock

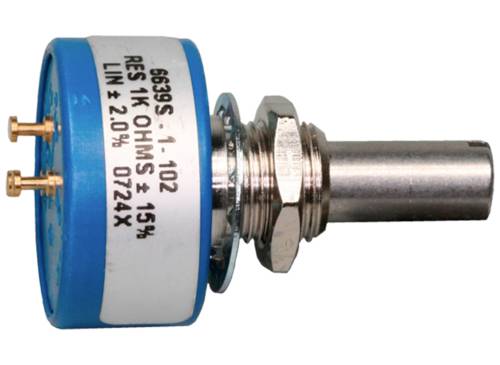

A round electrical resistance sensor with a blue casing. Markings indicate a resistance of 1k Ohm and a tolerance of ±15%. Suitable for measurement applications.

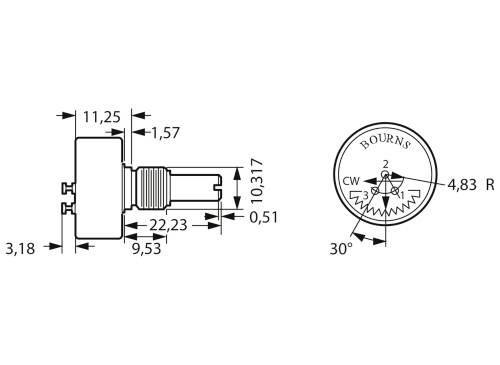

Figure of a technical component with various dimensions in millimetres and a circuit diagram. Main components are highlighted.

1/2

Product type

Plastic film pot

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

1 W

Axle type

Slotted

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 33.264 / piece)

€ 33.26

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Conductive plastic potentiometer, 10 kΩ, 1 W, linear, solder eyelet, 6639S-1-103

10 kΩ
linear

Technical specifications

Product type: Plastic film pot

Resistance: 10 kΩ

Resistance characteristic: linear

Power rating: 1 W

Cut-off voltage: 300 V

Connection: Solder tag

Mechanical angle: 340°

Electrical angle: 340°

Type: straight

Axle type: Slotted

Axle Ø: 6.34 mm

Length: 11.25 mm

(Ø): 6.35 mm

Min. temperature: -40 °C

Max. temperature: 125 °C

Tolerance ±: 15 %

Content: 1 pc(s)

Type: 6,35mm 1W 1-Drehung linear ±15% 10kΩ

Dim: (Ø x L) 6.35 mm x 11.25 mm

RoHS-compliant: Yes

No. of rotations: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996378 Bourns 6639S-1-103 6,35mm 1W 1-Drehung linear ±15% 10kΩ Plastic film pot 1 W 10 kΩ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2996378 Bourns 6639S-1-103 6,35mm 1W 1-Drehung linear ±15% 10kΩ Plastic film pot 1 W 10 kΩ 1 pc(s)

Description

Conductive plastic potentiometer, type Bourns 6639. For 1 rotation; design: With central mounting and 6.35 mm-axis, design: Linear, with very high resolution and long life. Linearity: ±2.0 %, capacity: 1.0 W at +70 °C, operating voltage: Max. 300 V, operating temperature: 40 to +125 °C, resistance -Tol.: ±15%, test voltage: 750 VAC, rotation angle: Electrical (+3.0°) and mechanical (+8.0/–0°) 340° each, central thread: 3/8 inch-32 UNEF, axis: D 6.35, with adjusting slot. Without stop Type 10K
