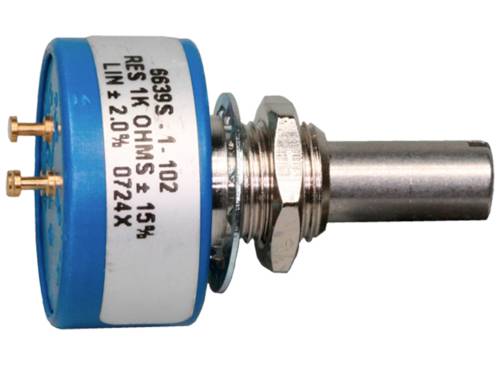

A blue electrical resistor with connection pins and metal threading. Labelled 'RES 1K OHMS ± 15% LIN ± 2.0%' on the side.

A blue electrical resistor with connection pins and metal threading. Labelled 'RES 1K OHMS ± 15% LIN ± 2.0%' on the side.

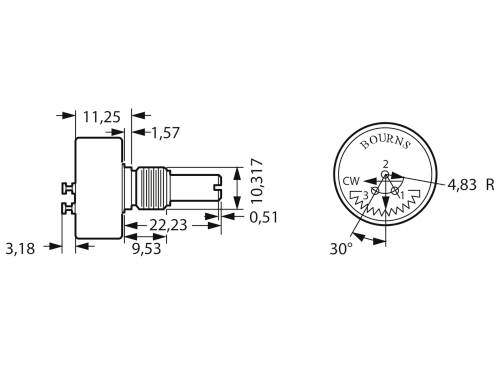

Technical drawing of a potentiometer with dimensional specifications in millimetres. Includes front and side view along with circuit diagram.

1/2

Product type

Plastic film pot

Resistance

5 kΩ

Resistance characteristic

linear

Power rating

1 W

Axle type

Slotted

Datasheet (PDF)

Bourns

Fast track dispatch on Wed 14 Oct

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 31.145 / piece)

€ 31.15

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Conductive plastic potentiometer, 5 kΩ, 1 W, linear, solder eyelet, 6639S-1-502

5 kΩ
linear

Technical specifications

Product type: Plastic film pot

Resistance: 5 kΩ

Resistance characteristic: linear

Power rating: 1 W

Cut-off voltage: 300 V

Connection: Solder tag

Mechanical angle: 340°

Electrical angle: 340°

Type: straight

Axle type: Slotted

Axle Ø: 6.34 mm

Length: 11.25 mm

(Ø): 6.35 mm

Min. temperature: -40 °C

Max. temperature: 125 °C

Content: 1 pc(s)

Type: 6639S-1-502

Dim: (Ø x L) 6.35 mm x 11.25 mm

RoHS-compliant: Yes

No. of rotations: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996379 Bourns 6639S-1-502 Plastic film pot 1 W 5 kΩ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2996379 Bourns 6639S-1-502 Plastic film pot 1 W 5 kΩ 1 pc(s)

Description

Conductive plastic potentiometer, type Bourns 6639. For 1 rotation; design: With central mounting and 6.35 mm-axis, design: Linear, with very high resolution and long life. Linearity: ±2.0 %, capacity: 1.0 W at +70 °C, operating voltage: Max. 300 V, operating temperature: 40 to +125 °C, resistance -Tol.: ±15%, test voltage: 750 VAC, rotation angle: Electrical (+3.0°) and mechanical (+8.0/–0°) 340° each, central thread: 3/8 inch-32 UNEF, axis: D 6.35, with adjusting slot. Without stop Type 5K0

This text is machine translated.

Scope of delivery

6639S-1-502.

Description

Conductive plastic potentiometer, type Bourns 6639. For 1 rotation; design: With central mounting and 6.35 mm-axis, design: Linear, with very high resolution and long life. Linearity: ±2.0 %, capacity: 1.0 W at +70 °C, operating voltage: Max. 300 V, operating temperature: 40 to +125 °C, resistance -Tol.: ±15%, test voltage: 750 VAC, rotation angle: Electrical (+3.0°) and mechanical (+8.0/–0°) 340° each, central thread: 3/8 inch-32 UNEF, axis: D 6.35, with adjusting slot. Without stop Type 5K0

This text is machine translated.

Scope of delivery

6639S-1-502.

What kind of Rotary Potentiometers are you looking for?

More interesting products

(^*All information is plus legal VAT)

Weltron 002045038963 WCIP20CIPS-08-60F1-10K-20%-LIN Single turn rotary pot + switch Mono 0.4 W 10 kΩ 1 pc(s)

Weltron 002045038963 WCIP20CIPS-08-60F1-10K-20%-LIN Single turn rotary pot + switch Mono 0.4 W 10 kΩ 1 pc(s)

Conrad Electronic

€ 5.49^*

OMEG PC20BU 10K A F1 CEPS PC20BU 10K A F1 CEPS Single turn rotary pot Mono 10 kΩ 1 pc(s)

OMEG PC20BU 10K A F1 CEPS PC20BU 10K A F1 CEPS Single turn rotary pot Mono 10 kΩ 1 pc(s)

Conrad Electronic

€ 4.79^*

OMEG PC20BU 4K7 A F1 CEPS PC20BU 4K7 A F1 CEPS Single turn rotary pot Mono 4.7 kΩ 1 pc(s)

OMEG PC20BU 4K7 A F1 CEPS PC20BU 4K7 A F1 CEPS Single turn rotary pot Mono 4.7 kΩ 1 pc(s)

Conrad Electronic

€ 4.79^*

Piher PC16SH-10IP06503A2020TA Carbon film pot Dustproof Mono 0.2 W 50 kΩ 1 pc(s)

Piher PC16SH-10IP06503A2020TA Carbon film pot Dustproof Mono 0.2 W 50 kΩ 1 pc(s)

Conrad Electronic

€ 3.49^*

Potentiometer Service RV16AF-41-15R1-B10k RV16AF-41-15R1-B10k Single turn rotary pot Mono 0.125 W 10 kΩ 1 pc(s)

Potentiometer Service RV16AF-41-15R1-B10k RV16AF-41-15R1-B10k Single turn rotary pot Mono 0.125 W 10 kΩ 1 pc(s)

Conrad Electronic

€ 2.79^*

ALPS 180757 RK27112-S25-C0-A203 Single turn rotary pot Dustproof Stereo 0.05 W 50 kΩ 1 pc(s)

ALPS 180757 RK27112-S25-C0-A203 Single turn rotary pot Dustproof Stereo 0.05 W 50 kΩ 1 pc(s)

Conrad Electronic

€ 19.99^*

ALPS 401951 High Grade Stereo Motor Potentiometer

ALPS 401951 High Grade Stereo Motor Potentiometer

Conrad Electronic

€ 19.99^*

OMEG 9815 9815 Single turn rotary pot Mono 0.2 W 1 kΩ 1 pc(s)

OMEG 9815 9815 Single turn rotary pot Mono 0.2 W 1 kΩ 1 pc(s)

Conrad Electronic

€ 2.99^*

ALPS 401563 RK27112MC 100KBX2 Motorised potentiometer Dustproof Stereo 0.05 W 100 kΩ 1 pc(s) Piece

ALPS 401563 RK27112MC 100KBX2 Motorised potentiometer Dustproof Stereo 0.05 W 100 kΩ 1 pc(s) Piece

Conrad Electronic

€ 29.99^*

ALPS 180759 RK27112 10K Single turn rotary pot Dustproof Stereo 0.05 W 10 kΩ 1 pc(s)

ALPS 180759 RK27112 10K Single turn rotary pot Dustproof Stereo 0.05 W 10 kΩ 1 pc(s)

Conrad Electronic

€ 19.99^*

ALPS 402075 High Grade Stereo Motor Potentiometer

ALPS 402075 High Grade Stereo Motor Potentiometer

Conrad Electronic

€ 21.99^*

ALPS 180347 RK 27112 10K Single turn rotary pot Dustproof Stereo 0.05 W 10 kΩ 1 pc(s)

ALPS 180347 RK 27112 10K Single turn rotary pot Dustproof Stereo 0.05 W 10 kΩ 1 pc(s)

Conrad Electronic

€ 16.99^*

ALPS 180760 RK27112 50K Single turn rotary pot Dustproof Stereo 0.05 W 50 kΩ 1 pc(s)

ALPS 180760 RK27112 50K Single turn rotary pot Dustproof Stereo 0.05 W 50 kΩ 1 pc(s)

Conrad Electronic

€ 16.99^*

ALPS RK 27112 100K Single turn rotary pot Dustproof Stereo 0.05 W 100 kΩ 1 pc(s)

ALPS RK 27112 100K Single turn rotary pot Dustproof Stereo 0.05 W 100 kΩ 1 pc(s)

Conrad Electronic

€ 16.99^*

OMEG PC20BU/PC1S 4K7 A F1 CEPS PC20BU/PC1S 4K7 A F1 CEPS Single turn rotary pot Mono 4.7 kΩ 1 pc(s)

OMEG PC20BU/PC1S 4K7 A F1 CEPS PC20BU/PC1S 4K7 A F1 CEPS Single turn rotary pot Mono 4.7 kΩ 1 pc(s)

Conrad Electronic

€ 8.49^*

ALPS 402178 RK27112 50KBX2CC Single turn rotary pot Dustproof, + mid-position detent Stereo 0.05 W 50 kΩ 1 pc(s)

ALPS 402178 RK27112 50KBX2CC Single turn rotary pot Dustproof, + mid-position detent Stereo 0.05 W 50 kΩ 1 pc(s)

Conrad Electronic

€ 22.99^*

ALPS 194449 High Grade Stereo Motor Potentiometer

ALPS 194449 High Grade Stereo Motor Potentiometer

Conrad Electronic

€ 29.99^*

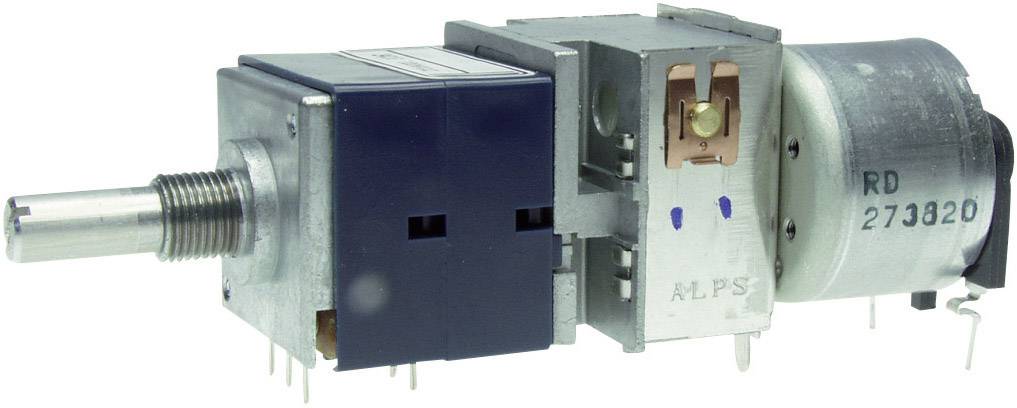

ALPS 401722 High Grade Stereo Motor Potentiometer
