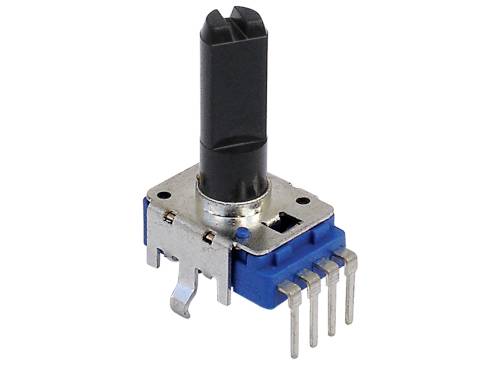

Bourns PTV111-3415A-B103 Single turn rotary pot + mid-position detent, 2-pos 0.05 W 10 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Potentiometer features
+ mid-position detent
2-pos
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.05 W
Datasheet (PDF)
Number
Total (€ 2.661 / piece)
€ 2.66
incl. VAT
14-day return policy included
Highlights & Details
Carbon potentiometer, 10 kΩ, 0.05 W, linear, solder pin, PTV111-3415A-B103
- 10 kΩ
- linear
Our service for you
Technical specifications
- Product type
Single turn rotary pot
- Potentiometer features
+ mid-position detent
2-pos
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.05 W
- Connection
Solder pins
- Mechanical angle
300°
- Type
straight
- Axle Ø
6 mm
- CS
2.5 mm
- Length
15 mm
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Content
1 pc(s)
- Type
PTV111-3415A-B103
- RoHS-compliant
Yes
- No. of rotations
1
Documents & Downloads
Datasheet
Datasheet 2996440 Bourns PTV111-3415A-B103 Single turn rotary pot + mid-position detent, 2-pos 0.05 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996440 Bourns PTV111-3415A-B103 Single turn rotary pot + mid-position detent, 2-pos 0.05 W 10 kΩ 1 pc(s)
Description
Carbon potentiometer, PTV111-3415A-B103, Bourns carbon potentiometer, 10 kΩ, 0.05 W, Soldering pin Features * carbon element * insulated shaft * snap-in clip * center detent * two-way option
This text is machine translated.
This text is machine translated.
Scope of delivery
- PTV111-3415A-B103.
