Brennenstuhl CEE power distributor 1151600020 1151600020 400 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 59.99 / piece)
€ 59.99
incl. VAT
14-day return policy included
Highlights & Details
Power station CEE1 IP44
- Plug CEE400V/16A and socket CEE400V/16A
- 3 protective contact sockets 3x230V/16A
- 2 m cable H07RN-F5G2.5, IP44
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE socket (5-pin, 16 A)
PG socket
- No. of PG sockets
3
- Inputs
1
- Outputs
4
- Nominal input voltage
400 V
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 3G 2,5 mm²
- Factory colour
Black
- Weight
1.5 kg
- Dim
(L x W x H) 350 x 135 x 110 mm
- Length
350 mm
- Width
135 mm
- Height
110 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2303762 Brennenstuhl CEE power distributor 1151600020 1151600020 400 V
User & Safety Instructions
User & Safety Instructions 2303762 Brennenstuhl CEE power distributor 1151600020 1151600020 400 V
Conformity certificate
Conformity certificate 2303762 Brennenstuhl CEE power distributor 1151600020 1151600020 400 V
Description
The power station of Brennenstuhl captivates by its quality and safety in all areas. The current distributor is extremely robust and is suitable for Ideal for the construction site application or generally for the industrial and handicraft area. The power distribution with its housing made of highly break plastic can be easily attached to a wall. In addition, the construction current distributor impresses by its following features:
* Ideal for tough use

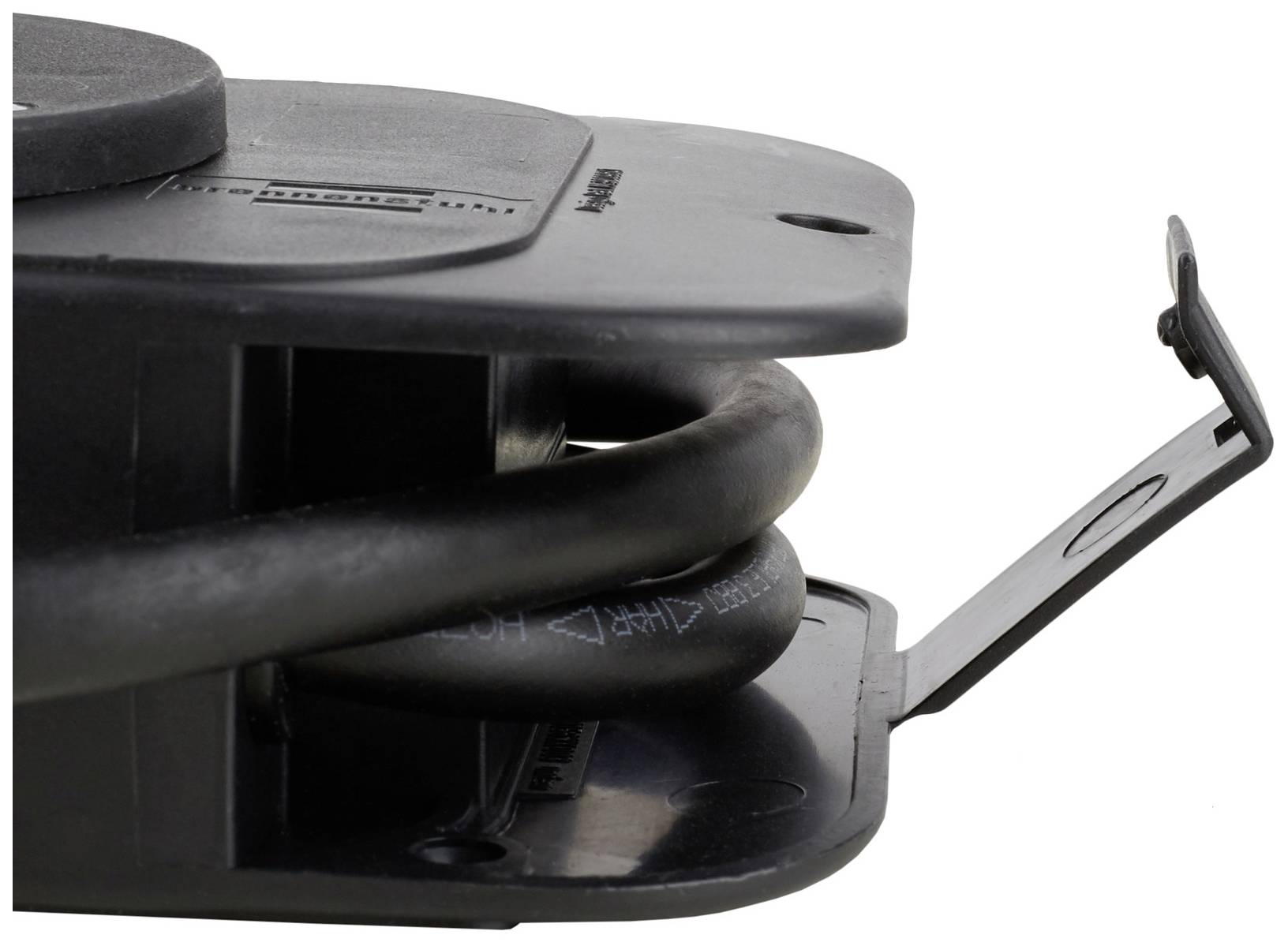

* Practical wrapping device for storing the cable
* Protection class: IP44

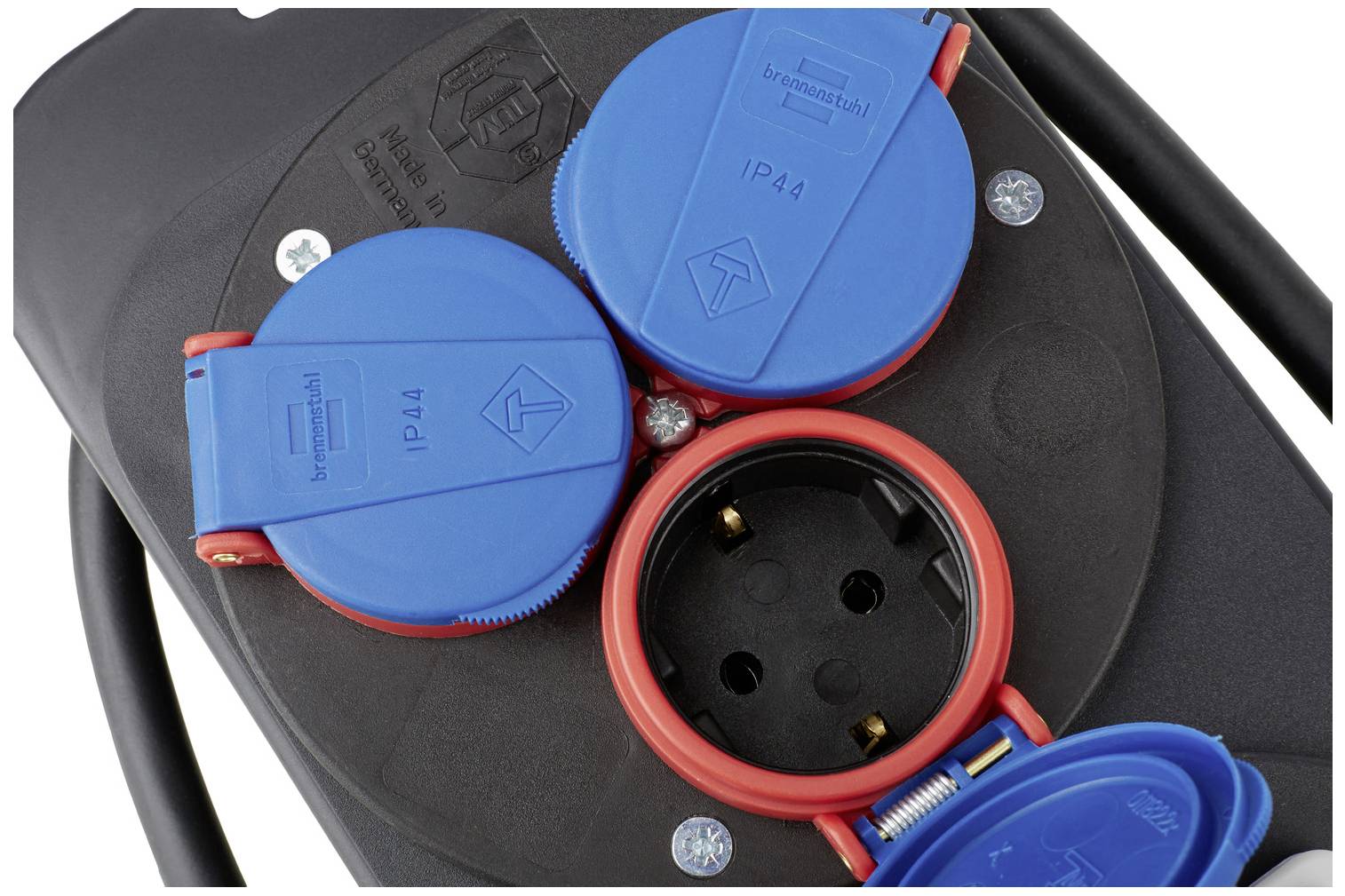

* Sockets: 1x CEE 400V/16A, 3x 230V protective contact sockets (the three safety outlets are connected to three phases)
* Cable length: 2m
* Cable quality: Rubber neoprene
* CABLE NAME: H07RN-F 5G2.5
* Maximum current carrying capacity: 16 A.
This text is machine translated.
* Ideal for tough use
* Practical wrapping device for storing the cable
* Protection class: IP44
* Sockets: 1x CEE 400V/16A, 3x 230V protective contact sockets (the three safety outlets are connected to three phases)
* Cable length: 2m
* Cable quality: Rubber neoprene
* CABLE NAME: H07RN-F 5G2.5
* Maximum current carrying capacity: 16 A.
This text is machine translated.
Features
- Ideal for tough applications.
- Housing made of highly break plastic.
- Convenient winding device for storage of the cable.
- Suitable for wall mounting.
- The 3 protective contact sockets 230 V are connected to three phases
- Infeed/ connection possibility: Supply with plug
- system Plug system Plug: CEE 16A 3P+N+PE (5p) 400V
Scope of delivery
- POWER STATION CEE1 IP44 H07RN-F 5G2.5
