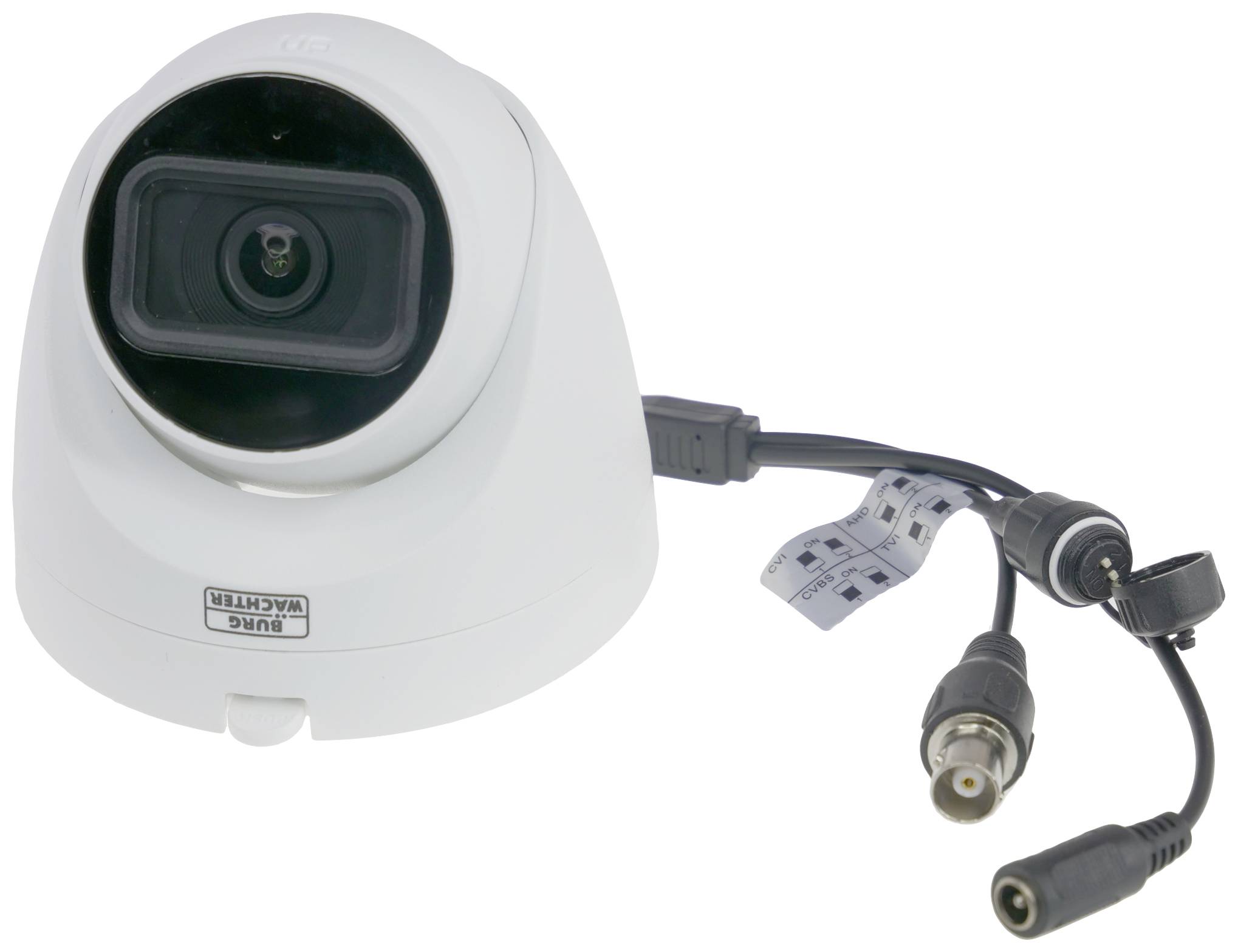

Buy Burg Wächter BWFC-260KEIF 505112 AHD, Analog, HD-TVI, HD-CVI-CCTV camera 1920 x 1080 p

Surveillance camera with wired connections, suitable for indoor and outdoor use.

Datasheet (PDF)

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 62.18 / piece)

€

Report legal concerns

Highlights & Details

AHD, Analog, HD-TVI, HD-CVI-Dome camera 1920 x 1080 p Burg Wächter BWFC-260KEIF 505112, Indoors

HD-CVI day/night IR-dome camera
VIDEO SIGNAL: ANALOGUE 960H (PAL / NTSC) / CVI / TVI / AHD
With integrated IR-headlight

Technical specifications

Angle of view 127° diagonal

Camera type: Dome camera

Sensor size: 9.07 mm (1/2.8")

Sensor type: CMOS

Focal length: 2,8 mm

Viewing angle: 107

Vertical viewing angle: 56°

Additional IR light: Yes

IR range (max.): 25 m

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.002 lx

Used at: Indoors

Operating temperature: 0 - 50

Dim: (Ø x H) 97.1 mm x 93 mm

Height: 93 mm

(Ø): 97.1 mm

Weight: 170 g

Resolution (max.): 1920 x 1080 p

Signal standard: AHD
Analog
HD-TVI
HD-CVI

CCTV features: IR LEDs
White spotlight

Product type: CCTV camera

Documents & Downloads

Datasheet

Datasheet 2895522 Burg Wächter BWFC-260KEIF 505112 AHD, Analog, HD-TVI, HD-CVI-CCTV camera 1920 x 1080 p

User & Safety Instructions

User & Safety Instructions 2895522 Burg Wächter BWFC-260KEIF 505112 AHD, Analog, HD-TVI, HD-CVI-CCTV camera 1920 x 1080 p

Description

BWFC multi-standard (HD-CVI, TVI, AHD, CVBS) day/night Balleye camera for indoors. The built-in IR floodlight, with a range of up to 25 m and a lens with a fixed focal length of 107° field of view (2.8 mm), makes THE BURG GUARD camera not only suitable for active lighting, but also for use in darkened rooms. With full HD resolution, the model delivers fluid 25 images/second and is thus ideal for applications in park planes, cellars, emergency corridors and for general indoor monitoring.

The simple design fits well in the usual application scenarios
Simple installation and alignment
High transmission range through AHD/CVI/TVI technology
Low power consumption
Compact design

This text is machine translated.
