ABUS TVCC34011 TVCC34011 Analog-CCTV camera 720 x 480 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
14 days return policy included

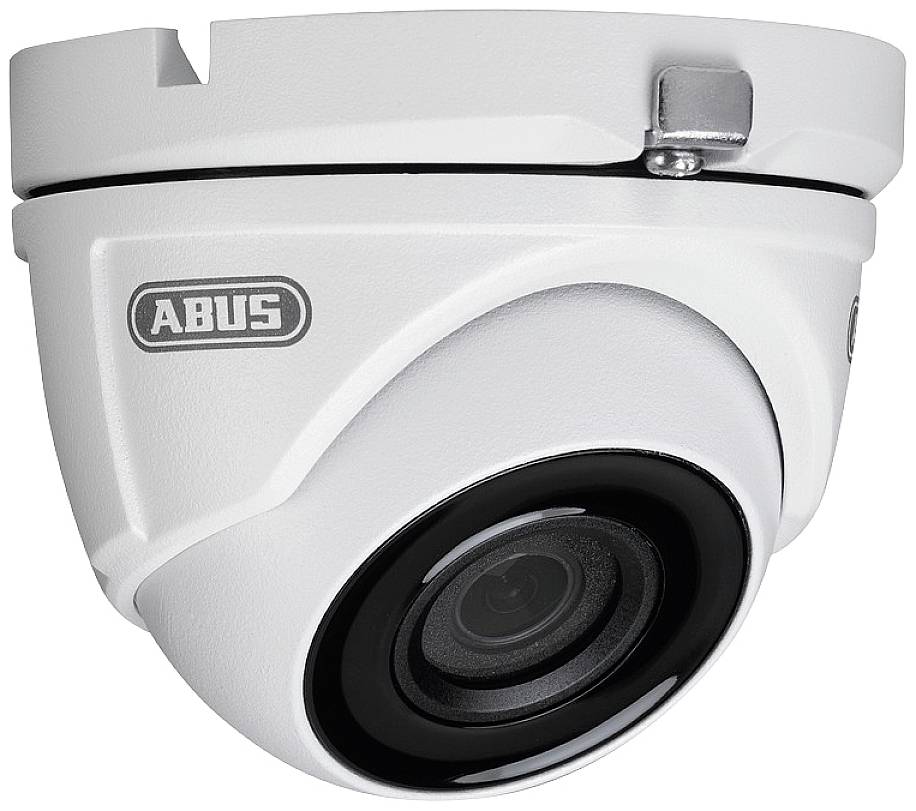

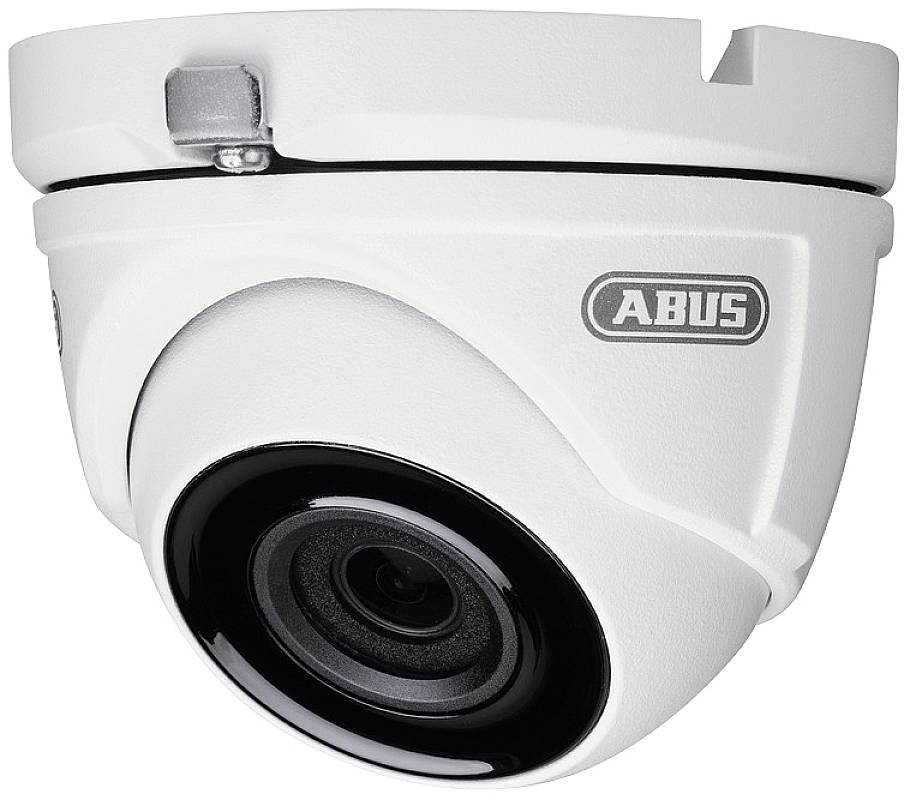

Analog-Dome camera 720 x 480 p ABUS TVCC34011 TVCC34011, Outdoors
Highlights & Details
- Compact day/night view Outdoor Dome cameraVersatile camera mounting options – whether indoors orSimple design and high protection class (IP67)
Technical specifications
- Colour: white
- Product type
CCTV camera
- Camera type
Dome camera
- Resolution (max.)
720 x 480 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
2,8 mm
- CCTV features
IR LEDs
- Viewing angle
75°
- Signal standard
Analog
- Power supply
PSU
- IR range (max.)
20 m
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.1 lx
- Used at
Outdoors
IP67
- Operating temperature
-20 °C - +60 °C
- Dim
(Ø x H) 90 mm x 68 mm
- Height
68 mm
- (Ø)
90 mm
- Weight
250 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2564527 ABUS TVCC34011 TVCC34011 Analog-CCTV camera 720 x 480 p
User & Safety Instructions
User & Safety Instructions 2564527 ABUS TVCC34011 TVCC34011 Analog-CCTV camera 720 x 480 p
Description
Discreet surveillance indoors or outdoorsThe analogueue day/night view outdoor dome camera is particularly suitable for extending the 4-channel recorder TVVR33601 and the video surveillance set TVVR33620D/T. It captivates by its simple design and the high protection class (IP67), through which it can be operated in indoor as well as in outdoor areas. The camera has built-in IR LEDs for 24/7 use day and night. With a high, detailed resolution of 600 TVL, it delivers accurate video images that allow accurate person recognition.Flexible mounting optionsThe included 30 m combination cable and power supply ensure quick and easy installation.The effective IR range depends on the place of use. Light absorbing surfaces or no IR light reflecting objects in the field of view reduce the IR range or require a video image that is too dark. Furthermore, reflective objects in direct camera proximity (gutter, wall) can cause disturbing reflections of the IR light in the image.
This text is machine translated.
This text is machine translated.
Features
- High detailed resolution thanks to 600 TVLIncl. 1 x 30 meter coaxial cableIdeal for expansion of TVVR33601 or TVVR33620DDay/night switching: Electromechanical IR-Cut filterWhite balance: Auto.
Scope of delivery
- 1 x day/night mini outdoor dome camera
- 1 x power supply including EU, AU and UK adapter
- 1 x 30 m combination cable
- User manual.
