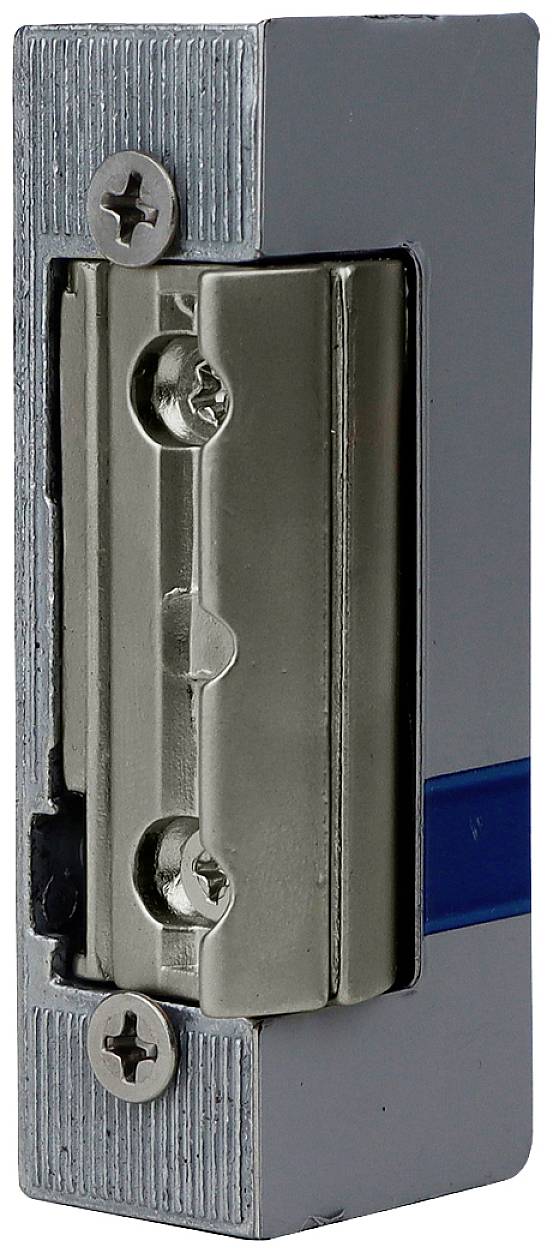

CDVI Security F0502000049 Automatic door opener
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 5 Piece(s) available
Highlights & Details
CDVI Electric Door Opener, Radius Trap, 100% ED
- Can be used at left or rightWith radius trapInsert for 12 V DC
Technical specifications
- Power supply 10 - 24 V DCPower consumption Working current (100 % ED): 10 - 24 V AC / DC = max. 540 mAHolding force: Up to 280 kgCycles: 300,000 actuations
- Operating voltage
12 V DC
- Product type
Automatic door opener
- Door opener dimensions
75 x 20.5 x 28 mm
- Door stop
Left/Right
- Mechanical unlocking
No
Documents & Downloads
Datasheet
Datasheet 2734744 CDVI Security F0502000049 Automatic door opener
User & Safety Instructions
User & Safety Instructions 2734744 CDVI Security F0502000049 Automatic door opener
Description
The S series CDVI electric door openers have a wide range of uses. The electric door openers are symmetrical and as such are suitable for doors DIN left and DIN right. The closing plates are adjustable and are therefore suitable for almost all doors. All E-door openers from CDVI have an integrated varistor, which protects against damage through internal voltage / residual voltage. Therefore, a (free wheel) diode is no longer required. All these features lead to universally usable devices, the S-series devices can be used almost everywhere without restrictions.
This text is machine translated.
This text is machine translated.
Features
- Without mechanical unlockingLock plate adjustableMonitoring the door position, mechanicalWith connection terminalsInstallation versionLock stop adjustable (up to 2 mm)With varistor (protection against internal voltage / residual voltage)Usable plug versions: T1I, T290.
Scope of delivery
- 1 x door opener
