Celduc SSR SGTR9854310-WF031 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

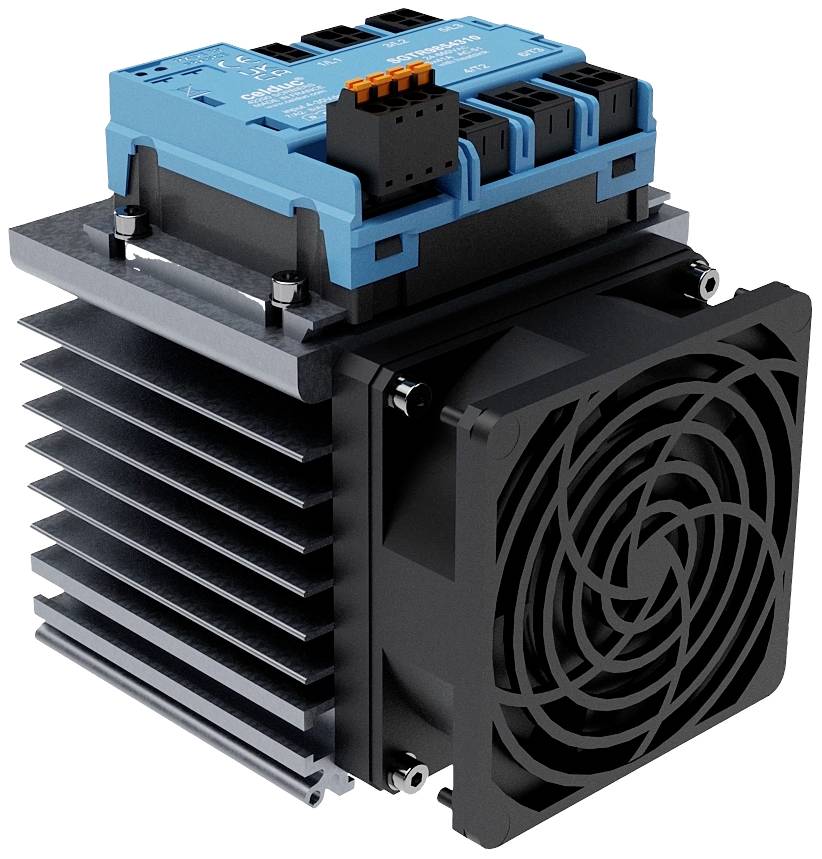

'Industrial cooling unit with black fan and cooling fins, with a blue control unit mounted on top.'
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
660 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 645.00 / piece)
€ 645.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Thyristor rated values: 3x50A
  • Max. Switching current (A): 3x41A AC-1 @40°C
  • Function AC on/off Zero-Cross
  • Relay type (AC or DC): AC
  • Series: SGTR9 - heatsink included
  • Heatsink included: Yes
  • Housing type: Standard
  • Applications: (AC-1 / LC A) heating elements
  • Number of switched phases: 3 phases - 1 control
  • Protection (RC, varistor, TV): TVS
Packaging type

Piece

Product type

SSR

Type

SGTR9854310-WF031

Switching type

Zero crossing

Connection

Push-in connector

Control voltage (min.)

4 V DC

Control voltage (max.)

30 V DC

Control voltage range

4 - 30 V DC

Control current (max.)

25 mA

Surge current (max.)

750 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

660 V AC

Current load (max.)

41 A

Output voltage (max.)

660 V AC

Max. output current

41 A

Contact type

1 maker

Min. temperature

-40 °C

Max. temperature

+100 °C

Permanent current (max.)

41 A

Content

1 pc(s)

Mounting type

DIN rail

Documents & Downloads

Datasheet

Datasheet 3222012 Celduc SSR SGTR9854310-WF031 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3222012 Celduc SSR SGTR9854310-WF031 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

Description

CELLDUC SSR - SGTR9854310-WF031
