Celduc SSR SMB8850210 12 A Switching voltage (max.): 640 V AC Zero crossing 1 pc(s)

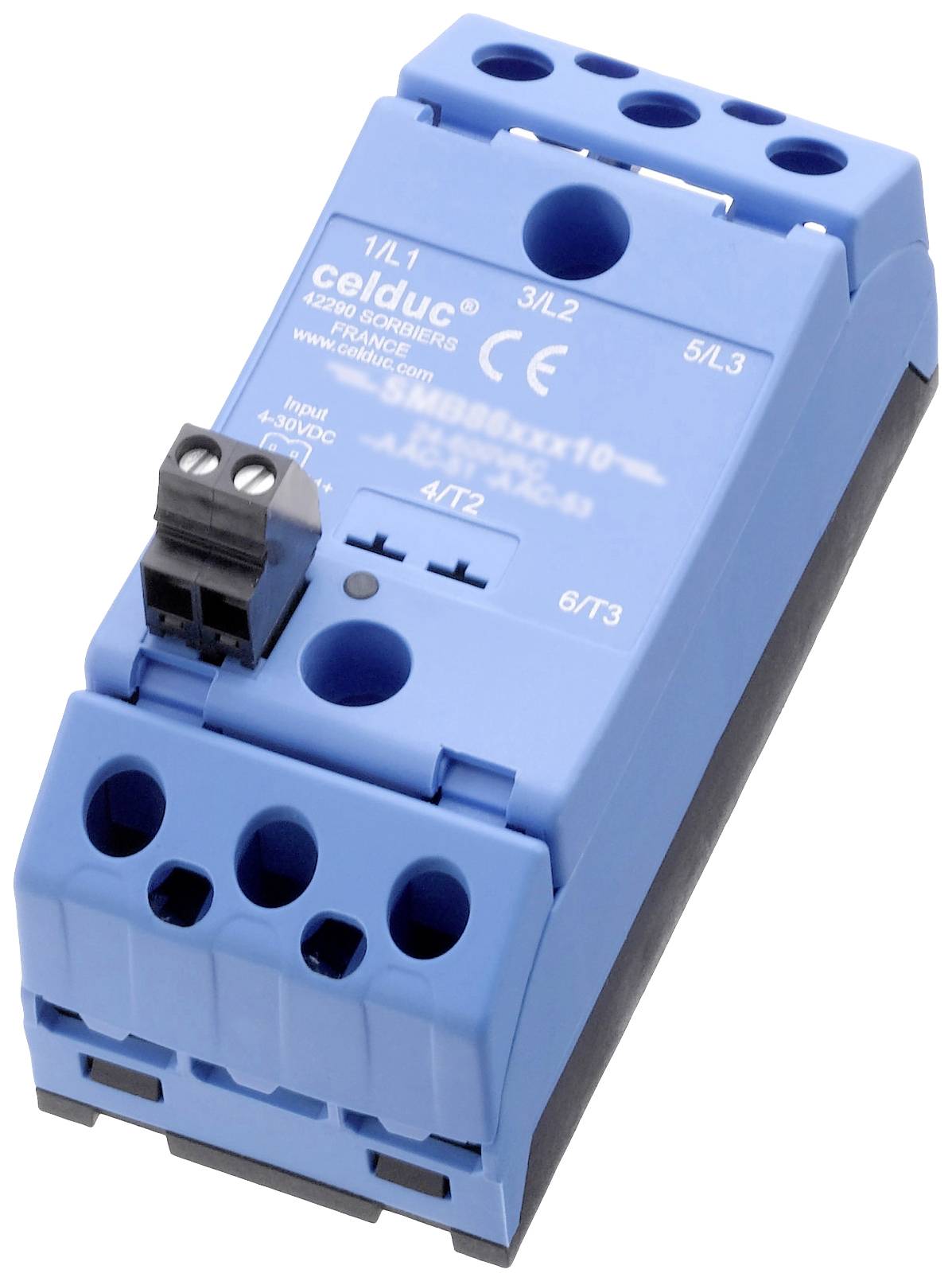

A blue solid-state relay block with multiple terminal connections. It displays technical details and manufacturer contact information.
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
640 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 209.99 / piece)
€ 2,099.90
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Thyristor rated values: 3x50A
  • Max. Switching current (A): 3x12A AC-3 @40°C
  • 3x30A AC-1 @ 40°C
  • Function AC on/off Zero-Cross
  • Relay type (AC or DC): AC
  • Series SMB
  • Heatsink included: No.
  • Housing type:Low profile
  • Applications: (AC-1 / LC A) heating elements
  • (AC-3 / LC B) MOTORS
  • (AC-5a / LC C) discharge lamps
  • (AC-5a / LC D) incandescent lamps and infrared lamps
  • (AC-5b/DC-6) LEDs
  • (AC-6b / LC F) Capacitors
  • (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
  • (AC-14/AC-15/DC-13/DC-14) CONTACTORS
  • Number of switched phases: 2 phases - 1 control
  • Protection (RC, varistor, TV) VDR
Packaging type

Piece

Product type

SSR

Type

SMB8850210

Switching type

Zero crossing

Connection

Screws

Control voltage (min.)

4 V DC

Control voltage (max.)

30 V DC

Control voltage range

4 - 30 V DC

Surge current (max.)

750 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

640 V AC

Current load (max.)

12 A

Output voltage (max.)

640 V AC

Max. output current

30 A

Contact type

1 maker

Min. temperature

-40 °C

Max. temperature

+85 °C

Permanent current (max.)

30 A

Content

1 pc(s)

Mounting type

Screws

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3222021 Celduc SSR SMB8850210 12 A Switching voltage (max.): 640 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3222021 Celduc SSR SMB8850210 12 A Switching voltage (max.): 640 V AC Zero crossing 1 pc(s)

Description

Cellduc SSR - SMB8850210
