Celduc SSR SO885960-1LD12 50 A Switching voltage (max.): 690 V AC Zero crossing 1 pc(s)

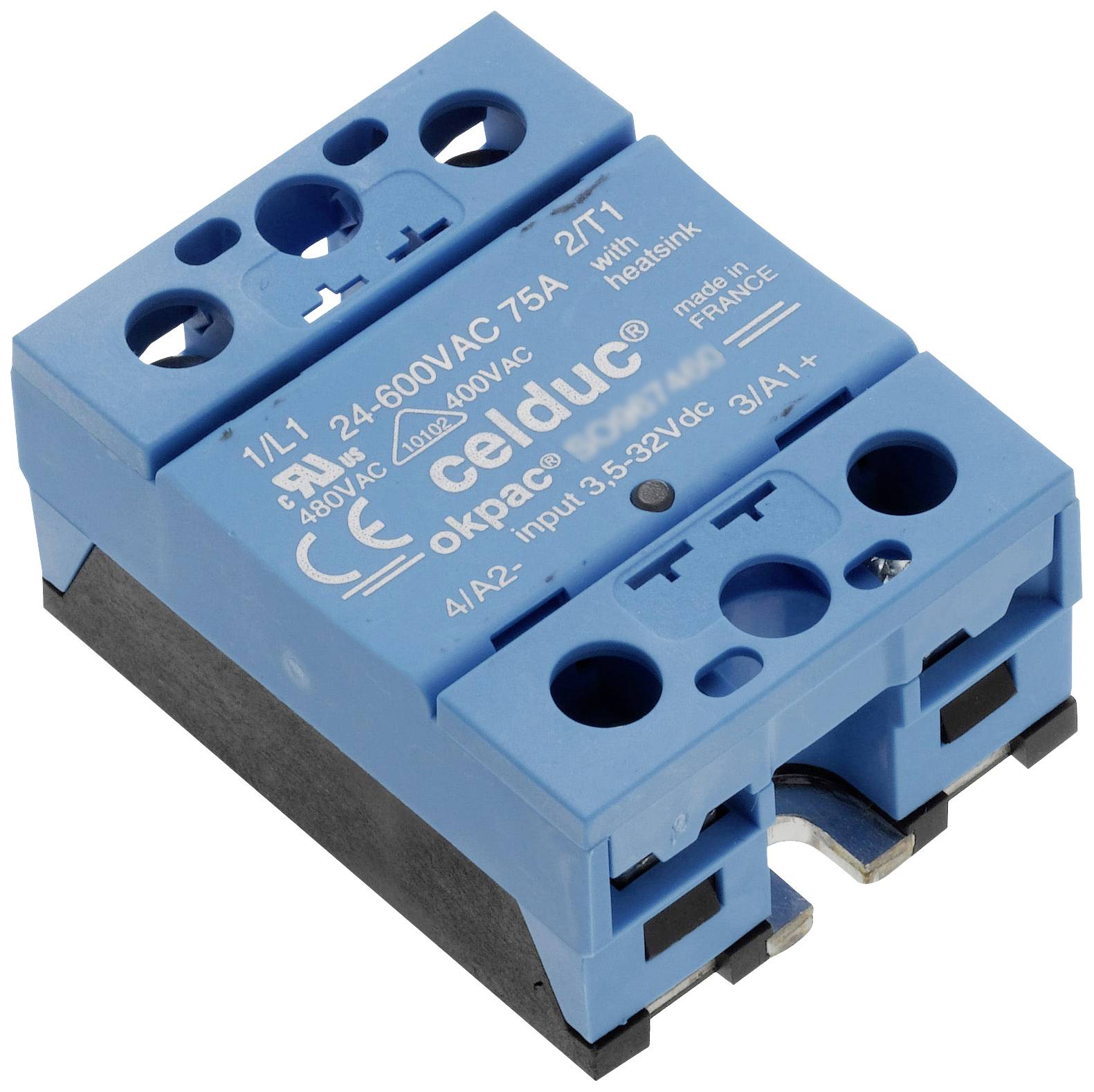

A blue solid-state relay with specifications: 24-600 VAC, 75 A. Manufacturer: Celduc. Contains safety and input information.
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
20 V AC
20 V DC
Control voltage (max.)
265 V AC
265 V DC
Switching voltage (max.)
690 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 144.99 / piece)
€ 1,449.90
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Thyristor rated values: 50A
  • Max. Switching current (A) 50A
  • Function AC on/off Zero-Cross
  • Relay type (AC or DC): AC
  • SO8 Series
  • Heatsink included: No.
  • Casing type: Hockey puck
  • Standard
  • Applications: (AC-1 / LC A) heating elements
  • (AC-3 / LC B) MOTORS
  • (AC-5a / LC C) discharge lamps
  • (AC-5a / LC D) incandescent lamps and infrared lamps
  • (AC-5b/DC-6) LEDs
  • (AC-6b / LC F) Capacitors
  • (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
  • (AC-14/AC-15/DC-13/DC-14) CONTACTORS
  • Number of switched phases: 1 phase
Packaging type

Piece

Product type

SSR

Type

SO885960-1LD12

Switching type

Zero crossing

Connection

Screws

Control voltage (min.)

20 V AC

20 V DC

Control voltage (max.)

265 V AC

265 V DC

Control voltage range

20, 20 - 265, 265 V AC, V DC

Control current (max.)

10 mA

Surge current (max.)

750 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

690 V AC

Current load (max.)

50 A

Output voltage (max.)

690 V AC

Max. output current

50 A

Contact type

1 maker

Min. temperature

-55 °C

Max. temperature

+100 °C

Content

1 pc(s)

Mounting type

DIN rail

Documents & Downloads

Datasheet

Datasheet 3222034 Celduc SSR SO885960-1LD12 50 A Switching voltage (max.): 690 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3222034 Celduc SSR SO885960-1LD12 50 A Switching voltage (max.): 690 V AC Zero crossing 1 pc(s)

Description

CELLDUC SSR - SO885960-1LD12
