Celduc SSR SO967960 90 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

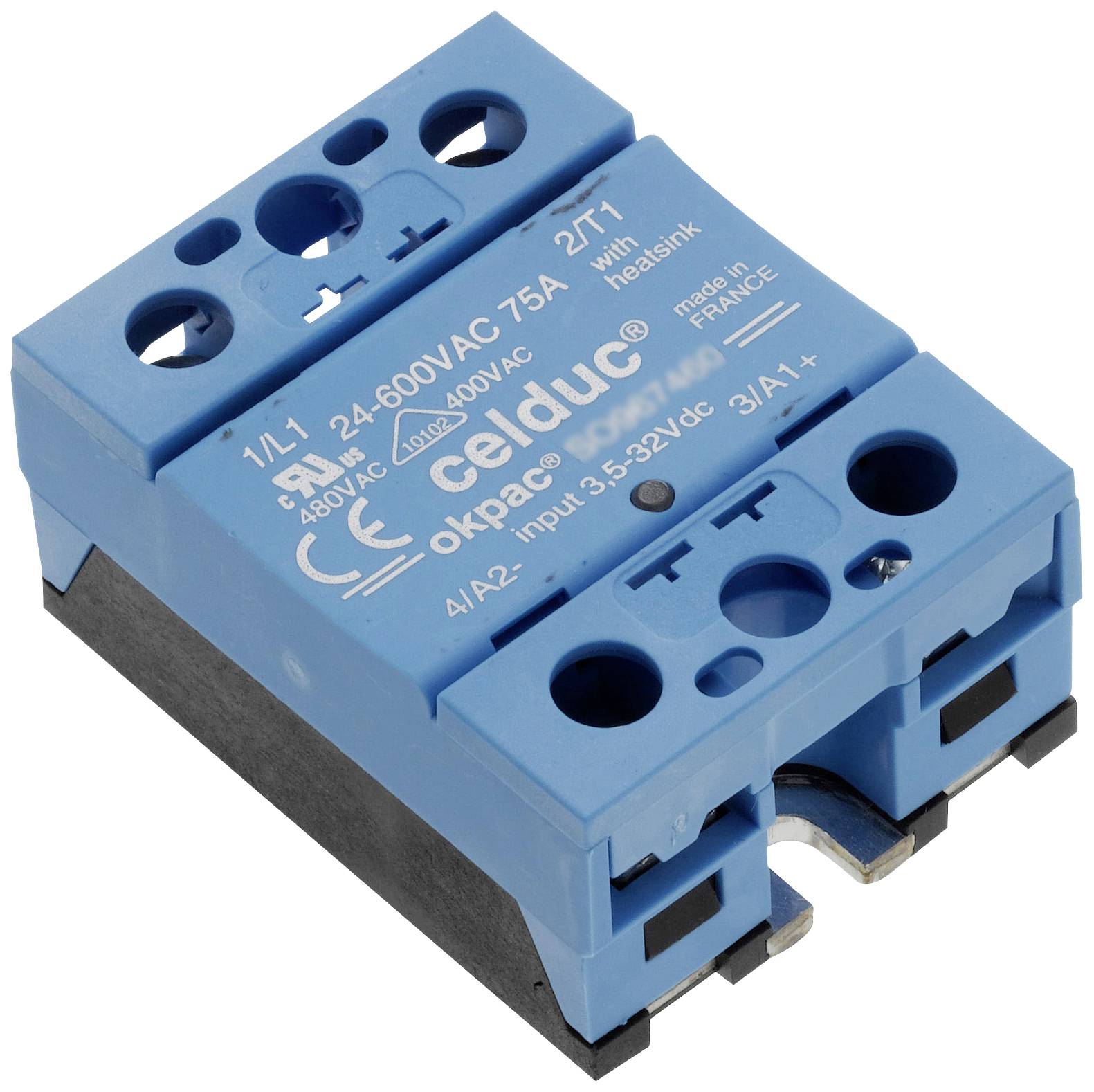

Blue electrical switch with 'celduc relais' inscription, details of electrical current and connection points, e.g. '24-600VAC 75A'.
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
20 V AC
20 V DC
Control voltage (max.)
265 V AC
265 V DC
Switching voltage (max.)
600 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 19
Multiple: 19
Total (€ 81.99 / piece)
€ 1,557.81
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Thyristor rated values: 90A
  • Max. Switching current (A): 90A
  • Function AC on/off Zero-Cross
  • Relay type (AC or DC): AC
  • SO9 Series
  • Heatsink included: No.
  • Casing type: Hockey puck
  • Standard
  • Applications: (AC-1 / LC A) heating elements
  • Number of switched phases: 1 phase
Packaging type

Piece

Product type

SSR

Type

SO967960

Switching type

Zero crossing

Connection

Screws

Control voltage (min.)

20 V AC

20 V DC

Control voltage (max.)

265 V AC

265 V DC

Control voltage range

20, 20 - 265, 265 V AC, V DC

Control current (max.)

10 mA

Surge current (max.)

1200 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

600 V AC

Current load (max.)

90 A

Output voltage (max.)

600 V AC

Max. output current

90 A

Contact type

1 maker

Min. temperature

-40 °C

Max. temperature

+100 °C

Content

1 pc(s)

Mounting type

Screws

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3222046 Celduc SSR SO967960 90 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3222046 Celduc SSR SO967960 90 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Description

Cellduc SSR - SO967960
