Celduc SSR SOR965440-HE-WF114 34 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

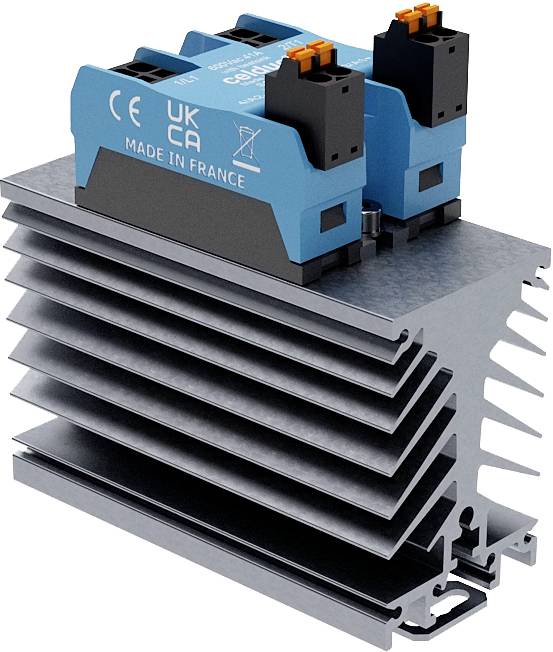

Industrial component with blue and black elements, marked 'Made in France' and 'UK CA'. Features multiple cooling fins for heat dissipation.
Image similar
Product type
SSR
Control voltage (min.)
3.5 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
660 V AC
Current load (max.)
34 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 134.99 / piece)
€ 134.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Thyristor rated values: 50A
  • Max. SWITCHING CURRENT (A): 34A AC-1 @40°C
  • Function AC on/off Zero-Cross
  • Relay type (AC or DC): AC
  • Series: SOR9 - heat sink included
  • Heatsink included: Yes
  • Casing type: Hockey puck
  • Standard
  • Applications: (AC-1 / LC A) heating elements
  • Number of switched phases: 1 phase
  • Protection (RC, varistor, TV): TVS
Product type

SSR

Type

SOR965440-HE-WF114

Switching type

Zero crossing

Connection

Push-in connector

Control voltage (min.)

3.5 V DC

Control voltage (max.)

32 V DC

Control voltage range

3.5 - 32 V DC

Control current (max.)

13 mA

Surge current (max.)

580 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

660 V AC

Current load (max.)

34 A

Output voltage (max.)

660 V AC

Max. output current

34 A

Contact type

1 maker

Min. temperature

-40 °C

Max. temperature

+100 °C

Content

1 pc(s)

Mounting type

DIN rail

Documents & Downloads

Datasheet

Datasheet 3222072 Celduc SSR SOR965440-HE-WF114 34 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3222072 Celduc SSR SOR965440-HE-WF114 34 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

Description

CELLDUC SSR – SOR965440-HE-WF114
