Buy Celsa TQ 27 250/5A 1VA Kl. 1 70006-1050 Cable current transformer Primary current 250 A Secondary current 5 A Line feed-

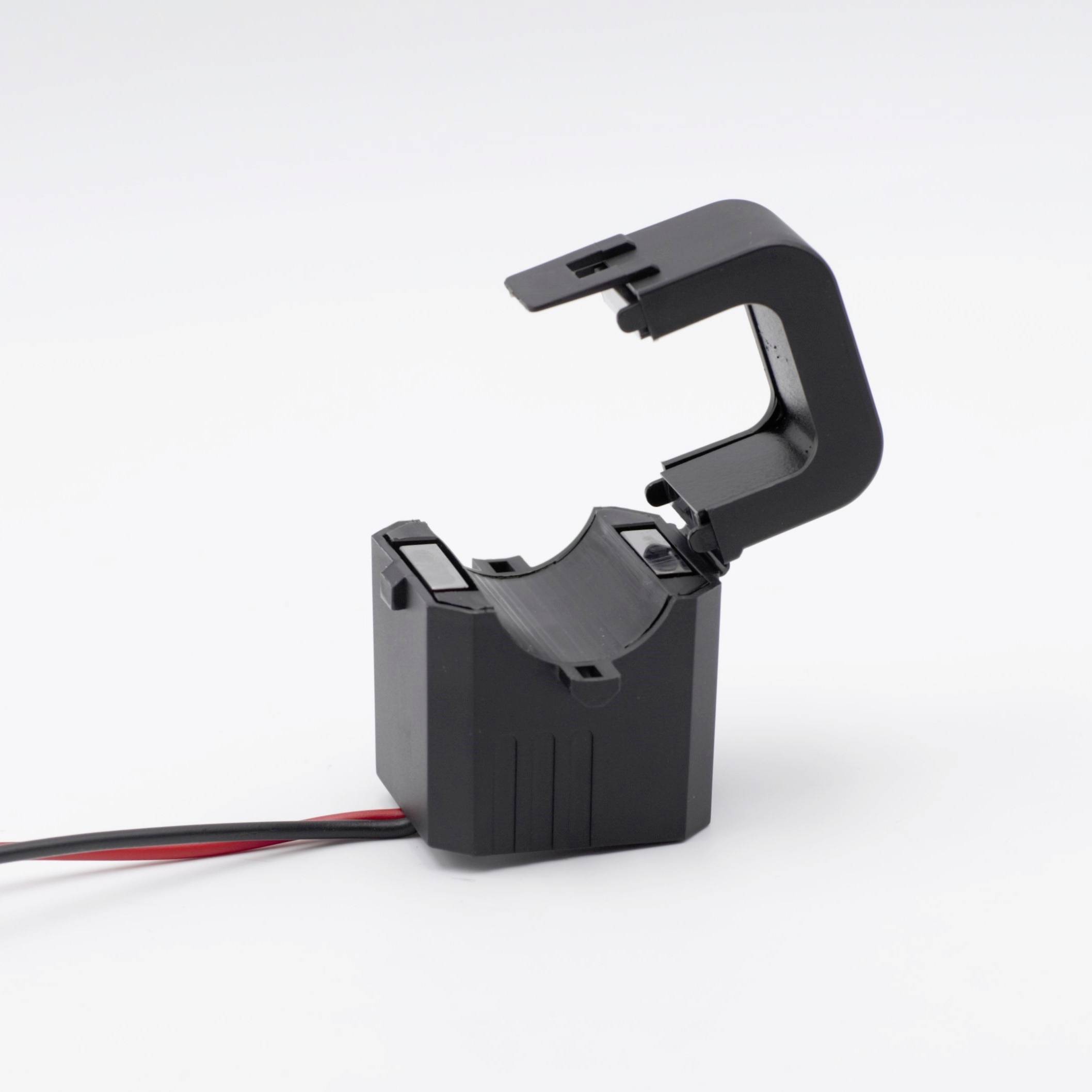

An open black current sensor with two wires. The sensor has a rectangular shape and is placed on a white background.

Technical drawing of an electrical sensor with cables and dimensions: Height 65 mm, Width 48 mm, Length 57.2 mm. Side and front view.

Technical drawing of a part named TQ 27 with three views and dimensions. Top: Plan view. Bottom left: Front view. Bottom right: Side view.

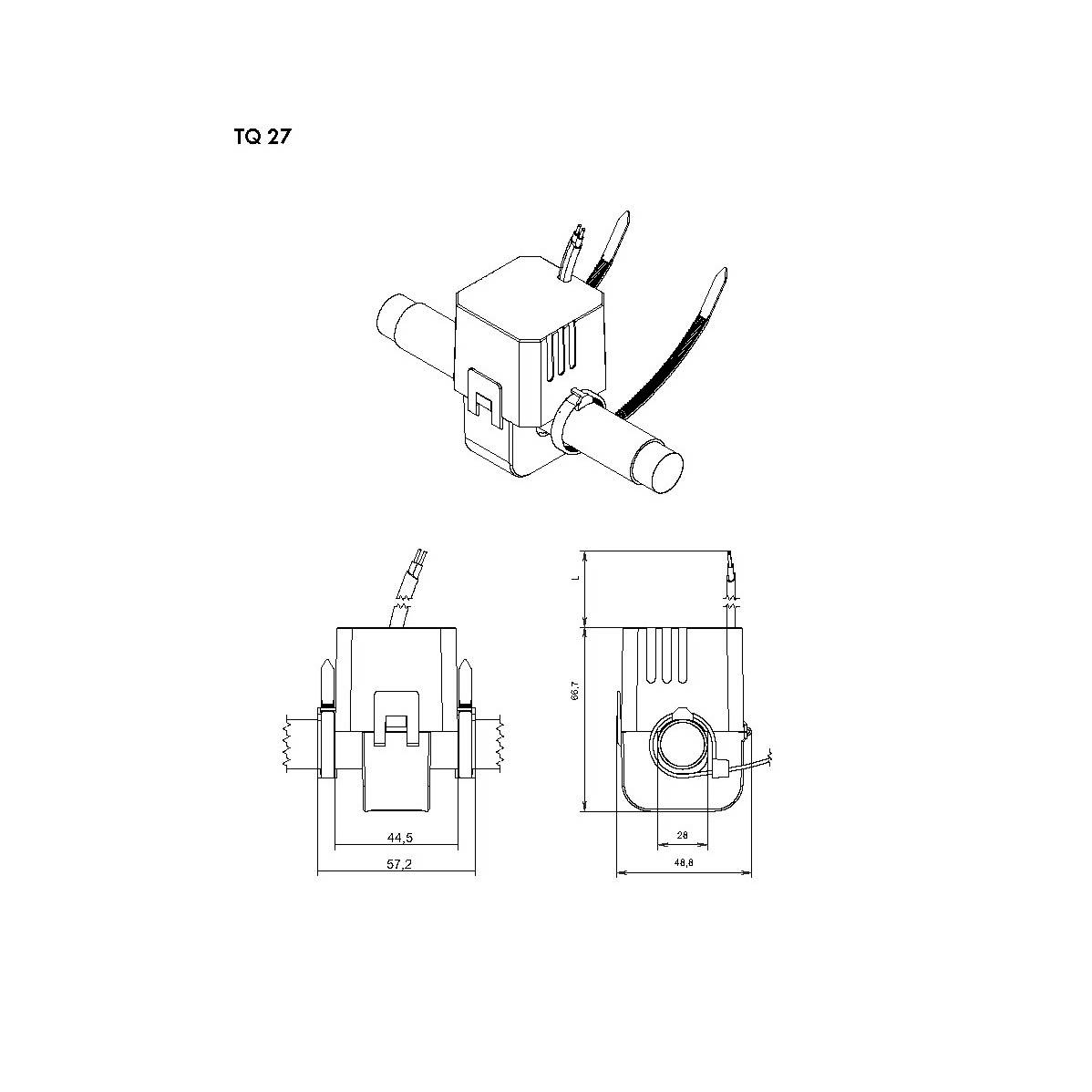

Technical drawing of a device with dimensions: width 57.7 mm and depth 44.5 mm. Shows connections and cable outlets. Label 'TQ 27'.

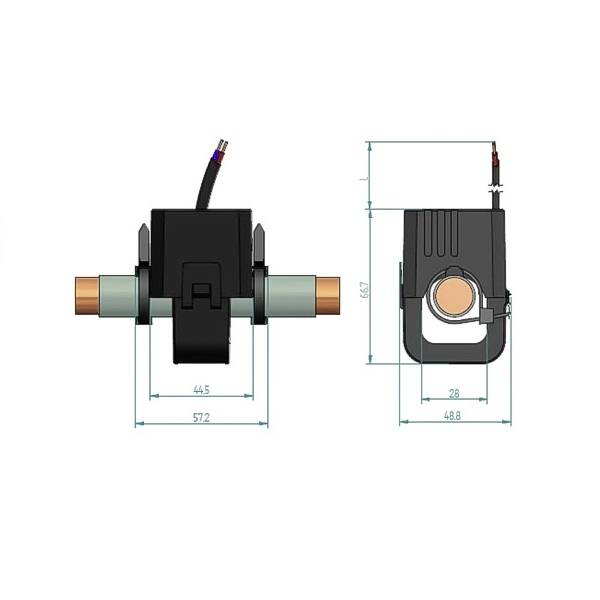

A technical diagram shows an electrical device with cable connections, depicted in front and side views with dimensional specifications.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

CABLEconversion current transformer TQ 27 250/5A 1VA Cl. 1

Line feed-through diameter 28 mm

Technical specifications

Product type: Cable current transformer

Primary current: 250 A

Secondary current: 5 A

Line feed-through diameter: 28 mm

Accuracy class: 1

Type: TQ 27 250/5A 1VA Kl. 1

Line feed-through (W): 0 mm

Line feed-through (H): 0 mm

: Cable rebuilding current converter

: 28 mm

: 1

: FALSE

: 250 A

: FALSE

: 1 VA

: 5 A

: FS 5

: TRUE

: FALSE

: 1

: 0-0 mm

: 0-0 mm

: Cable

Documents & Downloads

Datasheet

Datasheet 3131456 Celsa TQ 27 250/5A 1VA Kl. 1 70006-1050 Cable current transformer Primary current 250 A Secondary current 5 A Line feed-

User & Safety Instructions

User & Safety Instructions 3131456 Celsa TQ 27 250/5A 1VA Kl. 1 70006-1050 Cable current transformer Primary current 250 A Secondary current 5 A Line feed-

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
