CESYS C028529 USB-Isolator USB 2.0 isolator 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Only 2 Piece(s) available
Highlights & Details

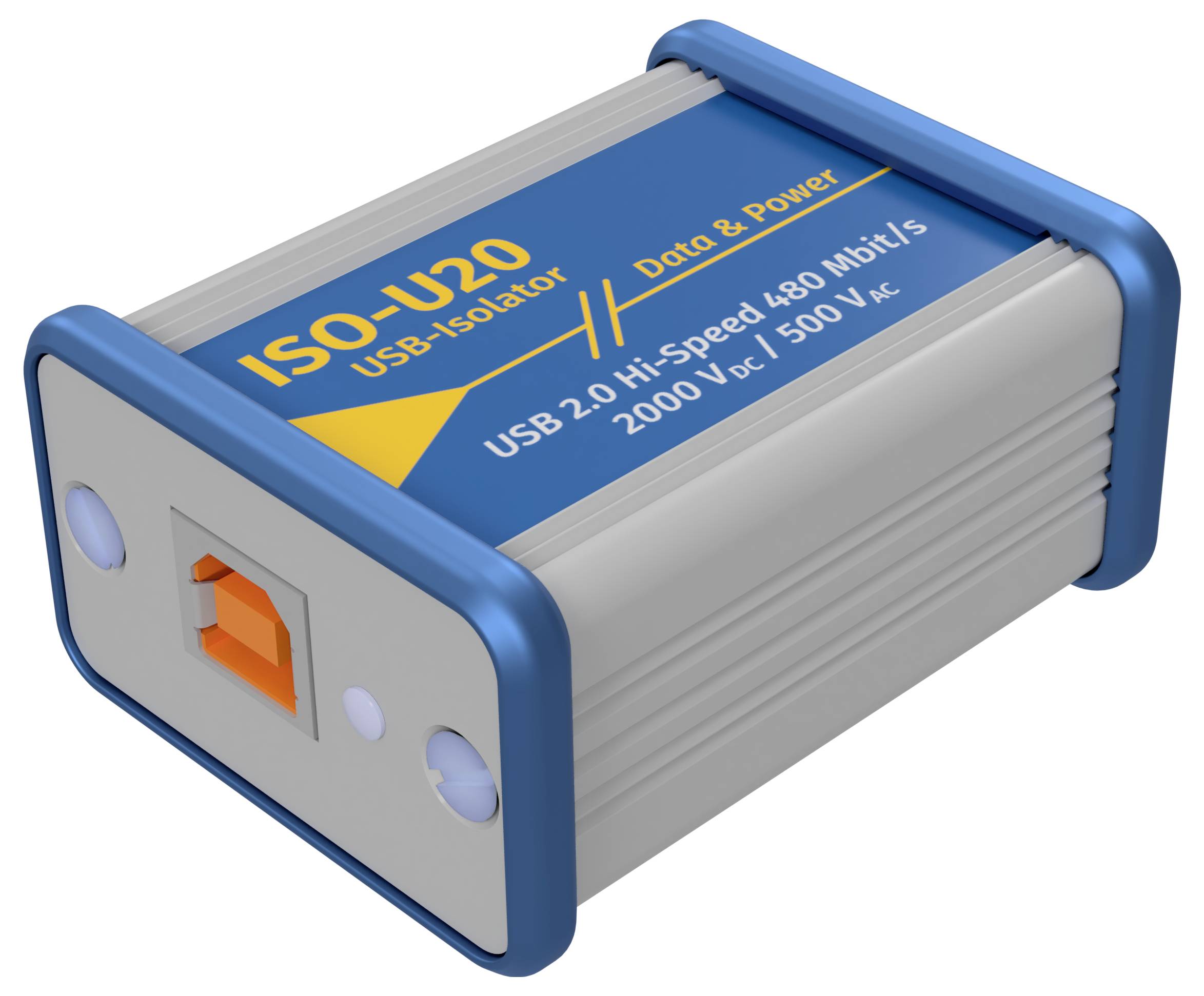

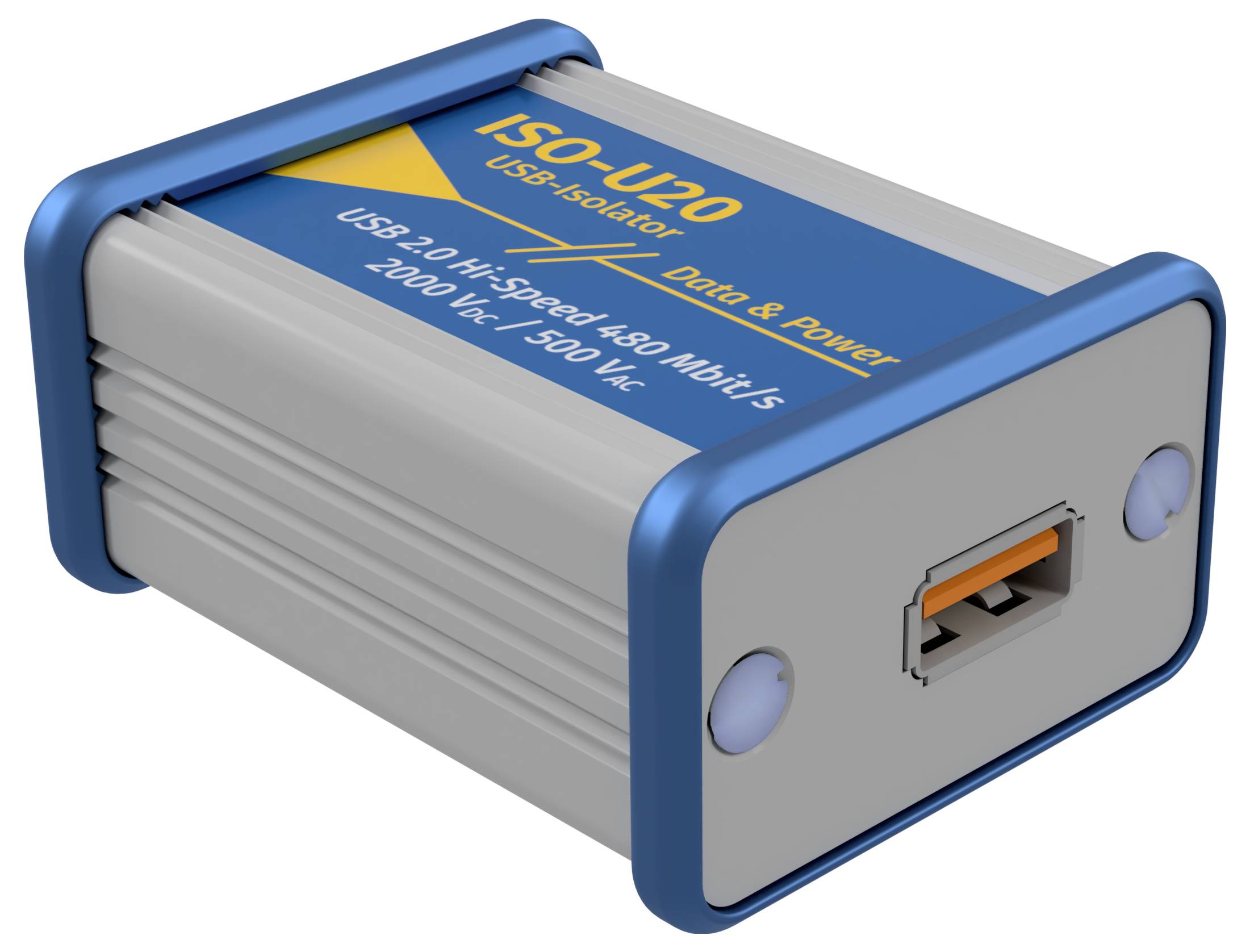

USB 2.0 isolator, electrical isolation host/device
- USB 2.0, 480 Mbit/s, insulation 2 kVDC, 500 VAC, tested according to EN 62368-1
Technical specifications
- USB Specification USB 2.0 Hi-Speed (480 Mbit/s)
- Input voltage max. 5.5 V
- Current limit 340 mA (Hi-Speed)
- DC insulation 2000 V (for 60s)
- AC insulation 500 V (for 60s)
- Ambient temperatures --40°C to +40°C.
- Casing type: Aluminium casing
- Product type
USB 2.0 isolator
- Type
Galvanic separation
- Width
57 mm
- Height
45 mm
- Depth
28 mm
- Type
USB-Isolator
Documents & Downloads
Datasheet
Datasheet 2114029 CESYS C028529 USB-Isolator USB 2.0 isolator 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2114029 CESYS C028529 USB-Isolator USB 2.0 isolator 1 pc(s)
Information
Information 2114029 CESYS C028529 USB-Isolator USB 2.0 isolator 1 pc(s)
Description

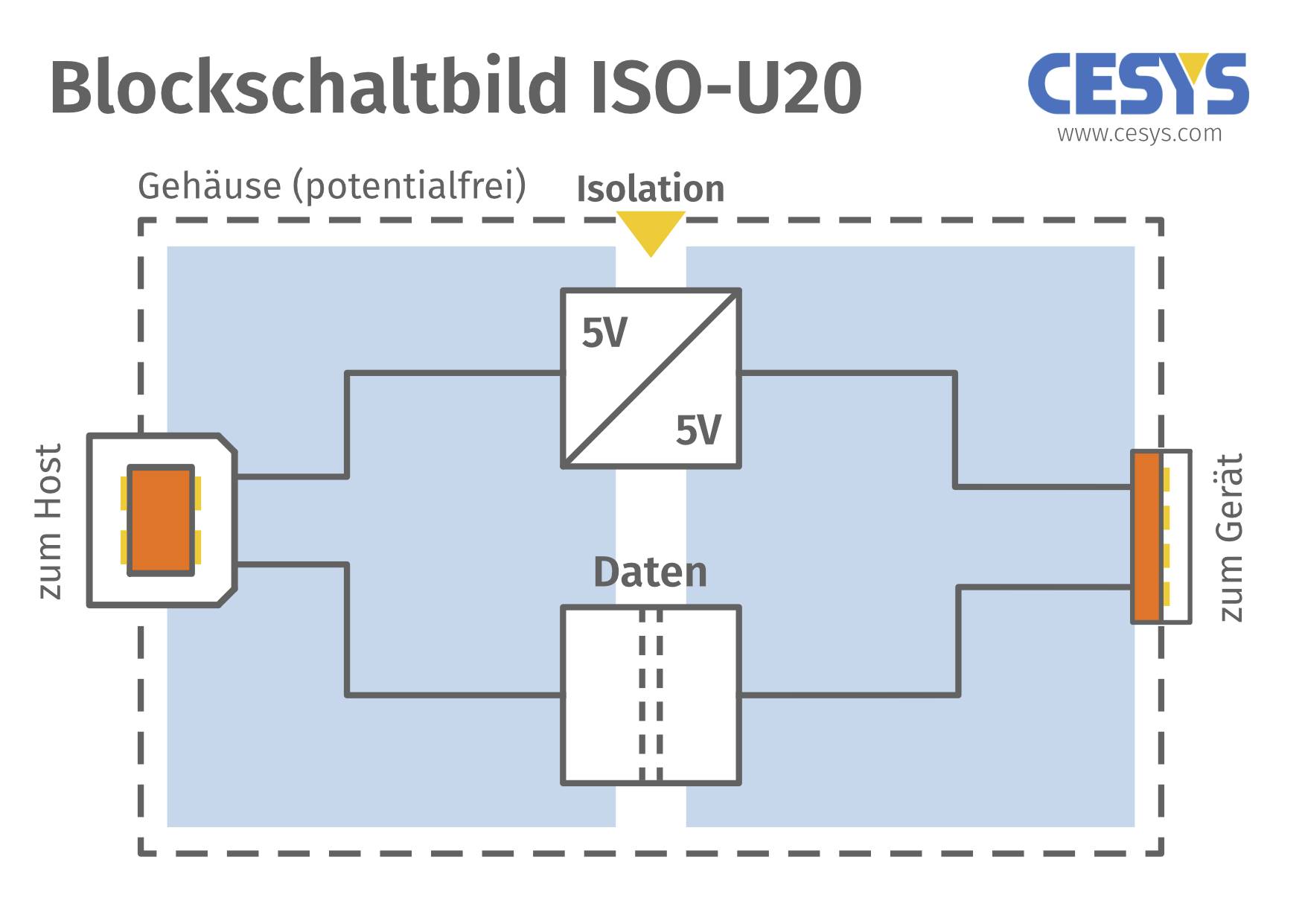

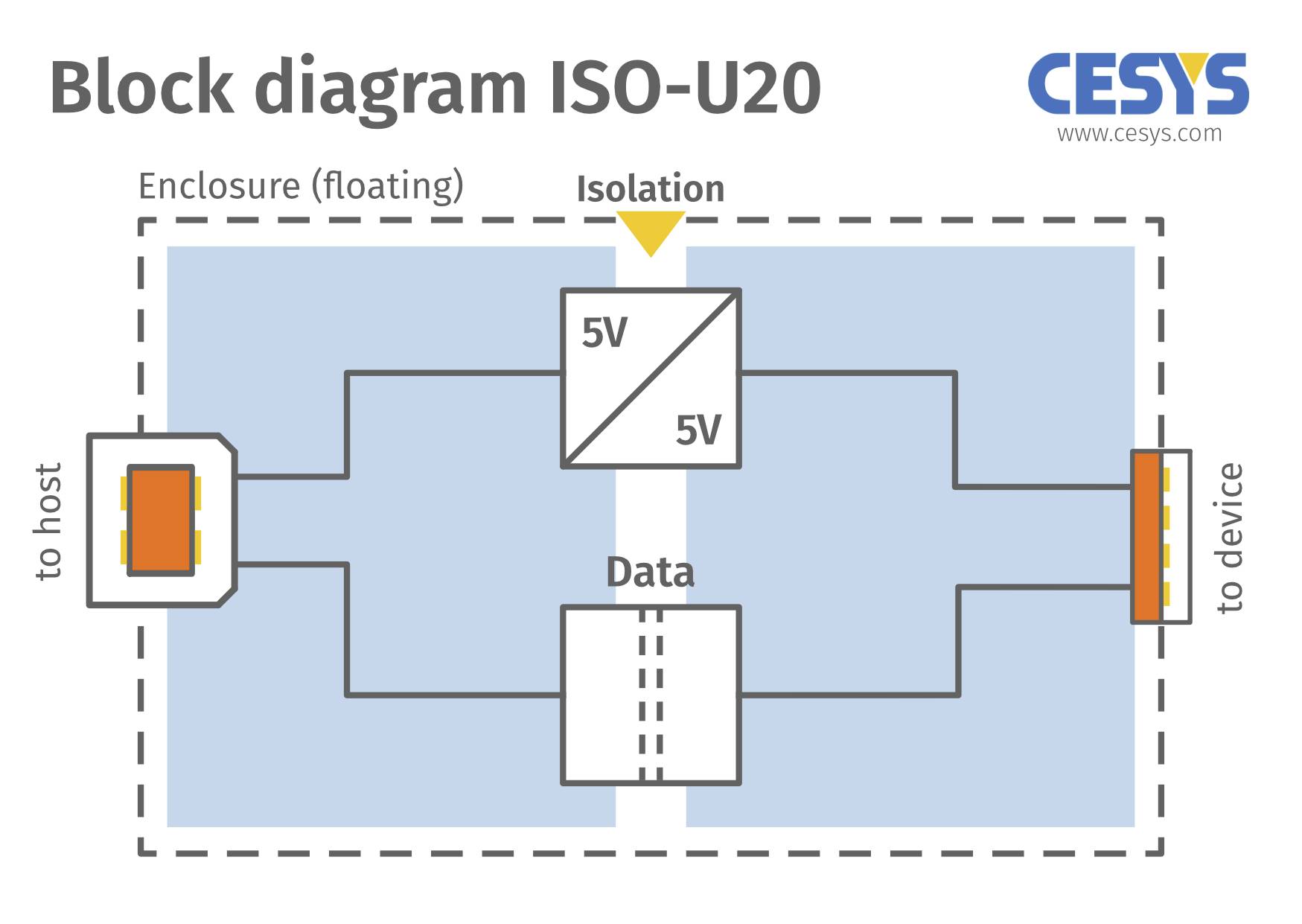

The ISO-UXX devices offer insulation that is known as ground lift in audio applications and electrical engineering as galvanic isolation. This isolation eliminates cross-current and interference, reduces interference and ensures precise data transfer between the host PC and the USB device. The ISO-UXX-devices are high-quality and easy to use.
This text is machine translated.
This text is machine translated.
Features
- Robust aluminum casing, secure stand by all-round rubber seal
Scope of delivery
- ISO-U20
- Quick start guide
