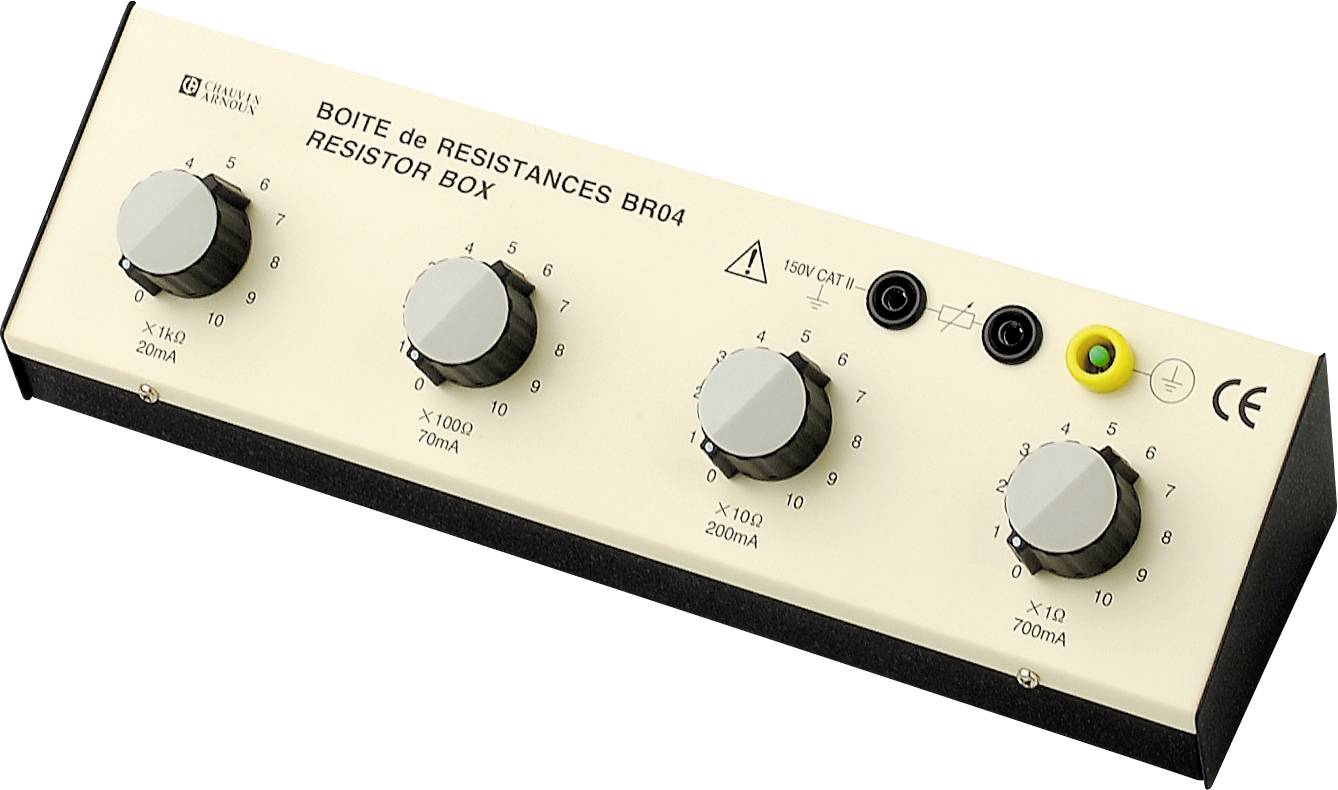

Chauvin Arnoux BR04 Decade box Resistance 1 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Only 3 Piece(s) available
Highlights & Details
BR04: 4 resistor decades 1 Ohm...10 kOhm
- Decade of resistance for use in training, in laboratories, in research and development and in maintenance
- Desk case with 4 decades with 11-digit selector switch and Ø 4 mm safety jack output
- Decade 1: 1 Ω to 10 Ω - I max. 700 mA
- Decade 2: 10 Ω to 100 Ω - I max. 200 mA
- Decade 3: 100 Ω to 1 kΩ - I max. 70 mA
- Decade 4: 1 kΩ to 10 kΩ - I max. 20 mA
- Accuracy 1%
Technical specifications
- Adjustment range
1 Ω to 10 kΩ
- Steps
1 Ω
- Dim
(L x W x H) 90 x 80 x 310 mm
- Weight
1000 g
- Height
310 mm
- Length
90 mm
- Width
80 mm
Manufacturer's standards (no certificate)
- Functions
Resistance
- Tolerance
1 %
- Plastic free packaging
Plastic-free packaging
- Product type
Decade box
Documents & Downloads
Datasheet
Datasheet 2793011 Chauvin Arnoux BR04 Decade box Resistance 1 %
User & Safety Instructions
User & Safety Instructions 2793011 Chauvin Arnoux BR04 Decade box Resistance 1 %
Warranty Terms
Warranty Terms 2793011 Chauvin Arnoux BR04 Decade box Resistance 1 %
Description
Resistance decade with 4 decades
• Resistance decades in the console case
• Output: Safety sockets with Ø 4 mm
• Front panel and metal case are connected to a safety earth bushing that is protected against polarity reversal.
This text is machine translated.
• Resistance decades in the console case
• Output: Safety sockets with Ø 4 mm
• Front panel and metal case are connected to a safety earth bushing that is protected against polarity reversal.
