Buy Chauvin Arnoux MN 12 Clamp meter adapter A/AC reading range: 0.5 - 240 A

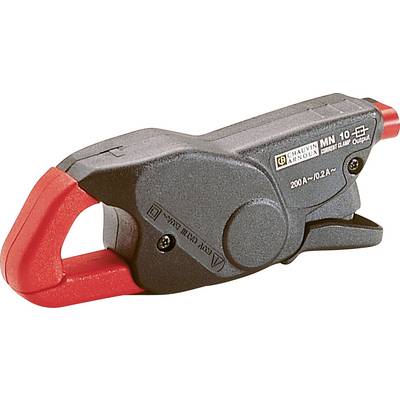

Current clamp, model MN10 by Chauvin Arnoux, measures alternating current up to 200 A. Black and grey with a red handle, suitable for electrical work.

Datasheet (PDF)

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 180.66 / piece)

€ 180.66

plus VAT.

Report legal concerns

Highlights & Details

MN-pliers - measurement of alternating currents up to 240 A !

N/A
Opening range of current clamps 20 mm

Technical specifications

Transmission ratio (input/output): 1 A/10 mV

Opening range of current clamps: 20 mm

Product type: Clamp meter adapter

Type B: 4 mm socket

: Manufacturer's standards (no certificate)

A AC reading range (min.): 0.5 A

Amperage reading range AC (max.): 240 A

Basic accuracy: 1 %

Dim: (L x W x H) 30 x 135 x 51 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 180 g

Output signal (max.): 2 V

Max. frequency: 10 kHz

Width: 135 mm

Height: 51 mm

Length: 30 mm

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199924 Chauvin Arnoux MN 12 Clamp meter adapter A/AC reading range: 0.5 - 240 A

User & Safety Instructions

User & Safety Instructions 2199924 Chauvin Arnoux MN 12 Clamp meter adapter A/AC reading range: 0.5 - 240 A

Description

The "MN" range includes versatile clamp transformers for measuring AC currents up to 240 A with a multimeter or a power analyzer.
The compact and ergonomic pliers are designed especially for measurements in hard to reach places and also allows cables up to a diameter of 20 mm to be enclosed in systems up to CAT III 600 V or CAT IV 300 V.

This text is machine translated.

Scope of delivery

1 user manual
