Cimco 187458 Ferrule 25 mm² Not insulated Tin 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
25 mm²
Sleeve length
25 mm
Insulation type
Not insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.18 / piece)
€ 18.48
plus VAT.
Only 4 Set(s) available
Highlights & Details

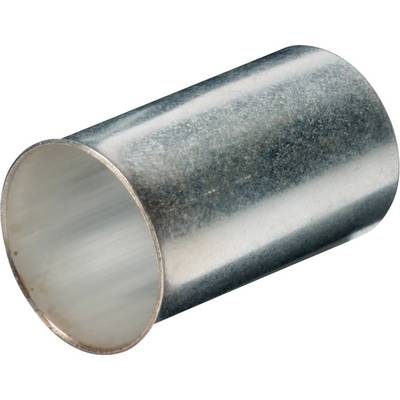

Wire-end sleeve uninsulated 25 mm2 x 25 mm
- 25 mm
- Tin
Technical specifications
- Nominal cross-section: 25 mm²
- Surface protection: Tin-plated
- Material: Copper
- Colour: Tin
- Insulated: ×
- Halogen-free: ✓
- Bandware: ×
- Total length 25 mm.
- Design: Standard
- For short-circuit proof lines: ×
- Sleeve length 25 mm
- With marking tag: ×
- Product type
Ferrule
- Cross section per core
25 mm²
- Sleeve length
25 mm
- Insulation type
Not insulated
- Factory colour
Tin
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
187458
- Length
25 mm
- Cross-section x Length
25 mm² x 25 mm
- Type
Aderendhülse unisol. 25mm² x 25mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394455 Cimco 187458 Ferrule 25 mm² Not insulated Tin 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3394455 Cimco 187458 Ferrule 25 mm² Not insulated Tin 100 pc(s)
Description
Non-insulated wire-end sleeves DIN 46228-1, made of high-quality copper-HP. The surface is galvanically tin-plated with a minimum layer thickness of 3 µm for maximum corrosion protection
