club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.

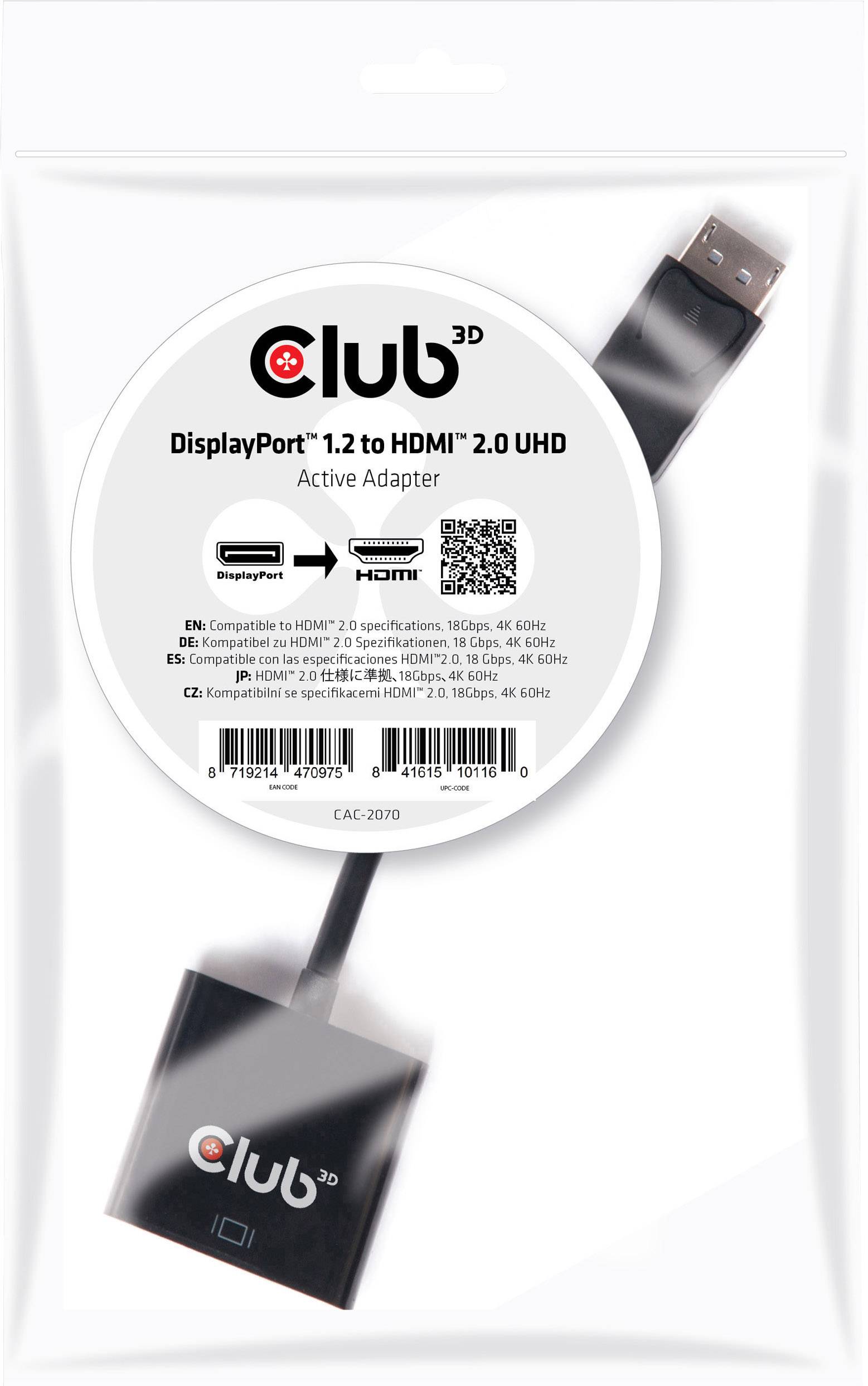

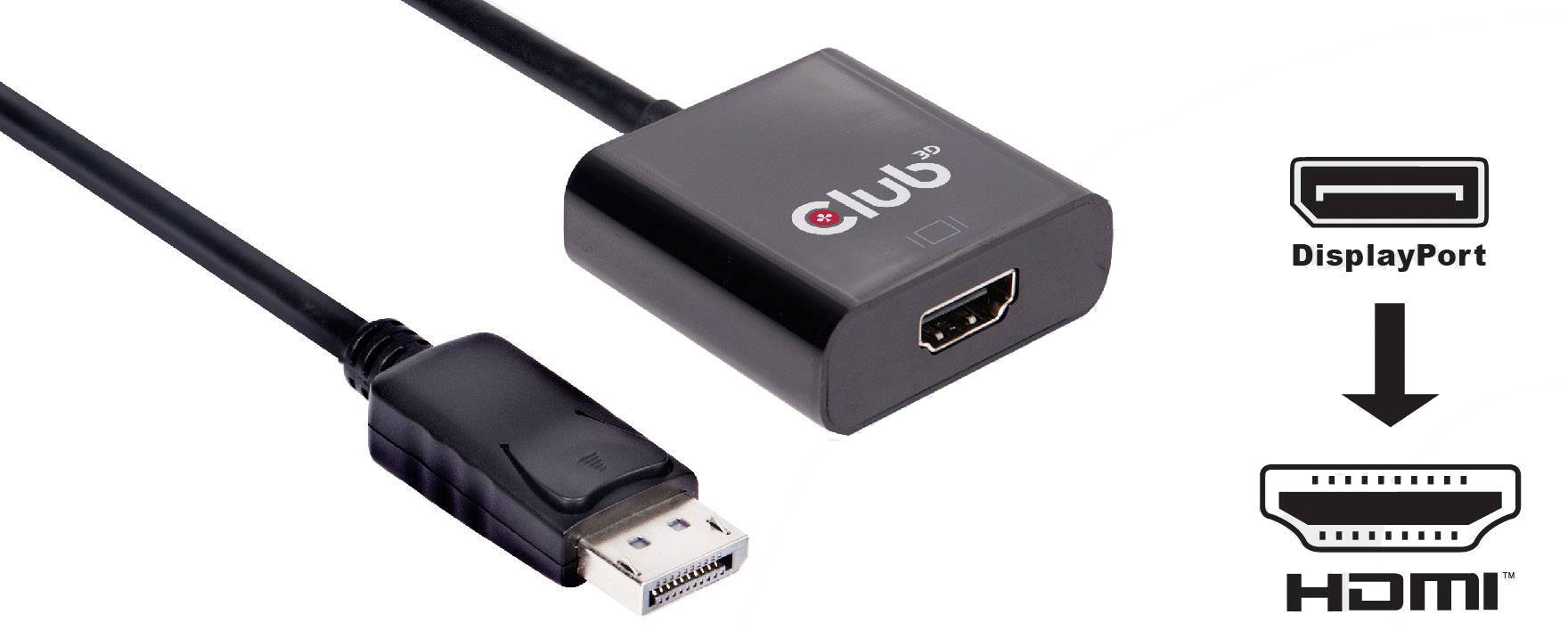

club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm
Highlights & Details
- Compliant with DisplayPort™ Specification 1.2 for 1.62Gbps, 2.7Gbps and 5.4Gbps per lane/track
- Compliant with HDMI™ 2.0 specification with data rate up to 6Gbps per channel. Total throughput 18Gbps
- Supports Full Link Training and No Link Training
- Repeater/amplifier for HDCP 1.3 and HDCP 2.2
- Supported 24-bit color and 4:4:4 color sampling
- Internal YCbCr 4:4:4 /4:2:2 on YCbCr 4:2:0 conversion possible
- Supports UHD resolutions up to 4096 x 2160p @ 60Hz & 1080p 3D
- Supports AMD HD5xxx, NVIDIA® Maxwell, Intel® Haswell HD5xxx Graphics and later. Not for older architectures
Technical specifications
- Supports AMD HD5xxx, Nvidia® Maxwell, Intel® Haswell HD5xxx Graphics and later. Not for older architectures
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
0 mm
- Factory colour
Black
- Video resolution
4096 x 2160 Pixel
- Shielding
Partial shielding
- Connector version
straight
30
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- UKCA
yes
![club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997859PI04/image.jpg?x=100&y=100)
![club3D CAC-2003 DisplayPort Adapter [1x DisplayPort plug - 1x VGA socket] White 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997856PI00/image.jpg?x=100&y=100)
![club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997862PI00/image.jpg?x=100&y=100)
![club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997866PI00/image.jpg?x=100&y=100)
![club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997867PI00/image.jpg?x=100&y=100)
![club3D CSV-6200 DisplayPort Adapter [1x DisplayPort plug, USB 3.2 1st Gen port Micro B (USB 3.0) - 2x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997872PI00/image.jpg?x=100&y=100)
![club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997874PI00/image.jpg?x=100&y=100)
![club3D CAC-2504 USB Adapter [1x USB 3.2 2nd Gen connector C (USB 3.1) - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997875PI00/image.jpg?x=100&y=100)
Documents & Downloads
Datasheet
Datasheet 1997859 club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm
User & Safety Instructions
User & Safety Instructions 1997859 club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm
Description

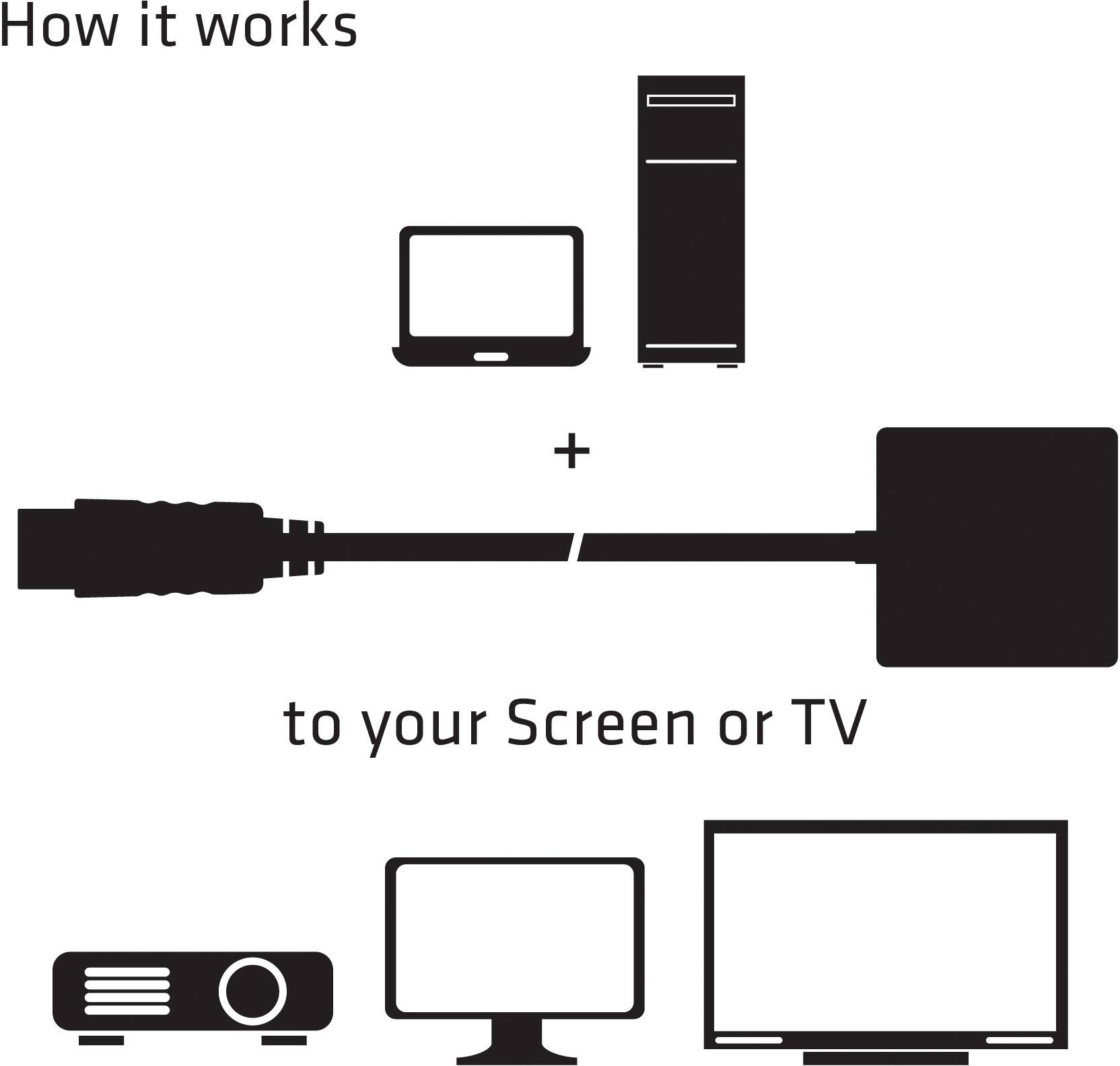

The Club 3D CAC-2070 is an active HDMI™ 2.0 signal converter. The DisplayPort™ 1.2 to HDMI™ 2.0 4K 60Hz active adapter is the simplest solution for connecting your DisplayPort™ 1.2 Game PC or laptop to an HDMI™ 4K UHD TV, monitor or projector. The adapter complies with the HDMI™ 2.0 specification and enables a TMDS throughput of 6 Gbps per channel. The interface in the adapter has three paths for HDMI™ data, clock, HPD signal and performance and offers a total TMDS throughput of 18 Gbps.
Supports up to 4K UHD resolution at 60Hz.
The DisplayPort™ 1.2 to HDMI™ 2.0 4K 60Hz active adapter supports UHD resolutions up to 4K UHD 4096 x 2160p @ 60Hz for a clear, sharp image. Support for 60 frames per second delivers exceptionally smooth video or gameplay. Use the adapter to play games, watch videos or browse the Internet via your DisplayPort™ 1.2 enabled product in ultra-high resolution. Up to 8 audio channels are supported, so the adapter provides Ultra High Definition Digital Audio and Video. This is the ideal solution for anyone who wants to enjoy 4K UHD/60 MHz gameplay, but who lacks a native HDMI™ 2.0 output in his system configuration.
This text is machine translated.
Supports up to 4K UHD resolution at 60Hz.
The DisplayPort™ 1.2 to HDMI™ 2.0 4K 60Hz active adapter supports UHD resolutions up to 4K UHD 4096 x 2160p @ 60Hz for a clear, sharp image. Support for 60 frames per second delivers exceptionally smooth video or gameplay. Use the adapter to play games, watch videos or browse the Internet via your DisplayPort™ 1.2 enabled product in ultra-high resolution. Up to 8 audio channels are supported, so the adapter provides Ultra High Definition Digital Audio and Video. This is the ideal solution for anyone who wants to enjoy 4K UHD/60 MHz gameplay, but who lacks a native HDMI™ 2.0 output in his system configuration.
This text is machine translated.
System requirements
- Windows 10, 8.1
Apple OS X.
