club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Highlights & Details
club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm
- Compliant with DisplayPort™ Specification 1.2 for 1.62Gbps, 2.7Gbps and 5.4Gbps per lane/track. Effective bandwidth 17.28Gbps
- Compliant with HDMI™ 2.0 specification with data rate up to 6Gbps per channel. Total throughput 18Gbps
- Supports Full Link Training and No Link Training
- Repeater/amplifier for HDCP 1.3 and HDCP 2.2
- Supported 24-bit color and 4:4:4 color sampling
- Internal YCbCr 4:4:4 /4:2:2 on YCbCr 4:2:0 conversion possible
- Supports UHD resolutions up to 4096 x 2160p @ 60Hz & 1080p 3D
- Supports AMD GCN cards, NVIDIA® Maxwell cards and Intel® HD 5xxx series and newer graphics solutions. Not for older architectures.
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
Mini DisplayPort
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
0 mm
- Factory colour
Black
- Video resolution
4096 x 2160 Pixel
- Shielding
Partial shielding
- Connector version
straight
30
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- UKCA
yes
![club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997862PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997867PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997859PI04/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997874PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![club3D CAC-2003 DisplayPort Adapter [1x DisplayPort plug - 1x VGA socket] White 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997856PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![club3D CAC-2504 USB Adapter [1x USB 3.2 2nd Gen connector C (USB 3.1) - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997875PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![club3D CSV-6200 DisplayPort Adapter [1x DisplayPort plug, USB 3.2 1st Gen port Micro B (USB 3.0) - 2x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997872PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
Documents & Downloads
Datasheet
Datasheet 1997862 club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm
User & Safety Instructions
User & Safety Instructions 1997862 club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm
Description
The Club 3D is an active HDMI™ 2.0 signal converter. The Mini DisplayPort™ 1.2 to HDMI™ UHD active adapter is the simplest solution for connecting your Mini DisplayPort™ 1.2 Game PC or laptop to an HDMI™ 4K UHD TV, monitor or projector. The adapter complies with the HDMI™ 2.0 specification and enables a TMDS throughput of 6Gbps per channel. The interface in the adapter has three paths for HDMI™ data, clock, HPD signal and performance and offers a total TMDS throughput of 18 Gbps.

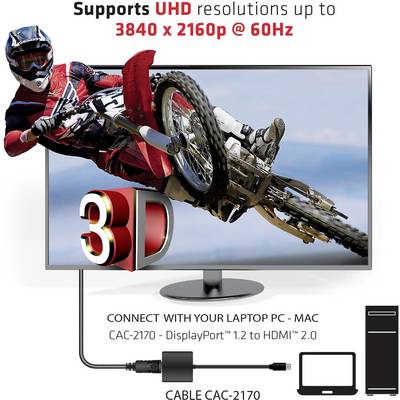

Supports up to 4K UHD resolution at 60Hz.
The MiniDisplayPort™ 1.2 to HDMI™ 2.0 UHD active adapter supports UHD resolutions up to 4K UHD 4096 x 2160p @ 60Hz for a clear, sharp image. The support for 60F images per second provides exceptionally smooth video or gameplay. Use the adapter to play games, watch videos or browse the Internet via your Mini DisplayPort™ 1.2 enabled product in ultra high resolution. Up to 8 audio channels are supported, so the adapter provides Ultra High Definition Digital Audio and Video. This is the ideal solution for anyone who wants to enjoy 4K UHD/60 Hz gameplay but lacks a native HDMI™ 2.0 output in a system configuration.
This text is machine translated.
Supports up to 4K UHD resolution at 60Hz.
The MiniDisplayPort™ 1.2 to HDMI™ 2.0 UHD active adapter supports UHD resolutions up to 4K UHD 4096 x 2160p @ 60Hz for a clear, sharp image. The support for 60F images per second provides exceptionally smooth video or gameplay. Use the adapter to play games, watch videos or browse the Internet via your Mini DisplayPort™ 1.2 enabled product in ultra high resolution. Up to 8 audio channels are supported, so the adapter provides Ultra High Definition Digital Audio and Video. This is the ideal solution for anyone who wants to enjoy 4K UHD/60 Hz gameplay but lacks a native HDMI™ 2.0 output in a system configuration.
This text is machine translated.
System requirements
- Windows 10, 8.1 Apple OS X.
