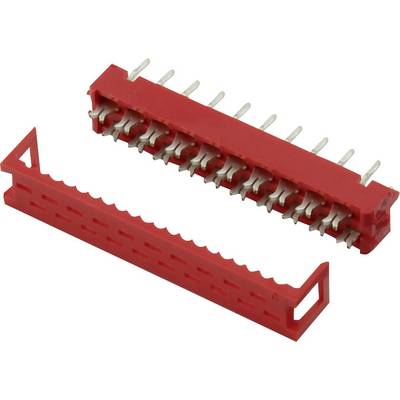

Image similar
Connfly DS1015-02-08R6 Pin housing PCB Micro-MaTch Total number of pins 8 Contact spacing: 1.27 mm 1 pc(s)
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
2
Series
Micro-MaTch
CS
1.27 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 3
Total (€ 0.24 / piece)
€ 0.24
incl. VAT
14-day return policy included
Highlights & Details
Micro-maTch connector
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, vertical mount
- No. of rows
2
- Connector system
wire-to-board
- Series
Micro-MaTch
- CS
1.27 mm
- Pins per row
4
- Total number of pins
8
- Width
5 mm
- Pin shape
Rectangular
- Content
1 pc(s)
- Dim
(W x H) 5 mm x 3.60 mm
- Connection
Print
- Case material
Thermoplastic UL94V-O
- Manufacturer part #
DS1015-02-08R6
- Factory colour
Red
- Industrial packaging
No
- Insulation material
Thermoplastic UL94V-O
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Height
3.60 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
DS1015-02-08R6
Documents & Downloads
Datasheet
Datasheet 1390062 Connfly DS1015-02-08R6 Pin housing PCB Micro-MaTch Total number of pins 8 Contact spacing: 1.27 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1390062 Connfly DS1015-02-08R6 Pin housing PCB Micro-MaTch Total number of pins 8 Contact spacing: 1.27 mm 1 pc(s)
