Name: Cotek DN 10-15 Rail mounted PSU (DIN) 15 V DC 0.67 A 10 W No. of outputs:1 x Content 1 pc(s)
Brand: Cotek
SKU: 513356
Availability: SoldOut

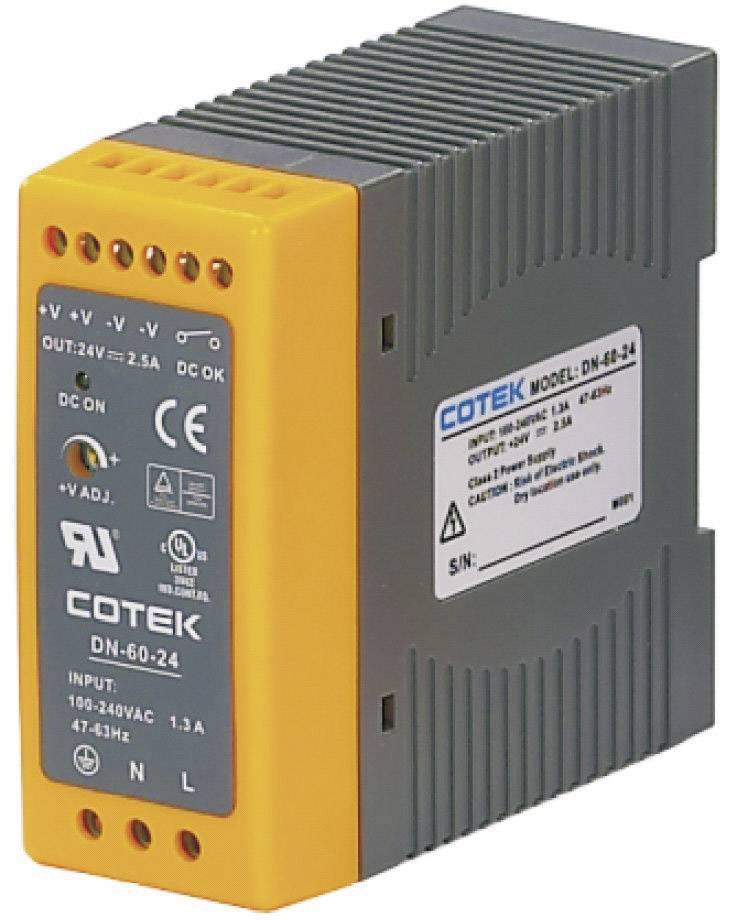

DC power supply with ventilation slots, yellow front bar, and technical specifications on a side label.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Cotek DN 10-15 Rail mounted PSU (DIN) 15 V DC 0.67 A 10 W No. of outputs:1 x Content 1 pc(s)

Universal input voltage: 100 - 240 Vac, 124 - 370 V DC (single phase)
Output: 15V DC (adjustable +/- 10%) 0.67A 10W
LED DC OK indicator on unit
True DC OK signal output (5V)
Termination type: Screw terminals
3 year manufacturer warranty

Technical specifications

Type: DIN-rail mount

Nominal input voltage: 115 V/AC
230 V/AC
124 - 370 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 88 V AC

Output voltage: 15 V DC

Input voltage: 100 - 240 Vac, 124 - 370 V DC

Input voltage (max.): 264 V AC

Max. output current: 0.67 A

Output current (max.) - rounded: 670 mA

: 10 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 15 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 23 x 90 x 99 mm

Weight: 130 g

Output voltage (max.): 16.5 V DC

Output voltage (min.): 13.5 V DC

Manufacturer part #: DN 10-15

Content: 1 pc(s)

MTBF: 562700 h

PSU features: Adjustable voltage output

Width: 23 mm

Height: 90 mm

Type: DN 10-15

Depth: 99 mm

: 10 W

Connections: Screw terminals

Output current (details): 0.67 A

Documents & Downloads

Datasheet

Datasheet 513356 Cotek DN 10-15 Rail mounted PSU (DIN) 15 V DC 0.67 A 10 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 513356 Cotek DN 10-15 Rail mounted PSU (DIN) 15 V DC 0.67 A 10 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 513356 Cotek DN 10-15 Rail mounted PSU (DIN) 15 V DC 0.67 A 10 W No. of outputs:1 x Content 1 pc(s)

Description

At 23mm wide, Cotek's economical DN 10-15 miniature power supply saves space on DIN rails and offers a true DC OK signal output.

With an MTBF of 562700 h, the DN 10-15 offers high reliability and long life, and is covered by Cotek's 3 year manufacturer warranty. It is approved to EN60950-1 for ITE and UL508 for industrial applications and EN61000-3-2,-3 and Level B for conducted emissions.

Features

Short circuit, overload and over voltage protection
Standard DIN rail mounting
International use through wide-range input
Safety/reliability in accordance with CE, CSA, UL508, UL1310 Class 2, EMC/EMS EN55022 Class B, EN61000-3-2.3, EN55024, EN61000-4-2.3.4.5.6.8.11.

Hints

For more information on this Cotek power supply, please see its datasheet under 'Downloadable Documents'.

Description

Features

Short circuit, overload and over voltage protection
Standard DIN rail mounting
International use through wide-range input
Safety/reliability in accordance with CE, CSA, UL508, UL1310 Class 2, EMC/EMS EN55022 Class B, EN61000-3-2.3, EN55024, EN61000-4-2.3.4.5.6.8.11.
