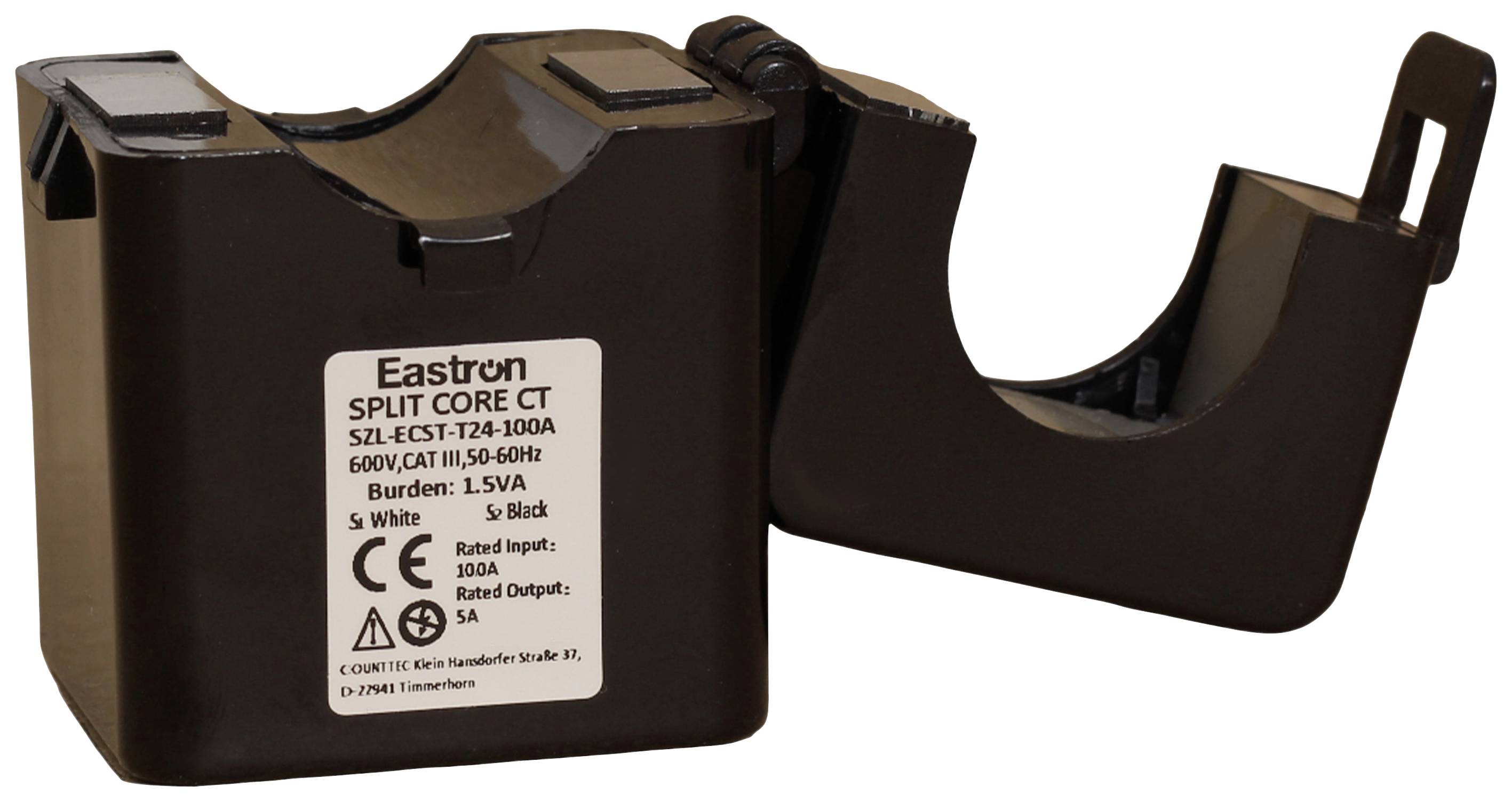

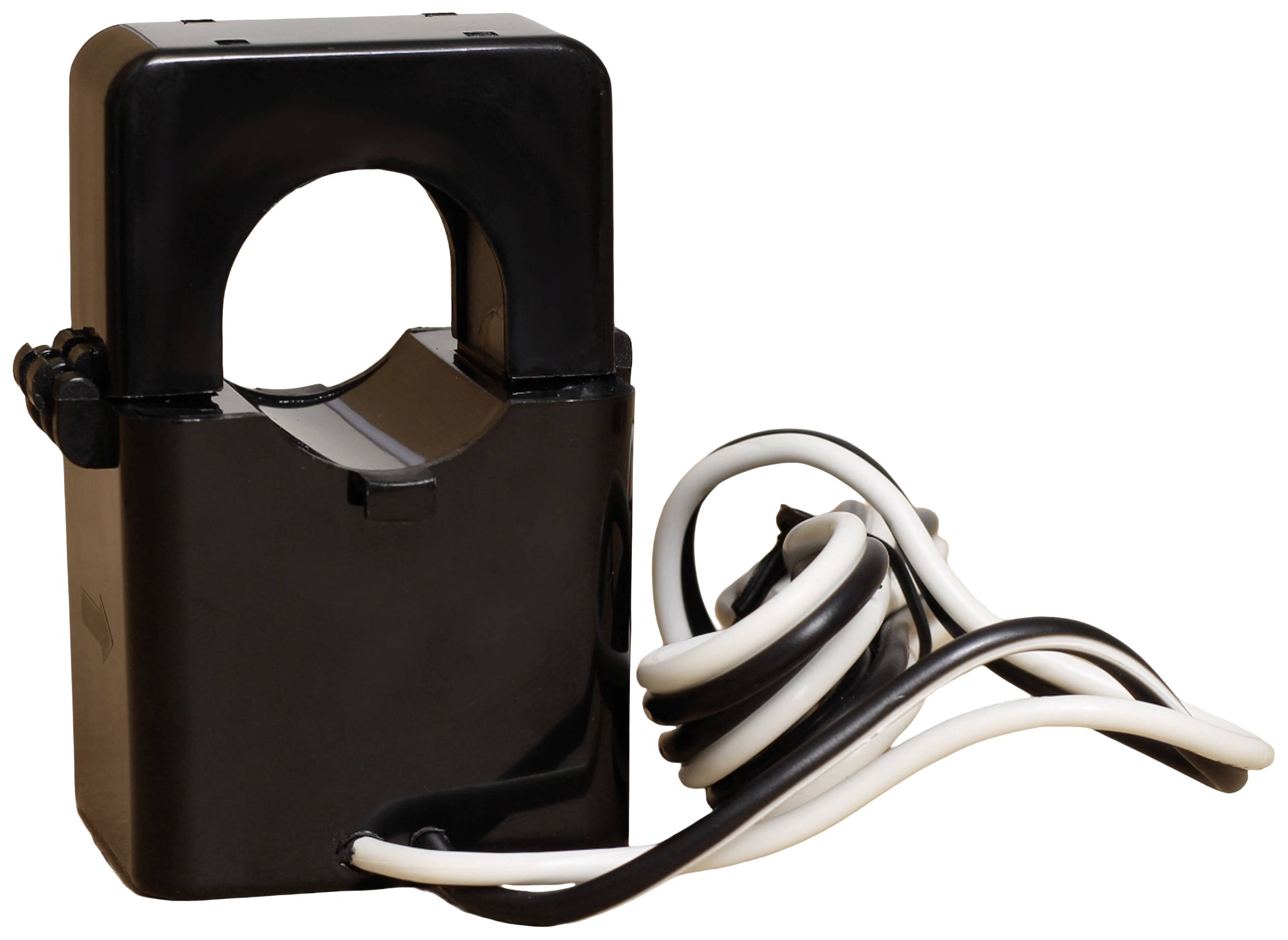

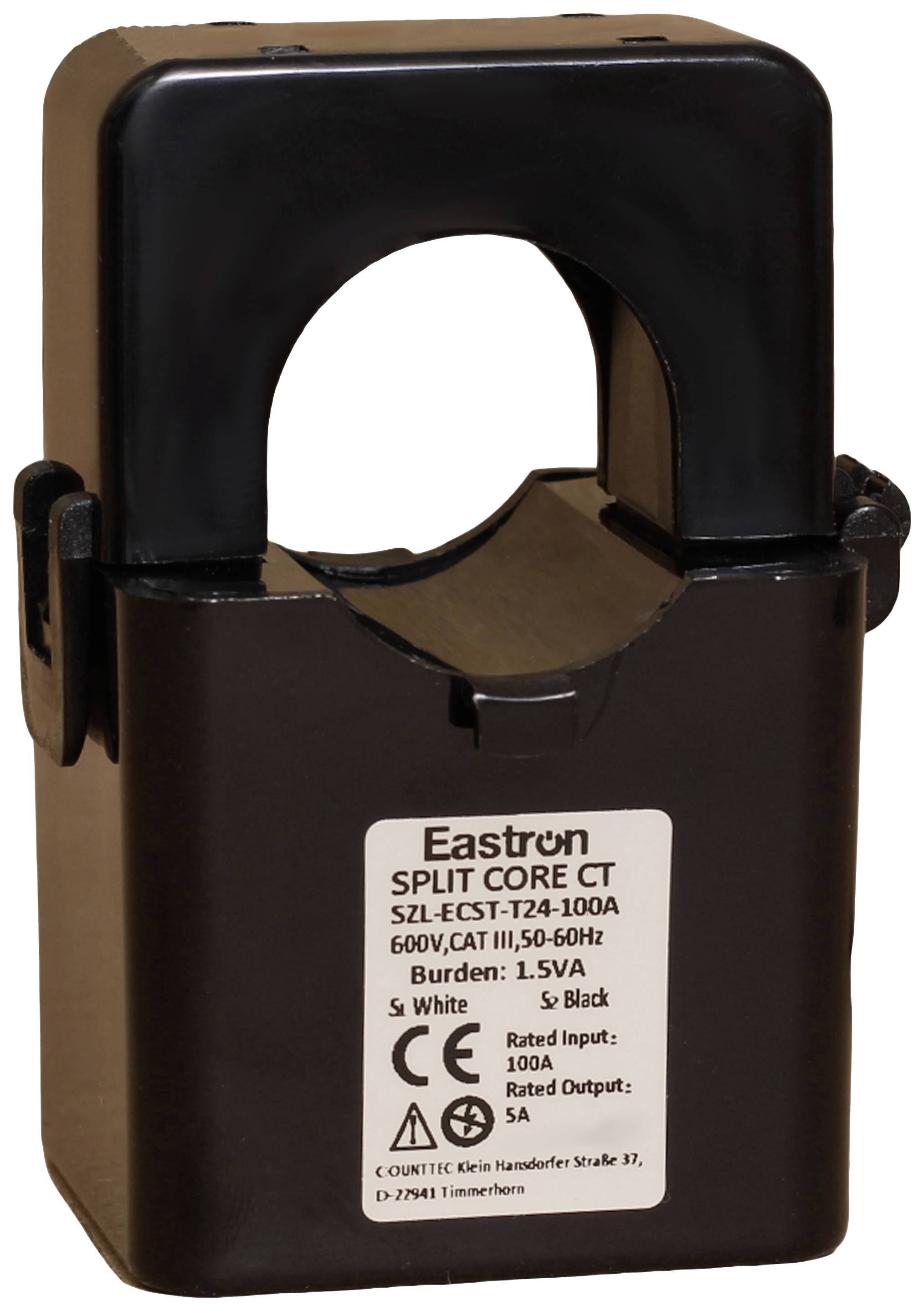

Counttec ESCT-T24 KW30100 LV current transformer Primary current 100 A Secondary current 5 A Line feed-through diameter:
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 65.99 / piece)
€ 65.99
incl. VAT
Only 9 Piece(s) available
Highlights & Details
Low-voltage DC converter 100/5A
- Input current (current) 100 A
- Output current 5 A
- Line feed-through diameter 25 mm
Technical specifications
- Frequency range 50 - 60 HzPhase angle: Less than 2 degrees at 50% of the rated currentInsulation voltage 600V/ACMaximum primary voltage 5000 V AC (insulated lead)Breakdown voltage 2.5KV / 1mA / 1minOperating temperature: -15°C to 60ºCHumidity <: 85%HOUSING MATERIAL PC/UL94-V0Spool PBTKern: PermalloyInternal structure: Epoxy
- Product type
LV current transformer
- Fitting type
Flip mount
- Primary current
100 A
- Secondary current
5 A
- Line feed-through diameter
25 mm
- Accuracy class
±1% from 20% to 120% of the input
- Type
ESCT-T24
- Weight
250 g
- Output current
5 A
- Input current
100 A
Documents & Downloads
Datasheet
Datasheet 2686588 Counttec ESCT-T24 KW30100 LV current transformer Primary current 100 A Secondary current 5 A Line feed-through diameter:
User & Safety Instructions
User & Safety Instructions 2686588 Counttec ESCT-T24 KW30100 LV current transformer Primary current 100 A Secondary current 5 A Line feed-through diameter:
