Buy Counttec ESCT-T24 KW30200 LV current transformer Primary current 200 A Secondary current 5 A Line feed-through diameter:

Current transformer, model 'Easton Split Core CT', suitable for 600V, CAT III, 50-60Hz. Ratings: Burden 1.5VA, Current 200A.

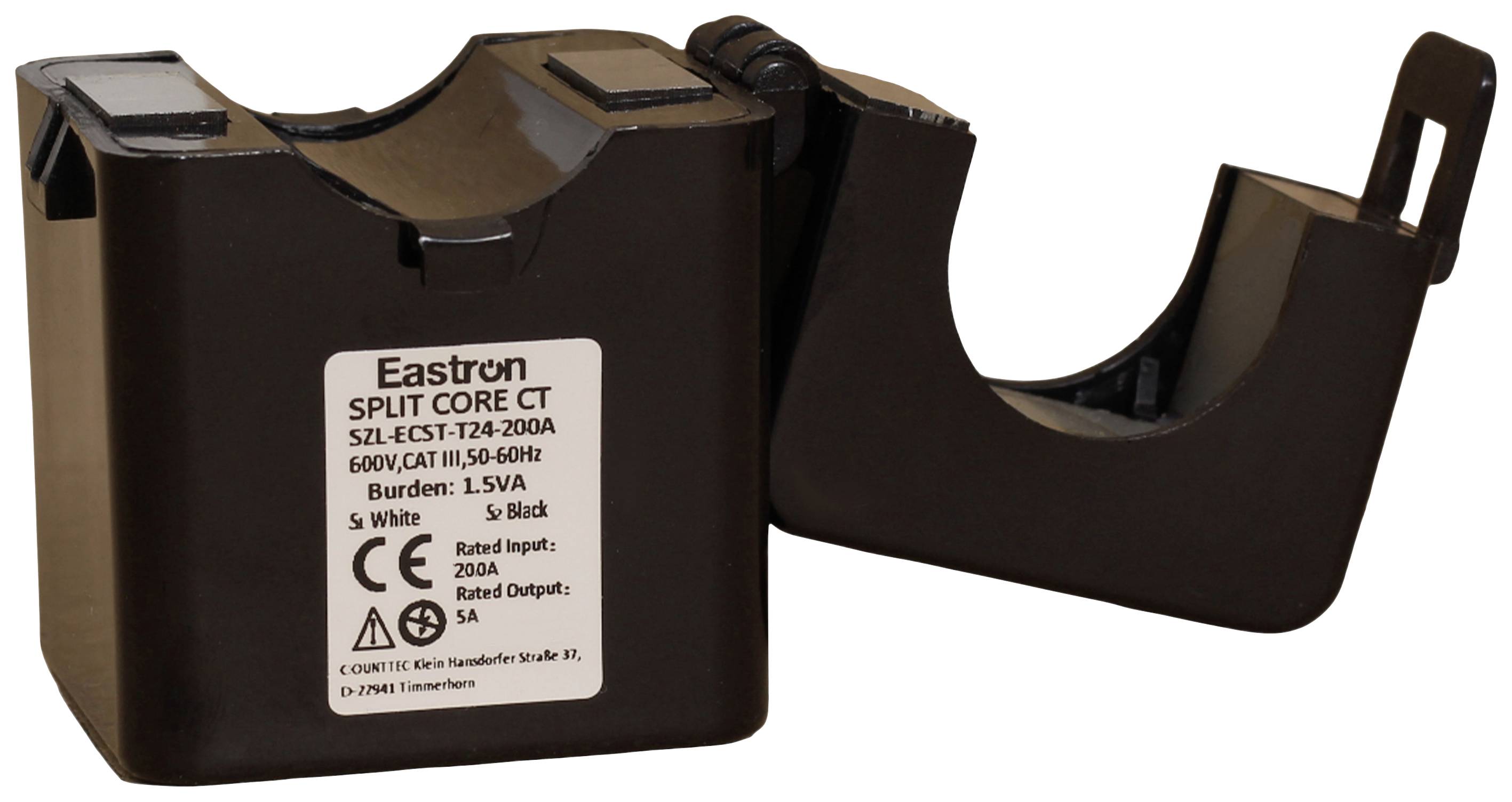

Split-core current transformer. Label reads 'Eastron SPLIT CORE CT, SZL-ECT-724-200A, 600V, CAT III, 50-60Hz, 5-5A'.

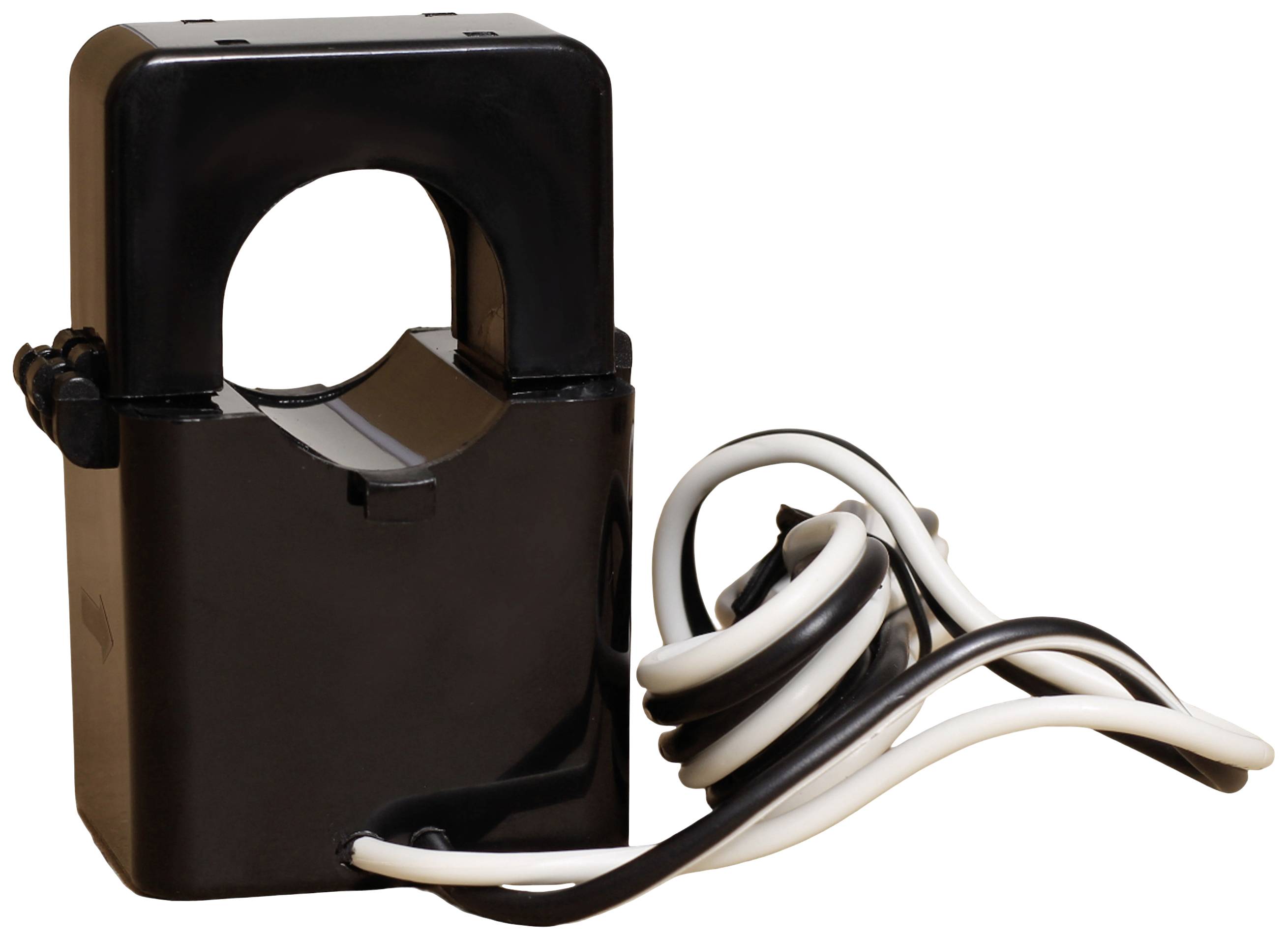

A black current sensor with an open toroidal core, connected to a black and white cable, for measuring electrical currents.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 55.45 / piece)

€ 55.45

plus VAT.

Report legal concerns

Highlights & Details

Low-voltage DC converter 200/5A

Output current 5 A
Line feed-through diameter 25 mm

Technical specifications

Frequency range 50 - 60 HzPhase angle: Less than 2 degrees at 50% of the rated currentInsulation voltage 600V/ACMaximum primary voltage 5000 V AC (insulated lead)Breakdown voltage 2.5KV / 1mA / 1minOperating temperature: -15°C to 60ºCHumidity <: 85%HOUSING MATERIAL PC/UL94-V0Spool PBTKern: PermalloyInternal structure: Epoxy

Product type: LV current transformer

Fitting type: Flip mount

Primary current: 200 A

Secondary current: 5 A

Line feed-through diameter: 25 mm

Accuracy class: ±1% from 20% to 120% of the input

Type: ESCT-T24

Weight: 250 g

Output current: 5 A
