Buy Crydom Control Relay, Panel Mount

'Crydom MCPC2450' solid state relay with terminals and screws, for electronic control of electrical devices.

Image similar

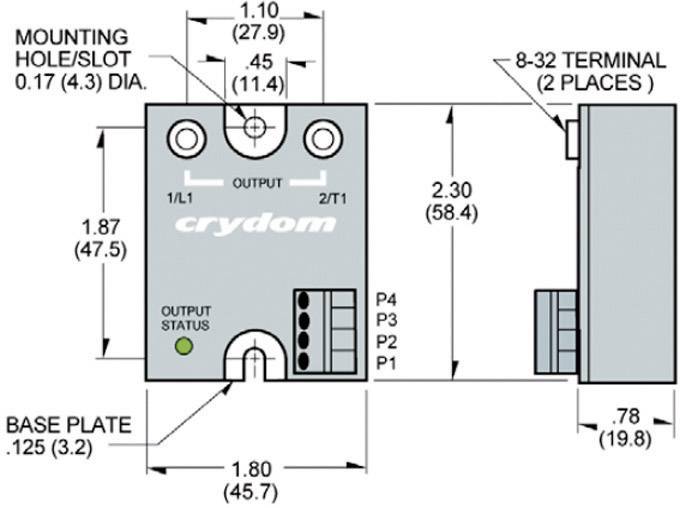

Figure shows technical drawing of an electrical relay with dimensions in inches and millimetres, connections and status indicator.

1/2

Image similar

Product type

SSR

Control voltage (min.)

0 V DC

Control voltage (max.)

10 V DC

Switching voltage (max.)

280 V AC

Current load (max.)

25 A

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

24 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 113.45

-11 %

€ 100.83

plus VAT.

Report legal concerns

Technical specifications

Product type: SSR

Type: MCPC2425C

Control voltage (min.): 0 V DC

Control voltage (max.): 10 V DC

Control voltage range: 0 - 10 V DC

Surge current (max.): 250 A

Switching voltage (min.): 180 V AC

Switching voltage (max.): 280 V AC

Current load (max.): 25 A

Min. temperature: -20 °C

Max. temperature: +80 °C

Width: 45.7 mm

Height: 23 mm

Length: 58.4 mm

Content: 1 pc(s)

Type: Proportional

Type: MCPC2425C

Ambient temperature: -20 - +80 °C

Operating voltage: 8 - 32 V DC

Documents & Downloads

Datasheet

Datasheet 505212 Crydom Control Relay, Panel Mount

User & Safety Instructions

User & Safety Instructions 505212 Crydom Control Relay, Panel Mount

Description
