Crydom Control Relay, Panel Mount

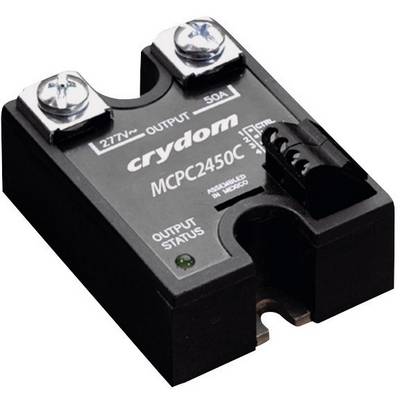

'Crydom MCPC2450' solid state relay with terminals and screws, for electronic control of electrical devices.
Figure shows technical drawing of an electrical relay with dimensions in inches and millimetres, connections and status indicator.
1/2
Packaging type
Piece
Product type
SSR
Control voltage (min.)
0 V DC
Control voltage (max.)
10 V DC
Switching voltage (max.)
280 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
4 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 209.99 / piece)
€ 209.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

SSR

Type

MCPC2450C

Control voltage (min.)

0 V DC

Control voltage (max.)

10 V DC

Control voltage range

0 - 10 V DC

Surge current (max.)

625 A

Switching voltage (min.)

180 V AC

Switching voltage (max.)

280 V AC

Current load (max.)

50 A

Output voltage (max.)

280 V AC

Max. output current

50 A

Min. temperature

-20 °C

Max. temperature

+80 °C

Width

45.7 mm

Height

23 mm

Length

58.4 mm

Permanent current (max.)

50 A

Content

1 pc(s)

Type

Proportional

Type

MCPC2450C

Ambient temperature

-20 - +80 °C

Operating voltage

8 - 32 V DC

Documents & Downloads

Datasheet

Datasheet 505213 Crydom Control Relay, Panel Mount

User & Safety Instructions

User & Safety Instructions 505213 Crydom Control Relay, Panel Mount

Description

The MC series of microprocessor-based load relay allows a partial control of the performance of an AC load The MCPC Series is a proportional controller that provides a percentage of AC sine wave to the load (phase-angle-control). The control takes place via a analogue signal of 0 - 10 V/DC. Optically isolated SCR output for high switching loads in industrial applications "Hockey Puck" standard industrial housing for chassis or installation of heat sink

Features

  • Enable/Disable input

Hints

Approval: UL
