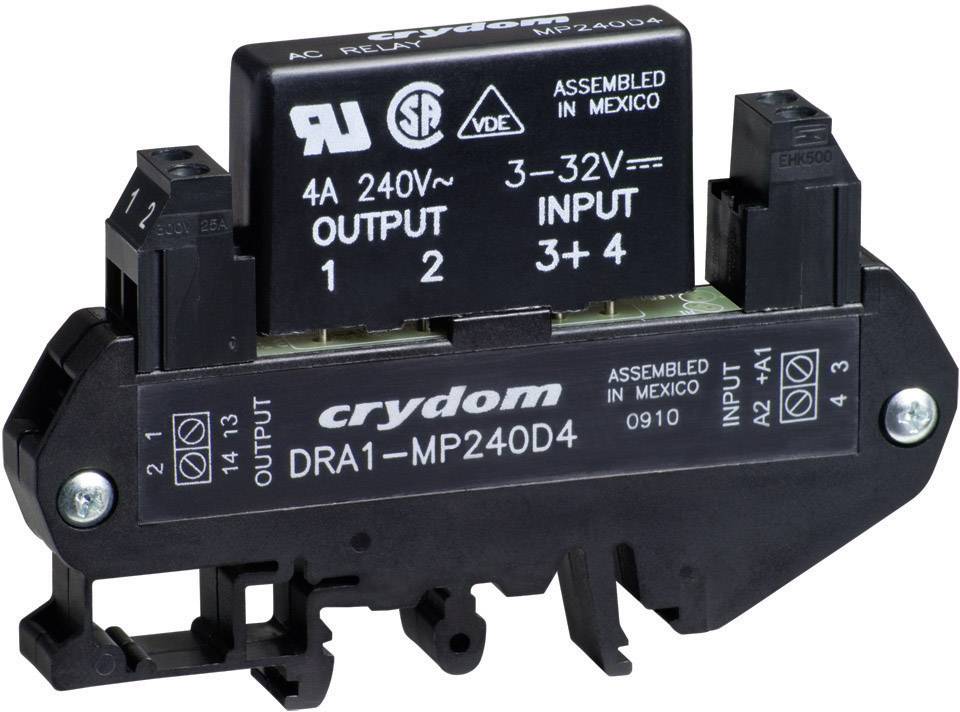

Crydom DIN Rail Mount Solid State Relay, AC
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
15 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
280 V AC
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
DRA1-CXE240D5
- Switching type
Zero crossing
- Control voltage (min.)
15 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
15 - 32 V DC
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
5 A
- Output voltage (max.)
280 V AC
- Max. output current
5 A
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Width
10.03 mm
- Height
89.6 mm
- Depth
60.97 mm
- Content
1 pc(s)
- Type
Zero voltage switch type
- Switching voltage
12 - 280 V AC
- Type
DRA1-CXE240D5
- Ambient temperature
-30 - +80 °C
- Current load
0.06 - 5 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 505346 Crydom DIN Rail Mount Solid State Relay, AC
Description
Ready to install for DIN rail mounting (TS35) and wear-free switching of resistive, capacitive and inductive loads such as motors, contactors, magnetic valves and heating elements.
Hints
Approvals: UL, CSA, VDE, CE. Observe derating A protective circuit against voltage peaks in the load circuit is recommended.
