Crydom DIN Rail Solid State Contactor

Black solid state relay by Crydom, Model CXD4850, with heat sink. 480VAC, 50A power specification.

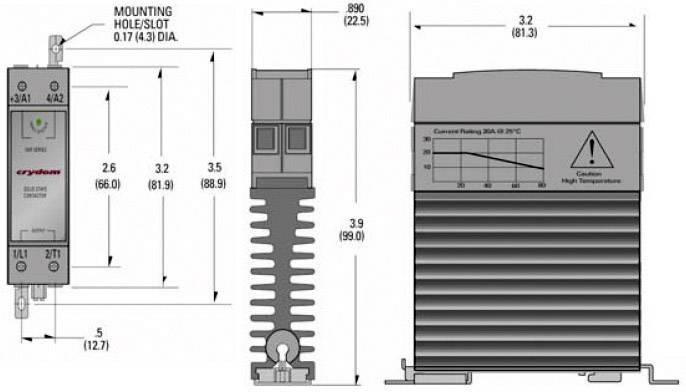

Diagram shows electrical component with dimensions, circuit diagram, and current consumption diagram at different temperatures.
1/2
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
90 V AC
Control voltage (max.)
280 V AC
Switching voltage (max.)
280 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 83.99 / piece)
€ 83.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

SSR

Type

CKRA2420

Switching type

Zero crossing

Connection

Clamp

Control voltage (min.)

90 V AC

Control voltage (max.)

280 V AC

Control voltage range

90 - 280 V AC

Surge current (max.)

1200 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

280 V AC

Current load (max.)

20 A

Output voltage (max.)

280 V AC

Min. temperature

-40 °C

Max. temperature

+80 °C

Width

22.5 mm

Height

99 mm

Length

81.9 mm

Permanent current (max.)

20 A

Content

1 pc(s)

Type

Switches at voltage zero.

Type

CKRA2420

Ambient temperature

-40 - +80 °C

Documents & Downloads

Datasheet

Datasheet 505227 Crydom DIN Rail Solid State Contactor

Description

CRYDOM thermal management technology enables an efficient and compact design. Safe and easy to use terminal connections with an integrated heat sink completes the package Optically isolated SCR output for high switching loads in industrial applications.

Scope of delivery

  • Integrated heat sink
  • DIN rail mounting clip.

Hints

Approvals: UL, CSA, VDE
