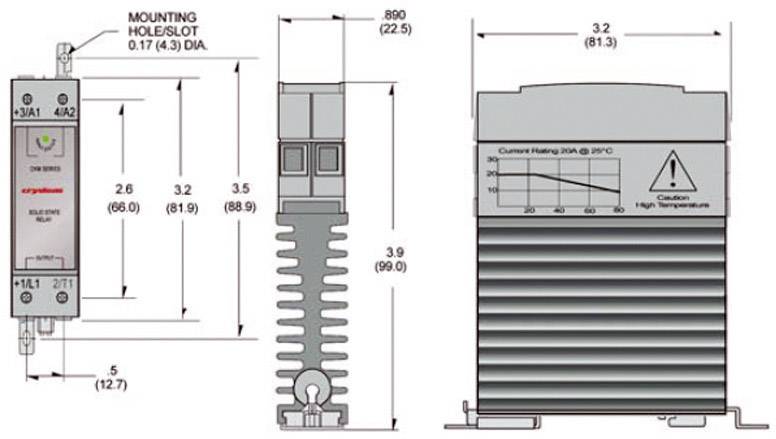

Crydom DIN Rail Solid State Contactor
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
60 V DC
Datasheet (PDF)
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
CKM0630
- Control voltage (min.)
4 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4 - 32 V DC
- Surge current (max.)
250 A
- Switching voltage (min.)
0 V DC
- Switching voltage (max.)
60 V DC
- Current load (max.)
30 A
- Output voltage (max.)
60 V DC
- Max. output current
30 A
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Width
22.5 mm
- Height
99 mm
- Length
81.9 mm
- Content
1 pc(s)
- Type
CKM0630
- Ambient temperature
-40 - +80 °C
Documents & Downloads
Datasheet
Datasheet 505232 Crydom DIN Rail Solid State Contactor
Description
The relay has a low MOSFET output in a 22.5 mm DIN rail casing. No additional installation work is required due to the built-in heat sink
Scope of delivery
- Built in heat sink
- DIN rail attachment clip
