A black solid-state relay with four metal pins and white markings. Text: 'Crydom', 'S24D25', 'Assembled in Mexico'.<br><br>(Note: In this case, the text is already in English, so no translation was required. The description remains the same.)

A black solid-state relay with four metal pins and white markings. Text: 'Crydom', 'S24D25', 'Assembled in Mexico'.<br><br>(Note: In this case, the text is already in English, so no translation was required. The description remains the same.)

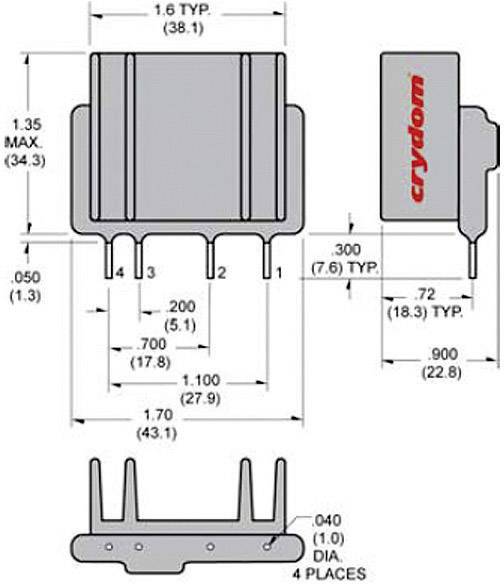

Technical drawing of an electronic component with dimensions in inches, perspective and front view.

1/2

Image similar

Crydom

Packaging type

Piece

Product type

SSR

Control voltage (min.)

15 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

530 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Crydom Electronic SIL Load Relay

Our service for you

Technical specifications

Packaging type: Piece

Product type: SSR

Type: PFE380D25

Switching type: Zero crossing

Connection: Print

Control voltage (min.): 15 V DC

Control voltage (max.): 32 V DC

Control voltage range: 15 - 32 V DC

Surge current (max.): 30 A

Switching voltage (min.): 48 V AC

Switching voltage (max.): 530 V AC

Current load (max.): 25 A

Output voltage (max.): 530 V AC

Max. output current: 25 A

Min. temperature: -30 °C

Max. temperature: +80 °C

Width: 22.8 mm

Height: 34.3 mm

Length: 43.1 mm

RoHS-compliant: Yes

Permanent current (max.): 25 A

Content: 1 pc(s)

Type: Switches at voltage zero.

Switching voltage: 48 - 530 V AC

Type: PFE380D25

Ambient temperature: -30 - +80 °C

Current load: 25 A 10 A

Documents & Downloads

Datasheet

Datasheet 181633 Crydom Electronic SIL Load Relay

User & Safety Instructions

User & Safety Instructions 181633 Crydom Electronic SIL Load Relay

Description

Compact module, ready for PCB mounting (SIL) With integrated heatsinks. SCR output for heavy industrial loads. Load current at Forced / Convection cooling max. 25 A or max. 10 A.

Hints

Approvals: UL, VDE.

Description

Compact module, ready for PCB mounting (SIL) With integrated heatsinks. SCR output for heavy industrial loads. Load current at Forced / Convection cooling max. 25 A or max. 10 A.

Hints

Approvals: UL, VDE.
