Crydom Solid State Mini SIP PCB Load Relay
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
10 V DC
Switching voltage (max.)
280 V AC
Current load (max.)
2 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 28.99 / piece)
€ 28.99
incl. VAT
14-day return policy included
Highlights & Details
Crydom Solid State Mini SIP PCB Load Relay
Our service for you
Technical specifications
- Product type
SSR
- Type
ASO242
- Switching type
Zero crossing
- Control voltage (min.)
4 V DC
- Control voltage (max.)
10 V DC
- Control voltage range
4 - 10 V DC
- Surge current (max.)
100 A
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
2 A
- Min. temperature
-30 °C
- Max. temperature
+80 °C

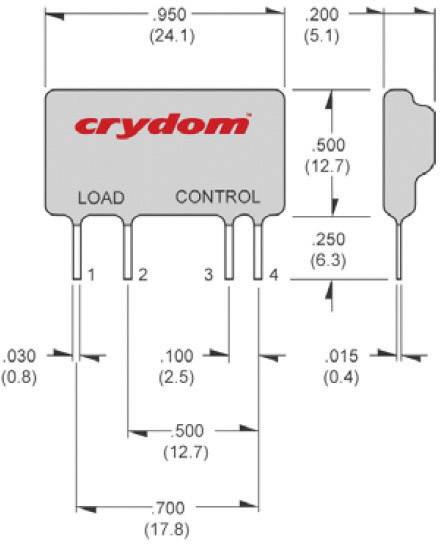

- Width
12.7 mm
- Height
5.1 mm
- Length
24.1 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
Zero voltage switch type
- Type
AS0242
- Ambient temperature
-30 - +80 °C
- Current load
2 A
Documents & Downloads
Datasheet
Datasheet 188012 Crydom Solid State Mini SIP PCB Load Relay
Description
Very little load relay in SIP casing with optically separated SCR output. Especially good for switching heavy inductive loads such as magnet. Typical applications are pumps, vending machines, security systems, etc.
Hints
Approvals UL, CSA.
