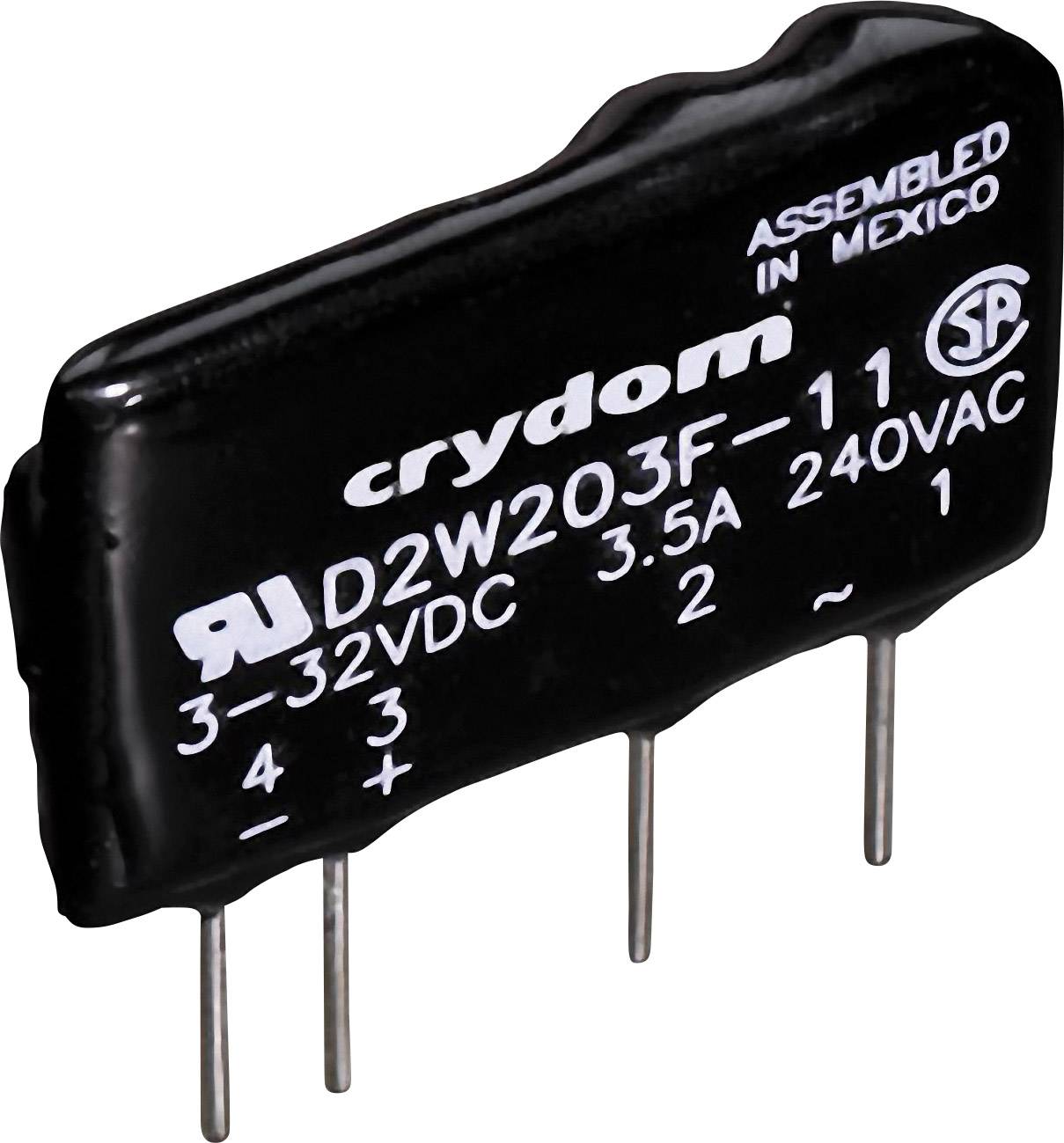

Image similar
Crydom Solid State SIP PCB Load Relay
Packaging type
Piece
Product type
SSR
Control voltage (min.)
3 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
280 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
14-day return policy included
Highlights & Details
Crydom Solid State SIP PCB Load Relay
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
D2W202F
- Switching type
Zero crossing
- Control voltage (min.)
3 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
3 - 32 V DC
- Surge current (max.)
60 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
2 A
- Output voltage (max.)
280 V AC
- Max. output current
2 A
- Min. temperature
-30 °C
- Max. temperature
+80 °C

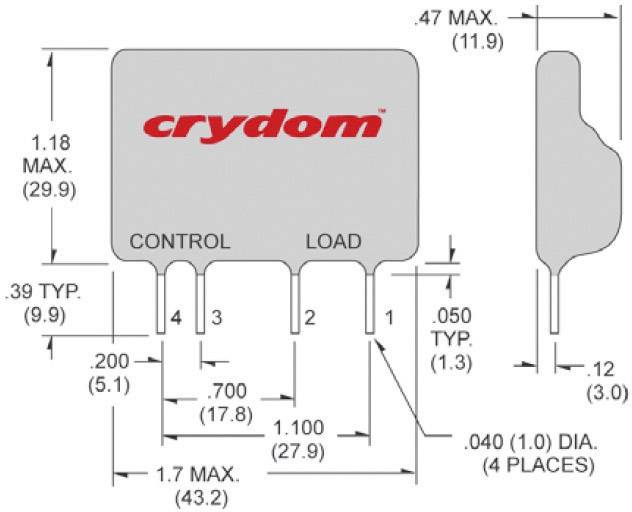

- Width
29.9 mm
- Height
11.9 mm
- Length
43.2 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
Switches at voltage zero.
- Type
D2W202F
- Ambient temperature
-30 - +80 °C
- Current load
2 A
Documents & Downloads
Datasheet
Datasheet 186635 Crydom Solid State SIP PCB Load Relay
User & Safety Instructions
User & Safety Instructions 186635 Crydom Solid State SIP PCB Load Relay
Description
The epoxy-coated casing provides excellent protection against environmental influences. Optically separated SCR output The pinning is compatible with Series 6 and OAC I / O modules.
Hints
Approvals UL, CSA.
