Name: Deditec NET-DEV-OPT-IN8-REL8 NET-DEV-OPT-IN8-REL8 IO module Serial interface, CAN, Ethernet, USB No. of digital outputs:
Brand: Deditec
SKU: 2149456
Availability: BackOrder

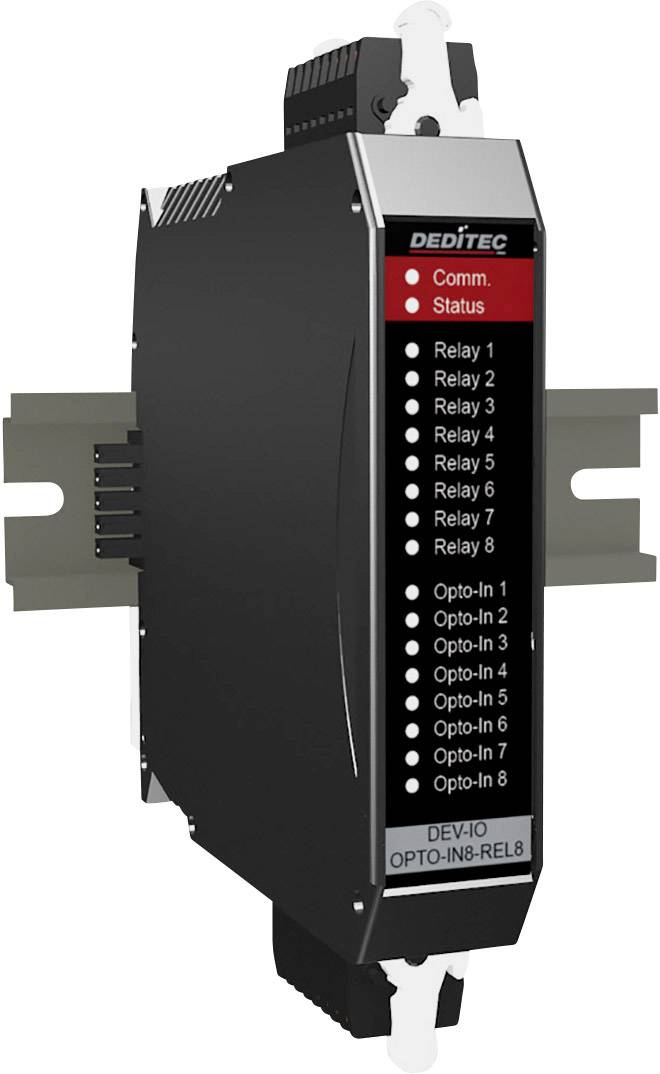

Black electronic device for DIN rail mounting with red and green status LEDs. Indicates various relays as active or inactive.

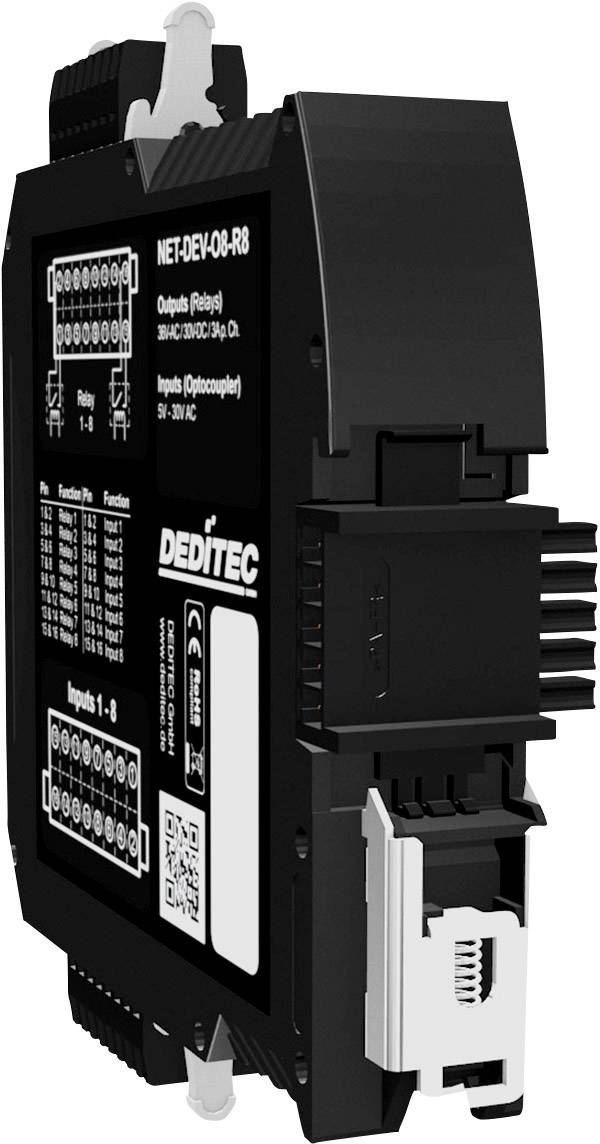

Electronic module for control in industrial applications, with multiple connection options and LED indicators for status monitoring.

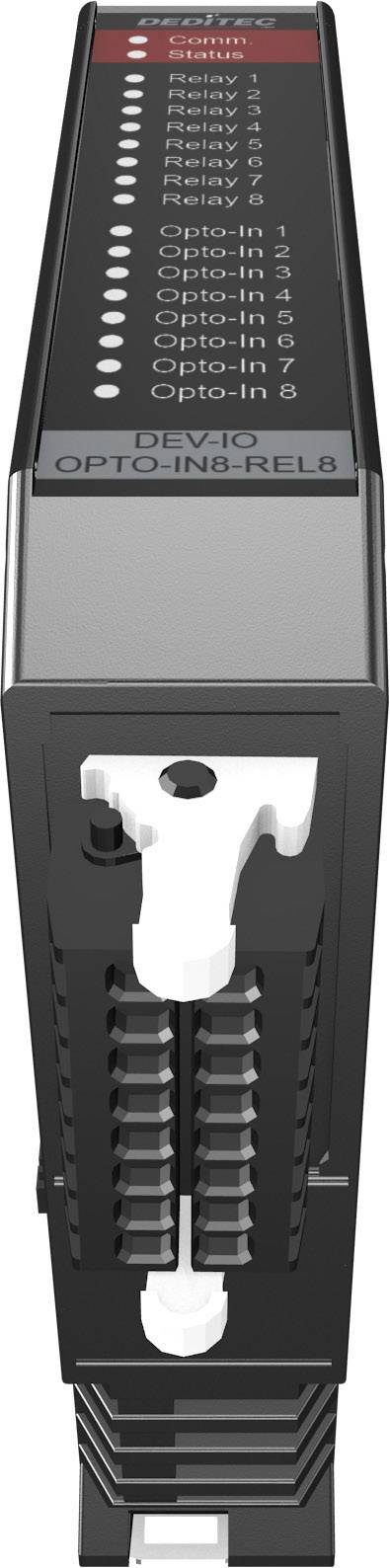

'Opto-IN6-REL8' label on a black electronic module with multiple circular indicator lights and switches for various 'Option' settings.

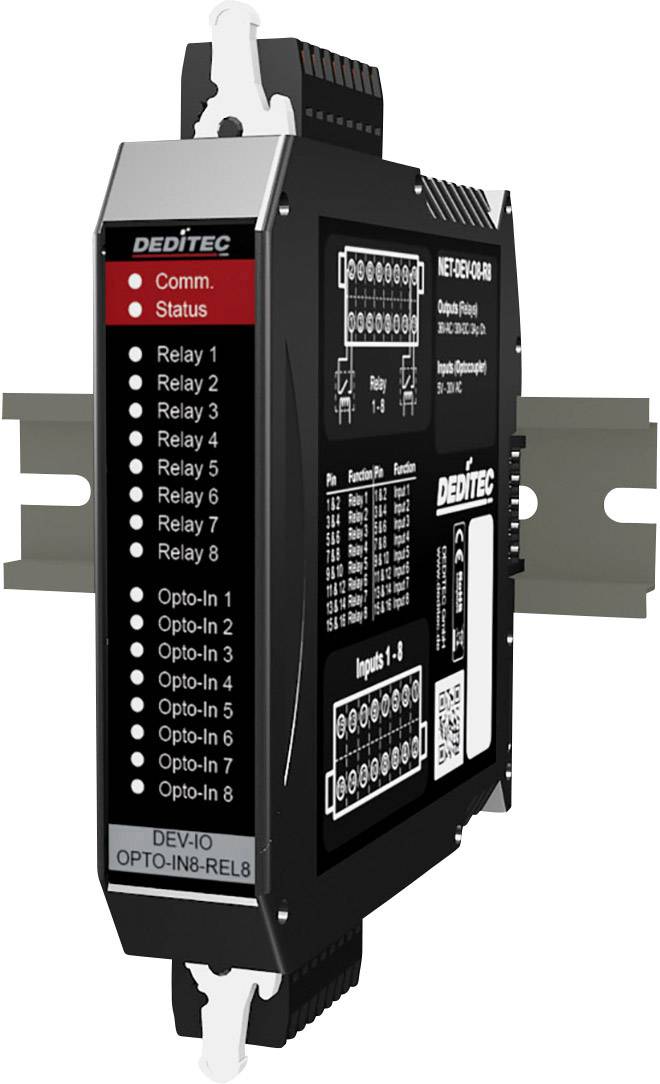

The image shows an electronic device for DIN rail mounting with multiple inputs and outputs, labelled with 'Relay' and 'Opto In'.

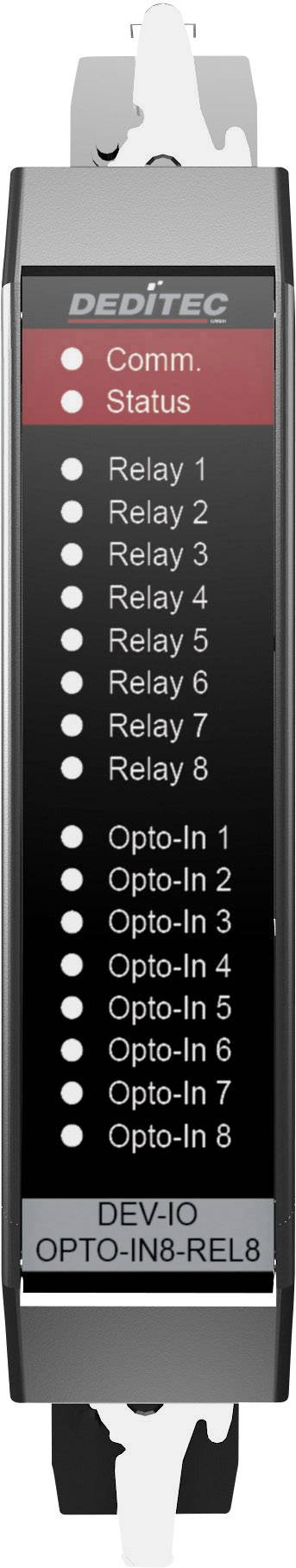

Housing with status indicator LEDs for communication and relay or opto-input/output interfaces, marked with 'DEDITEK DEV-IO OPTO-IN8-REL8'.

1/6

Product type

IO module

Interfaces

Serial interface

CAN

Ethernet

USB

No. of relay outputs

Type

NET-DEV-OPT-IN8-REL8

Operating voltage

7 V

24 V

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 379.00 / piece)

€ 379.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

NET-DEV-OPT-IN8-REL8

8 optocoupler inputs
15 - 24V AC/DC switching voltage (opt. 5 - 15V AC/DC)
16-bit counter per channel (up to 10kHz) with latch function
Filter for counter / flip-flops adjustable from 5ms - 255ms
8 relay outputs
AC SWITCHING VOLTAGE (36V / 3A / 78W)
DC SWITCHING VOLTAGE (30V / 3A / 60W)
Timed switching operations
Timeout protection shutdown
Galvanically isolated via relay/optocoupler
LED status display for each input/output channel
Suitable for DIN rail mounting

Technical specifications

Product type: IO module

Interfaces: Serial interface
CAN
Ethernet
USB

Type: NET-DEV-OPT-IN8-REL8

Operating voltage: 7 V
24 V

Operating voltage: V/DC

Height: 114.5 mm

Length: 99 mm

Width: 22.5 mm

Max. modules: 64

No. of digital inputs: 0

No. of digital inputs: 8

No. of digital outputs: 8

No. of relay outputs: 8

Dim: (L x W x H) 99 x 22.5 x 114.5 mm

Control LEDs: Yes

Manufacturer part #: NET-DEV-OPT-IN8-REL8

Fitting type (details): DIN rail (TS 35)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2149456 Deditec NET-DEV-OPT-IN8-REL8 NET-DEV-OPT-IN8-REL8 IO module Serial interface, CAN, Ethernet, USB No. of digital outputs:

Description

The basis of a NET module is a NET CPU BASE with Ethernet/USB interface or a NET CPU-PRO-CS with Ethernet/USB/CAN/serial interface.
Up to 64 different NET-DEV-I/O modules can be combined and connected to these NET-CPU base modules in any way.
Analogue and digital modules can be combined.
Depending on the application, digital and analogue modules can be combined. Module combinations with relays, power relays and A/D inputs as well as temperature recording are therefore no problem. The complete module is mounted on the DIN rail.
Service-friendly change of a single module is possible
Even during operation, individual modules can be replaced or changed. This allows a service-friendly upgrade or the replacement of modules. The next time the entire module is restarted, the NET-CPU interface first scans all NET-DEV I/O modules and thus records the overall module configuration.
