Buy Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

A black laptop power adapter with a long cable and a DC connector, suitable for electronic devices.

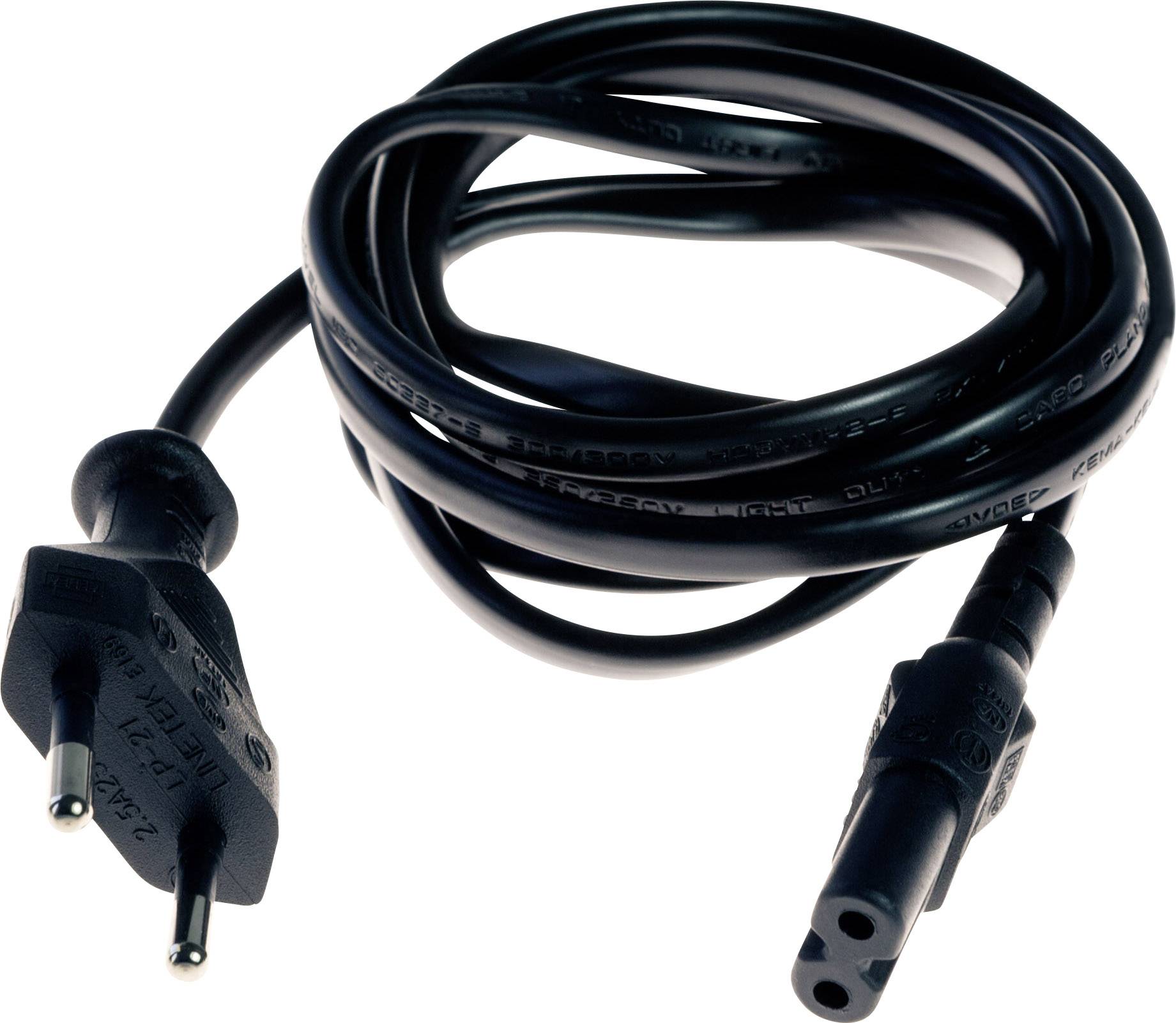

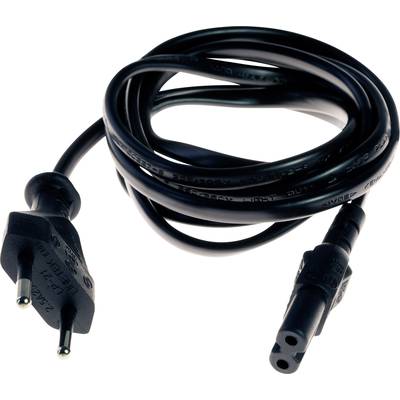

A black network cable with a two-pin Euro plug and a three-pin device plug, coiled on a surface.

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 67.22 / piece)

€ 67.22

plus VAT.

Report legal concerns

Highlights & Details

Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

Protection class 2
Approved for medical applications
EN 60601-1-2 (Edition 4.0)
2 x mop
High degree of efficiency
12 V DC
7 A
84 W power
Short circuit and over load protection with automatic restart
Safety according to TÜV, CB, UL. PSE

Technical specifications

Product type: Adapter

Used at: Indoors

Max. output current: 7 A

Output current (max.) - rounded: 7 A

Output: 5.5/2.1 coaxial connector

Output voltage: 12 V DC

Input voltage: 110 V AC
230 V AC

No. of outputs: 1 x

EuP Status: Step 2

Weight: 450 g

: 90 W

PSU features: Regulated

Type: Medical desktop power supply

Width: 64 mm

Height: 34.9 mm

Length: 151 mm

Type: ATM 090T-A120

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Input voltage

Output

No. of outputs

Used at

Output current (max.) - rounded

Product type

Output voltage

Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

Item no:1762781

This article

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

Indoors

7 A

Adapter

12 V DC

Dehner Elektronik 26498 Bench PSU (fixed voltage) 12 V DC 5000 mA 65 W

Item no:1196262

90 V AC264 V AC

5.5/2.1 coaxial connector

5 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 065T-P120 Bench PSU (fixed voltage) 12 V DC 5000 mA 65 W

Item no:1196264

90 V AC264 V AC

5.5/2.1 coaxial connector

1 x

5 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 160-P120 Bench PSU (fixed voltage) 12 V DC 12500 mA 160 W

Item no:1196271

90 V AC264 V AC

Mini DIN plug (4-pin)

12.5 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 090T-A190 Adapter 19 V DC 4.7 A 90 W Regulated

Item no:1762782

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

Indoors

4.7 A

Adapter

19 V DC

Dehner Elektronik ATM 090T-A240 Adapter 24 V DC 3.75 A 90 W Regulated

Item no:1762783

110 V AC230 V AC

5.5/2.1 coaxial connector

1 x

Indoors

3.75 A

Adapter

24 V DC

Dehner Elektronik 28207 Bench PSU (fixed voltage) 12 V DC 10 A 120 W Regulated

Item no:1900659

100 V AC

Mini DIN plug (4-pin)

1 x

Indoors

10 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 036T-P240 Bench PSU (fixed voltage) 24 V DC 1.5 A Regulated

Item no:1923279

110 V AC240 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

1.5 A

Bench PSU (fixed voltage)

24 V DC

Dehner Elektronik ATM 036T-A120 Bench PSU (fixed voltage) 12 V DC 3.0 A 36 W Regulated

Item no:1923280

110 V AC240 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

3 A

Bench PSU (fixed voltage)

12 V DC

Dehner Elektronik ATM 120T-P240 Bench PSU (fixed voltage) 24 V DC 5 A Regulated

Item no:1923281

110 V AC240 V AC

5.5/2.1 coaxial connector

1 x

IndoorsMains socket

5 A

Bench PSU (fixed voltage)

24 V DC

Documents & Downloads

Datasheet

Datasheet 1762781 Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

User & Safety Instructions

User & Safety Instructions 1762781 Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

Warranty Terms

Warranty Terms 1762781 Dehner Elektronik ATM 090T-A120 Adapter 12 V DC 7 A 90 W Regulated

Description

Power supply of Dehner Elektronik for medical applications. Sturdy, reliable and efficient, with switched-mode power technology in a compact design.

This text is machine translated.

Features

DC-DC Plug 5.5 mm x 2.1 mm, polarity + inside

Scope of delivery

Power cord
User manual
